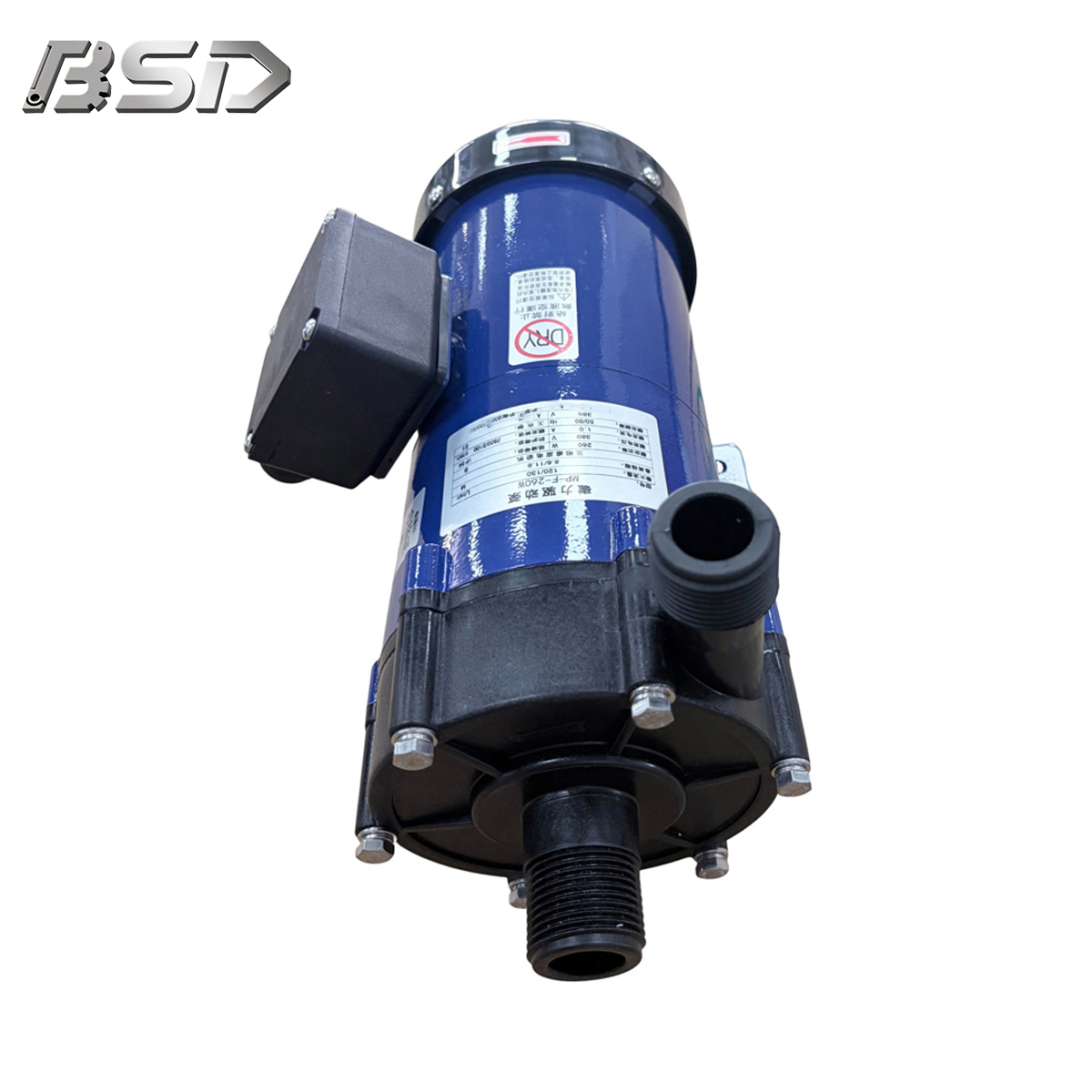

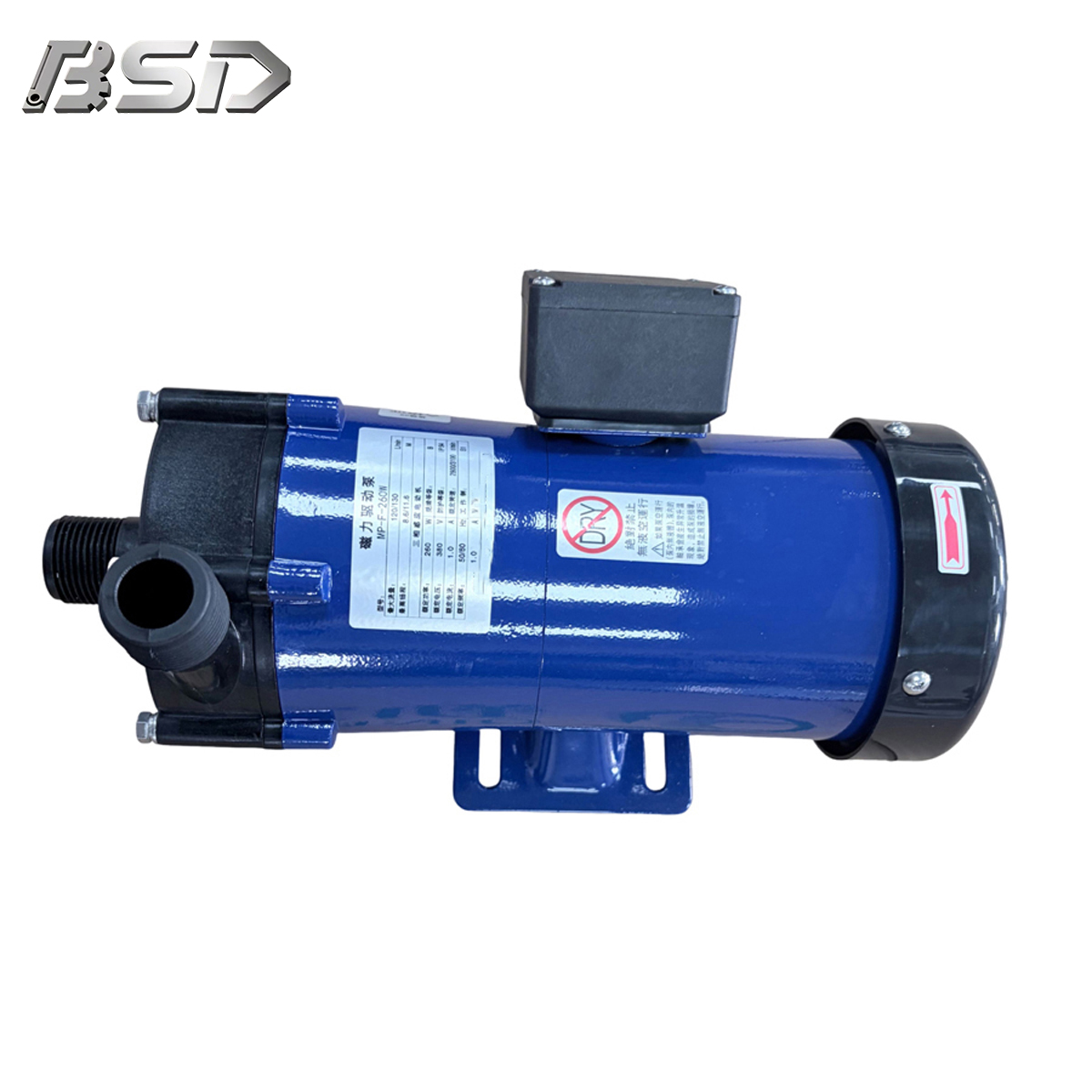

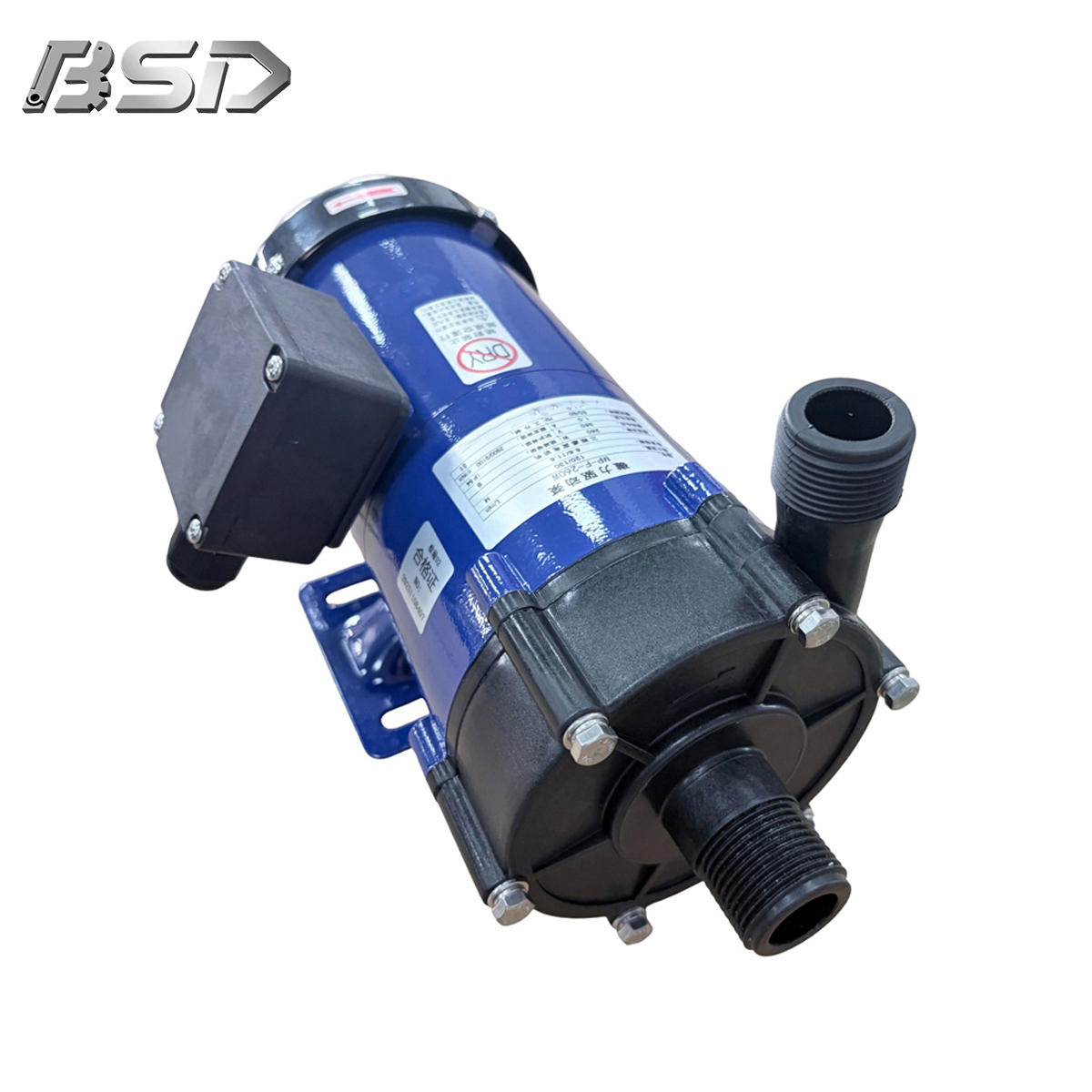

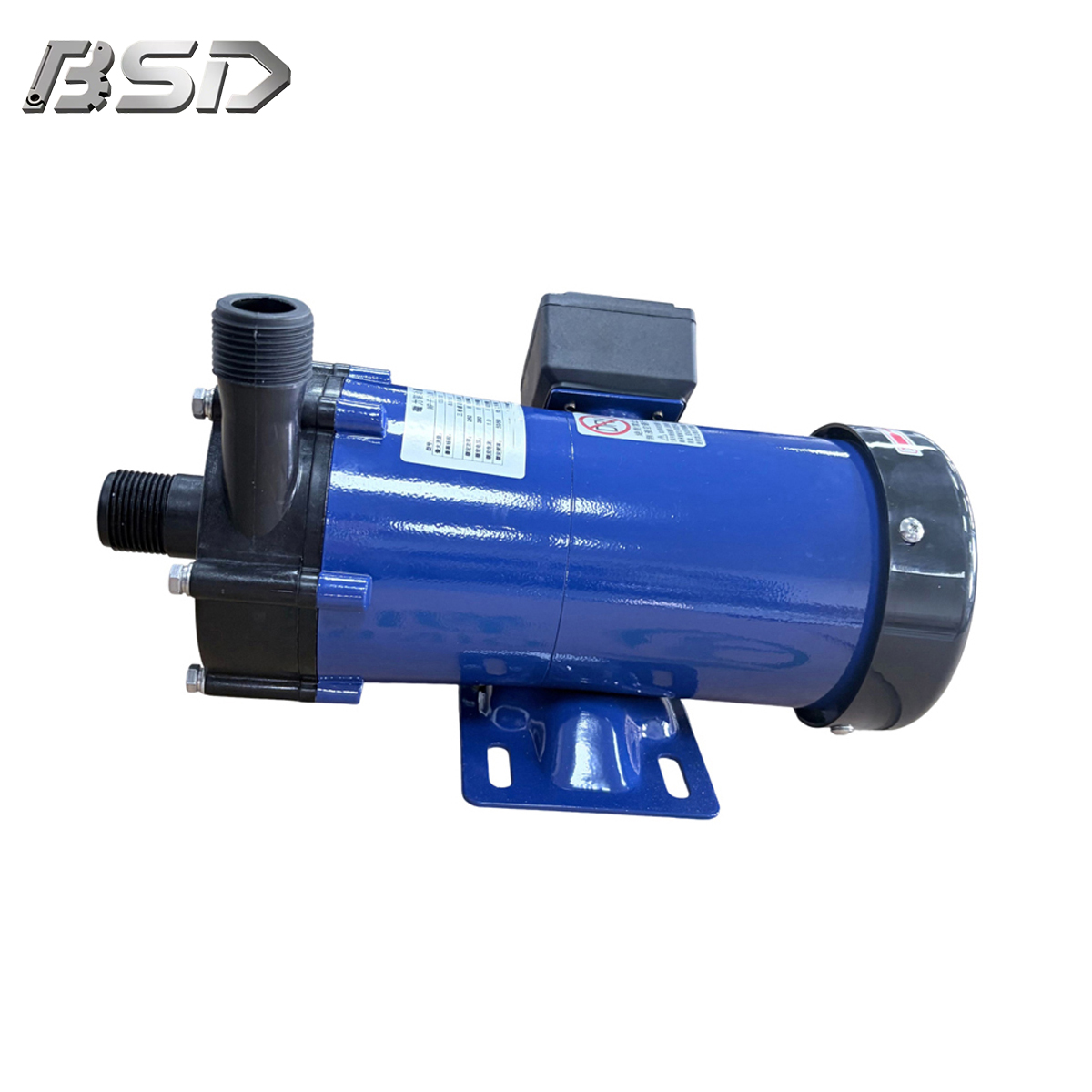

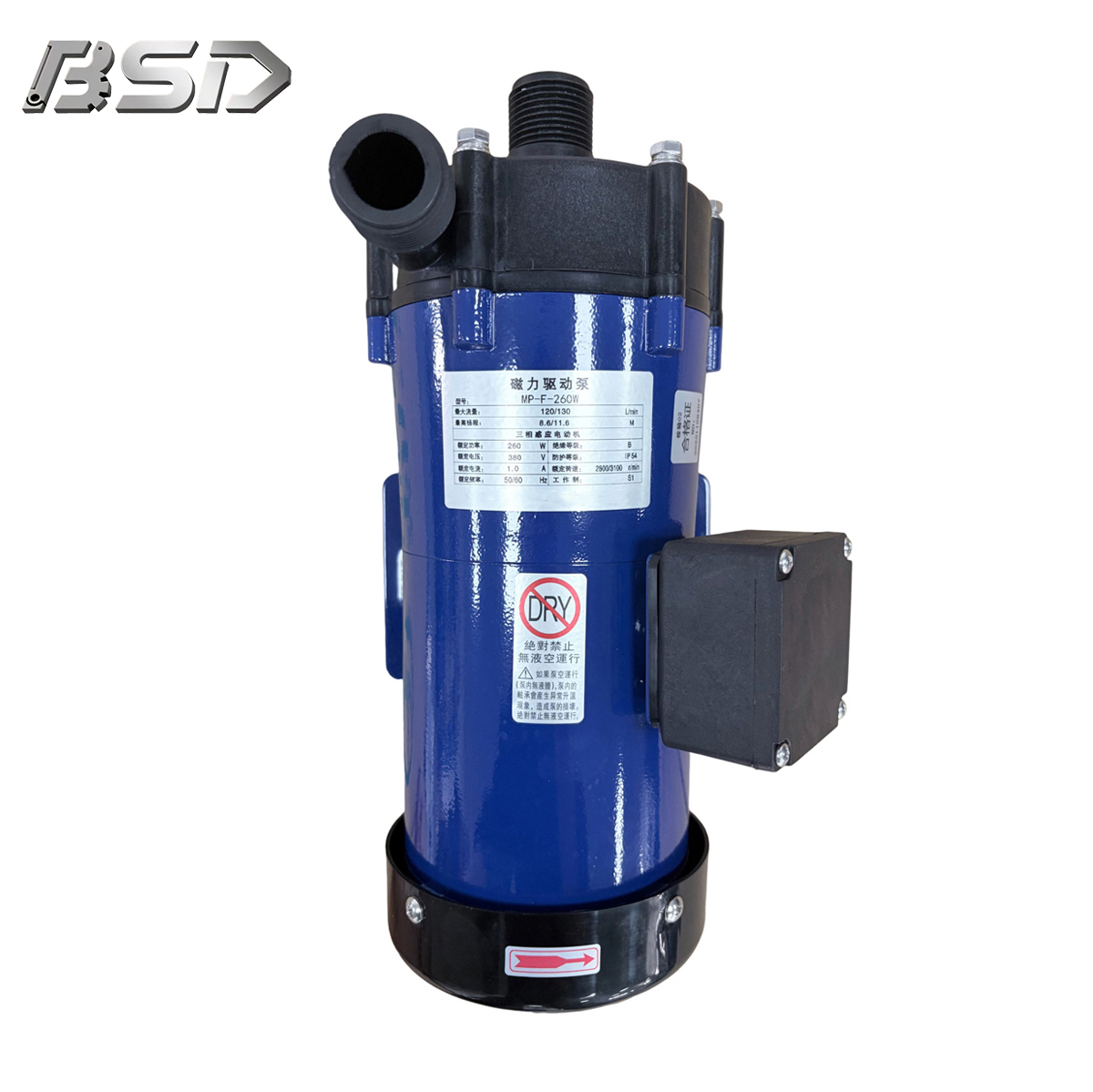

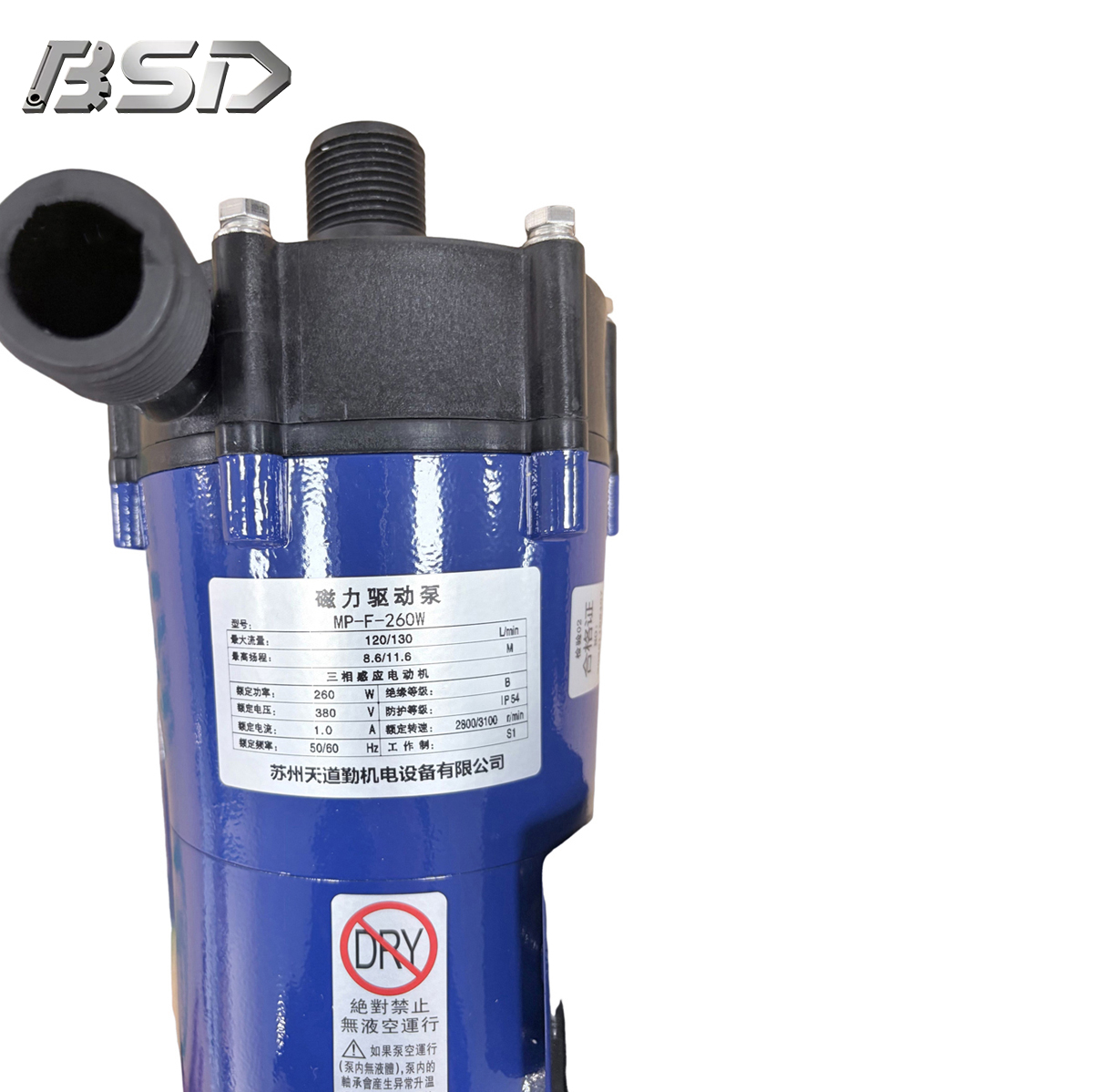

Sealless Plastic Magnetic Drive Pump Acid-Base Delivery

Product Overview

The sealless plastic magnetic drive pump (MP Series) from Suzhou BSD Environmental Protection Technology is a premium leak-proof solution designed for safe and reliable transfer of acid-base chemical liquids. Engineered with advanced magnetic coupling technology, this pump eliminates the need for traditional mechanical seals, completely preventing chemical leakage and environmental contamination. It is the ideal choice for manufacturing facilities and process plants that handle corrosive fluids, offering exceptional performance in low-to-medium flow and head applications.

Key Advantages

100% Leak-Proof Magnetic Drive Design

The core advantage of this acid base chemical transfer pump is its sealless construction. The magnetic coupling transmits power without direct contact between the motor and the impeller, creating a hermetically sealed system that eliminates all potential leakage points. This design protects workers from exposure to hazardous chemicals and ensures compliance with environmental regulations.

Superior Corrosion Resistance

The pump head is available in multiple corrosion-resistant materials to match different chemical properties: PP (Polypropylene), GFRPP (Glass Fiber Reinforced Polypropylene), PVDF (Polyvinylidene Fluoride), and CFRETFE (Carbon Fiber Reinforced Ethylene Tetrafluoroethylene). These materials provide excellent resistance to a wide range of acids, alkalis, and organic solvents.

Compact & Energy-Efficient

With a compact footprint and lightweight design, this leak-proof magnetic pump is easy to install in tight spaces. The high-efficiency three-phase induction motor reduces energy consumption, lowering operational costs over the pump's lifespan. It operates with low noise and vibration, creating a safer and more comfortable working environment.

Low Maintenance Requirements

The sealless design eliminates the need for regular seal replacement, significantly reducing maintenance time and costs. The pump has fewer moving parts, minimizing wear and tear and extending the service life of the equipment.

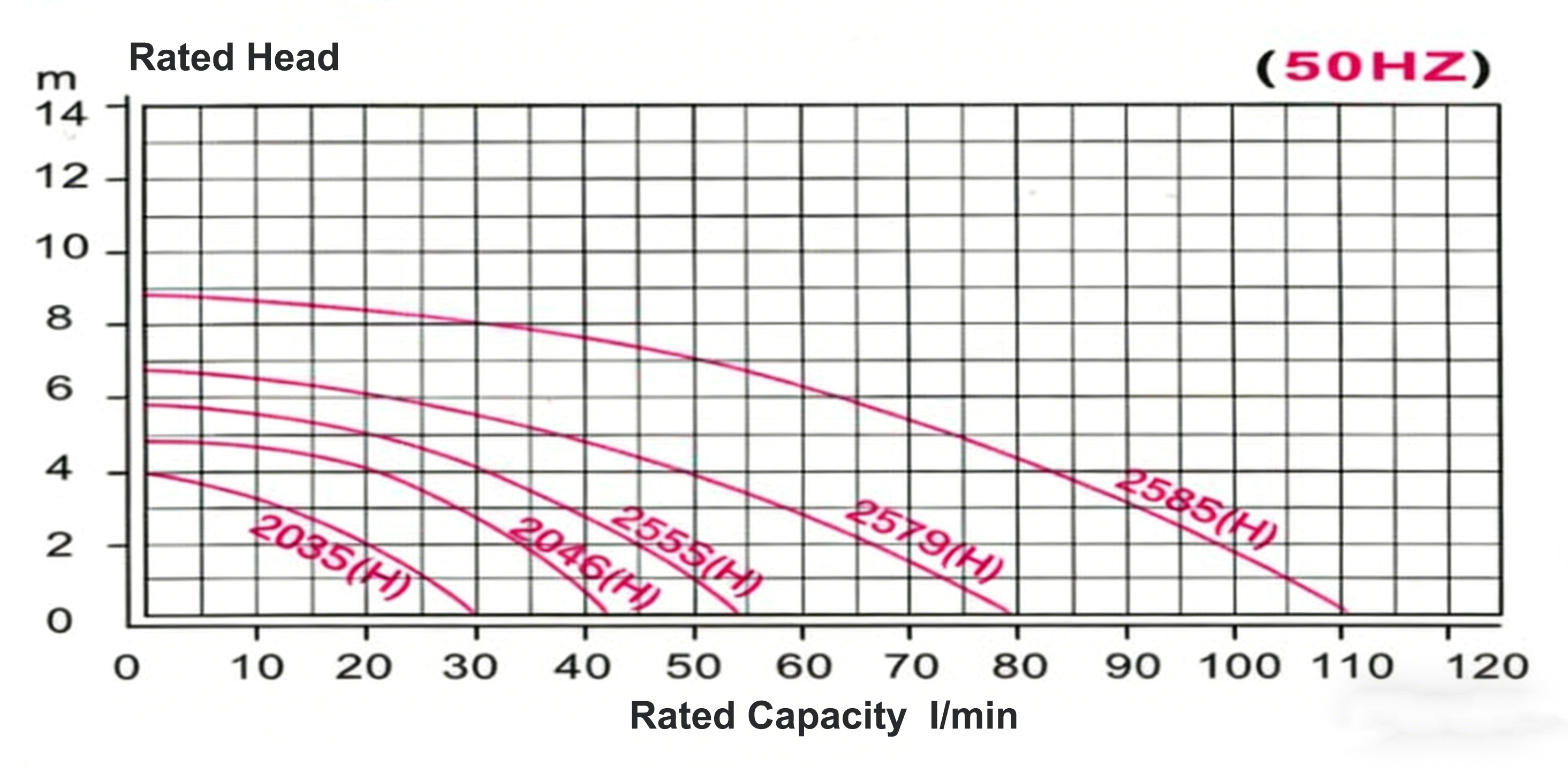

Technical Specifications

Applications

This chemical resistant magnetic pump is widely used in various industries for transferring corrosive liquids:

Electroplating and surface treatment processes

PCB and semiconductor manufacturing

Wastewater and waste gas treatment systems

Solar photovoltaic production

Medical and pharmaceutical industries

Chemical processing and coating applications

Customization Services

We offer comprehensive customization options to meet specific process requirements:

Custom pump head materials based on chemical compatibility

Multiple voltage and frequency options (110V/1-phase, 220V/1-phase, 208-415V/3-phase)

Different inlet/outlet connection types (socket type, sleeve type)

Custom pump shaft and elastomer materials for special fluids

Color and branding customization for equipment integration

Quality Assurance & After-Sales Service

All our plastic magnetic drive pumps undergo rigorous quality testing before shipment, including pressure testing, performance testing, and leakage testing. We provide a 12-month warranty period for all products. Our experienced technical team offers prompt after-sales support, including installation guidance, troubleshooting, and spare parts supply. We are committed to ensuring the long-term reliable operation of your equipment.

FAQ

What materials are available for the pump head?

We offer four pump head materials: PP, GFRPP, PVDF, and CFRETFE. Our technical team can recommend the most suitable material based on your specific chemical liquid and operating temperature.

Can this pump run dry?

No, dry running is strictly prohibited. Running the pump without liquid will cause abnormal heating of the bearings and damage the pump.

What is the maximum operating temperature?

The maximum operating temperature depends on the pump head material: PP/GFRPP up to 75°C, PVDF up to 90°C, and CFRETFE up to 100°C.
