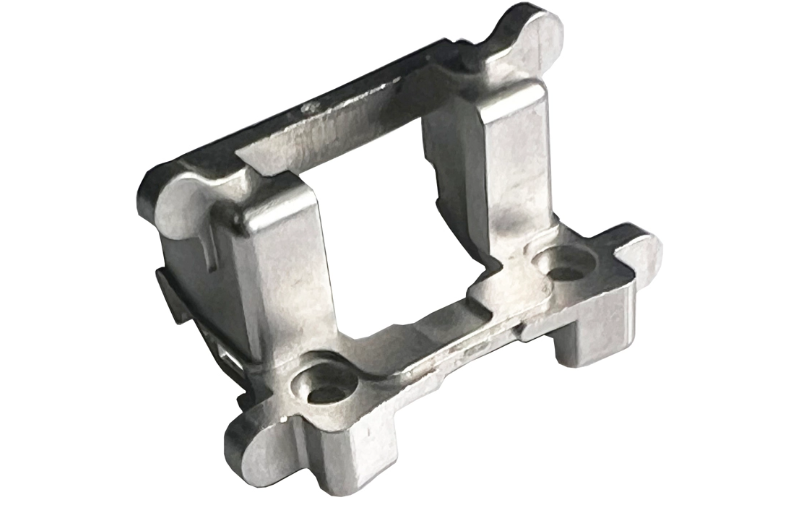

The MIM precision frame is a high-performance metal component manufactured using advanced Metal Injection Molding (MIM) technology, specifically designed for medical device assembly and other high-precision applications. Combining the design flexibility of plastic injection molding with the structural strength of dense metal, this metal injection molding frame solves the limitations of traditional machining processes, enabling the production of complex, miniaturized parts with tight tolerances at scale. As a trusted supplier of medical device MIM components, we deliver parts that meet the strictest quality and biocompatibility standards, ensuring reliable performance in critical healthcare applications.
Our high precision MIM part achieves dimensional tolerances as tight as ±0.01 mm for critical features, with overall shrinkage controlled to less than 0.5% during sintering. This exceptional precision ensures perfect fit and alignment in modular medical device assemblies, eliminating the need for costly secondary machining in most cases.
We offer a range of biocompatible materials suitable for medical applications, including 316L stainless steel (corrosion-resistant and widely used in surgical instruments), 17-4 PH stainless steel (high strength for load-bearing components), and titanium alloy (lightweight and excellent biocompatibility for implantable devices). All materials are certified to meet ISO 10993 and FDA biocompatibility standards.
MIM technology allows for the production of complex geometry metal frames with intricate interlocking features, mounting holes, and open-center designs that would be impossible or prohibitively expensive to manufacture using traditional machining. This integrated design reduces the number of assembly parts, simplifies production processes, and improves overall product reliability.
The sintering process densifies the metal powder to more than 97% of theoretical density, resulting in mechanical properties equivalent to wrought metal. This allows us to design lightweight frames without compromising strength, a critical advantage for portable medical devices and wearable technology.
Our automated production process ensures consistent quality across large production runs. Every part undergoes strict dimensional and material testing, eliminating variations that are common in manual machining operations.
We offer a full range of post-processing services to meet specific application requirements, including precision machining for ultra-critical features, passivation for enhanced corrosion resistance, anodizing, and black oxide finishing.
Parameter | Details |
|---|---|
Manufacturing Process | Metal Injection Molding (MIM) |
Standard Material Options | 316L Stainless Steel, 17-4 PH Stainless Steel, Titanium Alloy |
Critical Dimensional Tolerance | ±0.01 mm |
Overall Dimensional Tolerance | ±0.05 mm |
Sintered Density | >97% of theoretical density |
Surface Finish Options | As-sintered (Ra 1.6-3.2 μm), Polished, Passivated, Anodized, Black Oxide |
Maximum Part Size | 150 × 100 × 50 mm |
Production Volume Range | Prototyping (10-100 pieces), Low Volume (100-1000 pieces), Mass Production (>10000 pieces) |
Fatigue Life | >1 million cycles (depending on material and design) |
The biocompatible medical frame is ideal for a wide range of high-precision applications:
Medical Devices: Surgical instruments, diagnostic equipment, implantable devices, and drug delivery systems
Consumer Electronics: Smartphones, smartwatches, wireless earbuds, and camera modules
Industrial Robotics: Precision actuators, sensor frames, and robotic end effectors
Aerospace & Defense: Miniature avionics components, guidance systems, and communication devices
Automotive: Advanced driver assistance systems (ADAS) sensors and interior electronics
We work closely with our customers to develop custom MIM solutions tailored to their specific design and performance requirements:
Custom material formulations to meet unique mechanical or chemical properties
Collaborative design optimization to maximize MIM process efficiency and reduce costs
Custom surface finishes and coatings for enhanced performance or aesthetics
Custom tolerance specifications for ultra-critical applications
Complete assembly services including component integration and testing
Quality is our top priority, especially for medical device components. All our MIM precision frames undergo a comprehensive quality control process, including 100% dimensional inspection using Coordinate Measuring Machines (CMM) and 3D scanning, Archimedes' density testing, metallographic analysis, and functional validation. We are ISO 13485 certified for medical device manufacturing, ensuring compliance with global healthcare quality standards. We provide dedicated project management support from prototype development to mass production, and offer a 12-month warranty against manufacturing defects. Our technical team is available to assist with design for manufacturability (DFM) reviews and any post-delivery support needs.
Prototype lead times typically range from 2-4 weeks, depending on the complexity of the design and material requirements. We also offer expedited prototyping services for urgent projects.
Yes, we offer titanium alloy and 316L stainless steel materials that are certified to meet ISO 10993 and FDA biocompatibility standards for implantable medical devices.
Our minimum order quantity for mass production is 1000 pieces. For lower volume requirements, we offer low-volume production runs with competitive pricing.
Yes, we offer precision CNC machining services for features that require tighter tolerances than can be achieved through MIM alone. All secondary operations are performed in-house to ensure quality control.
