MPH

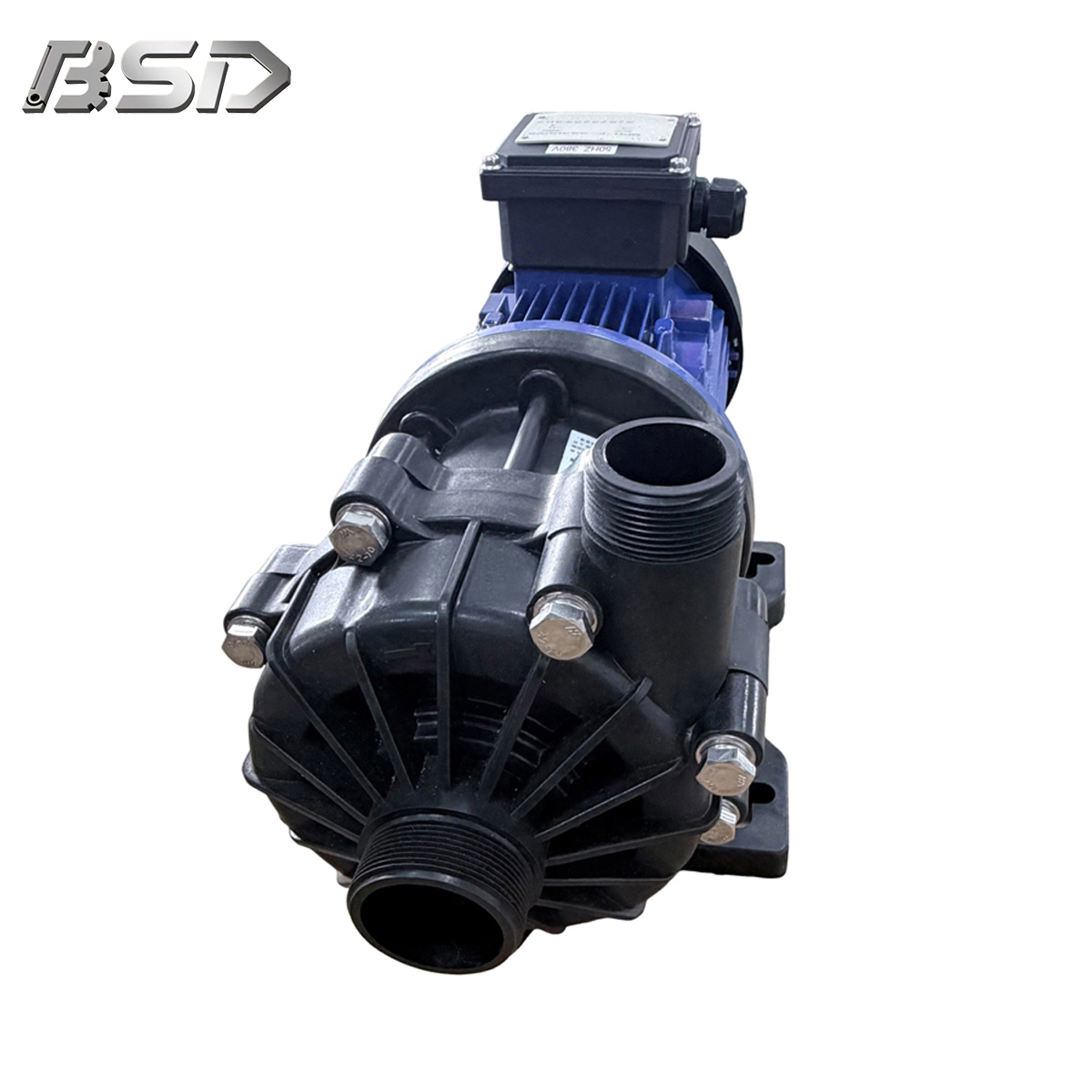

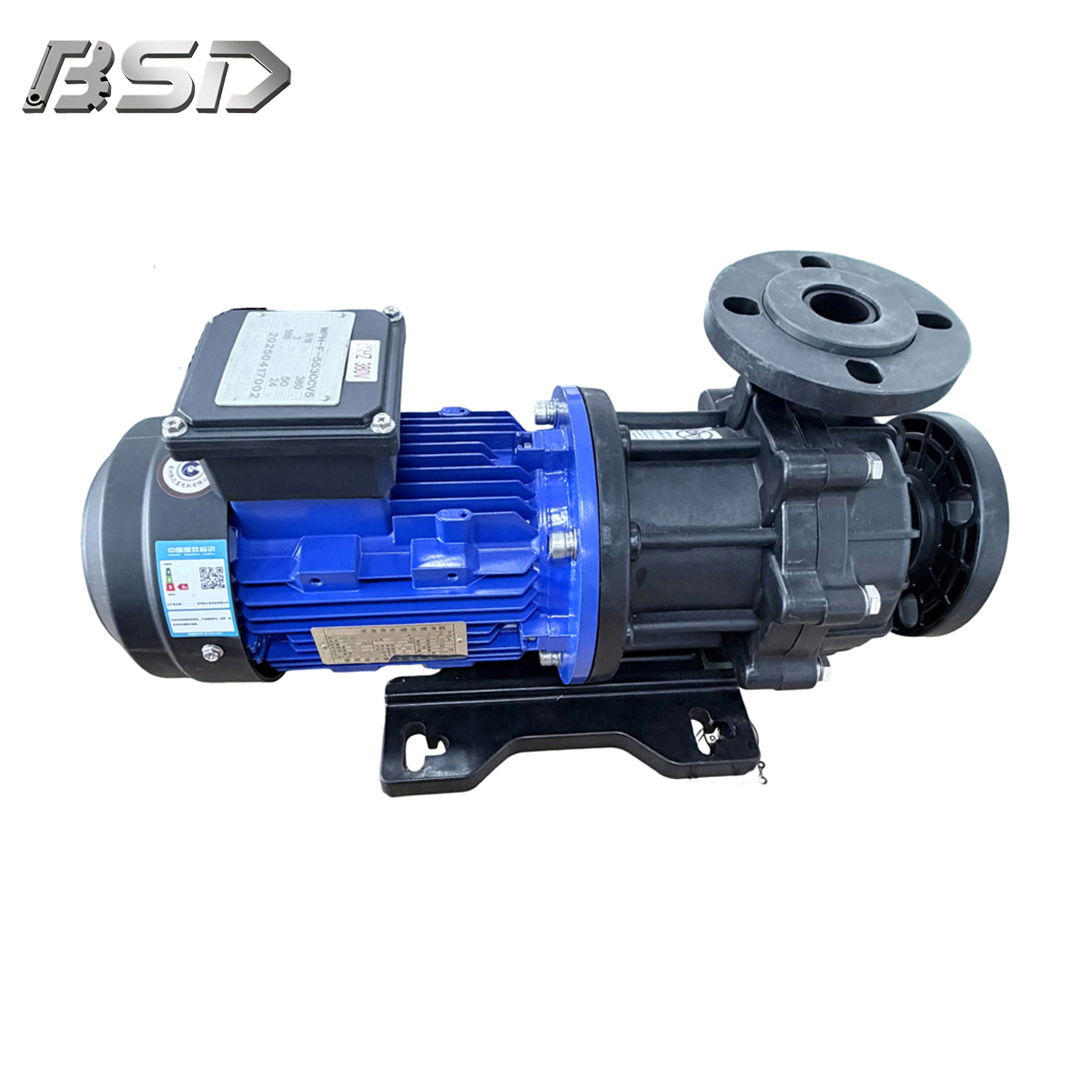

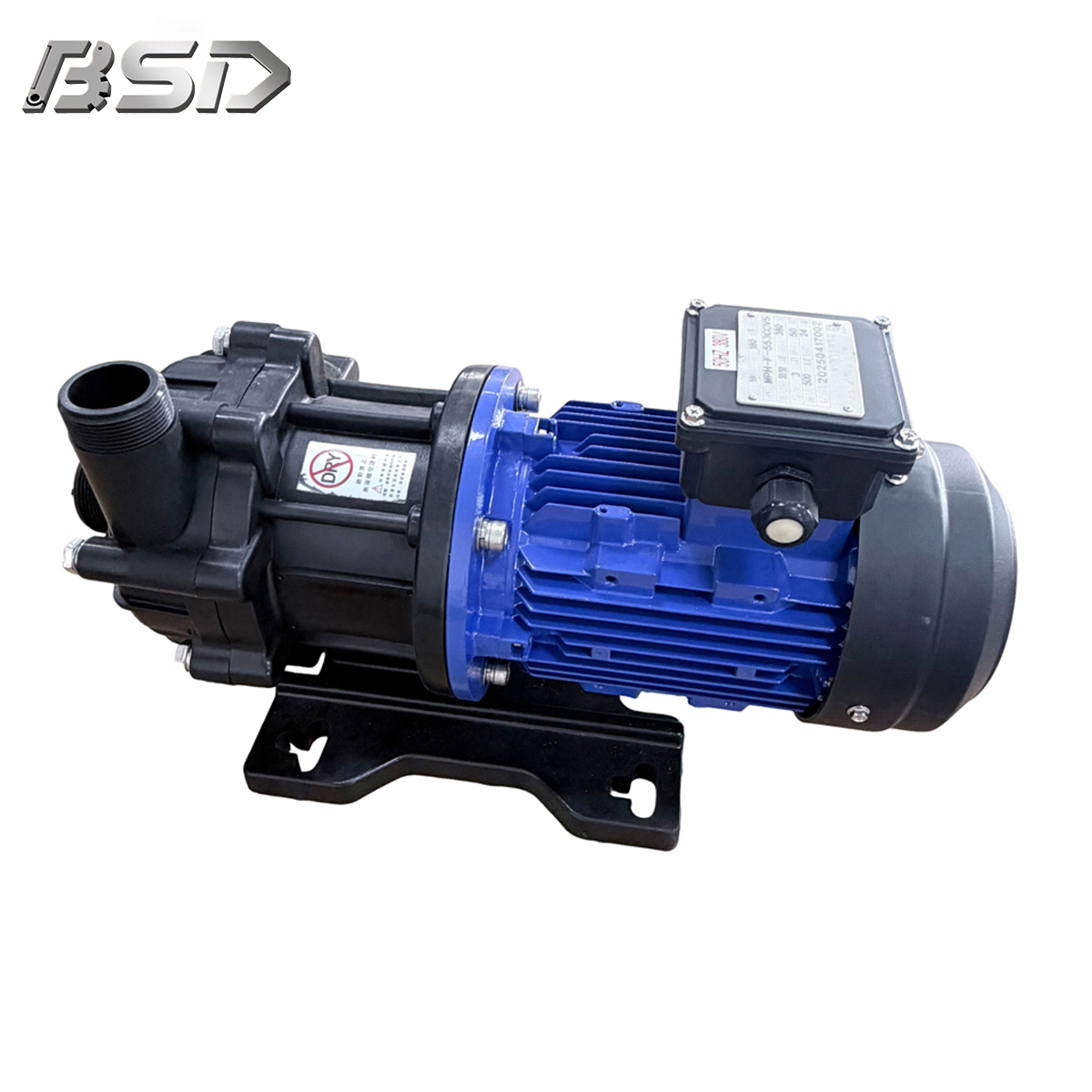

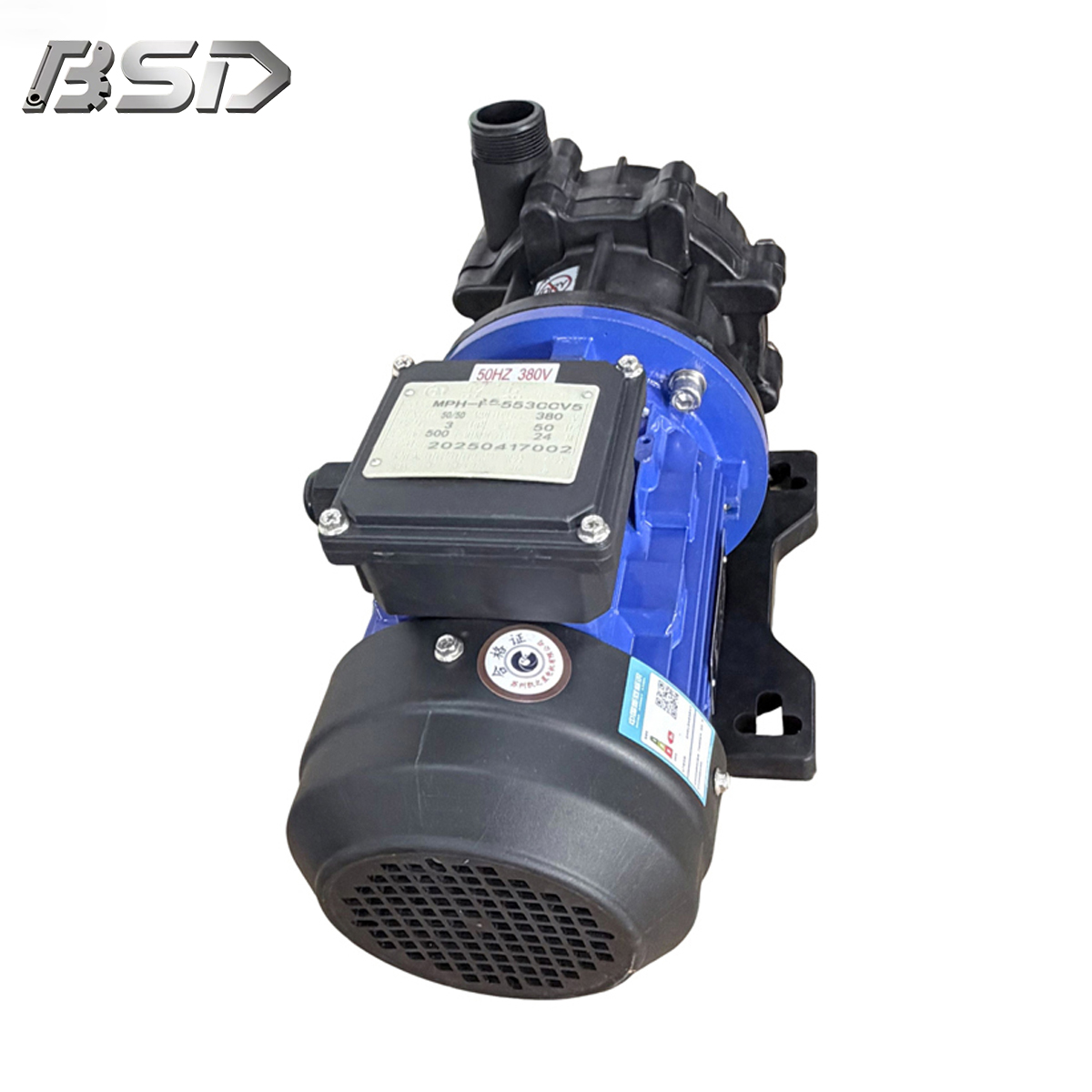

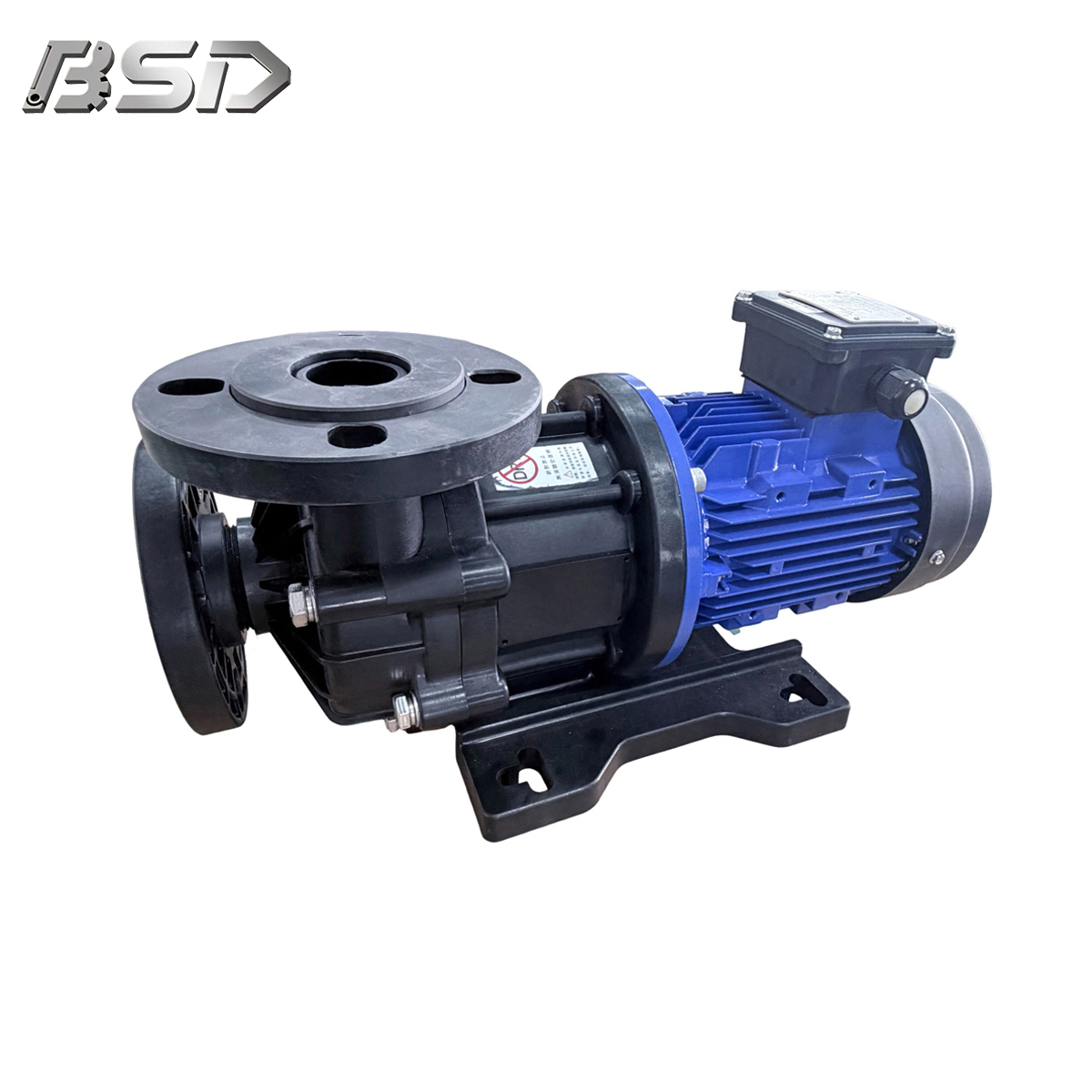

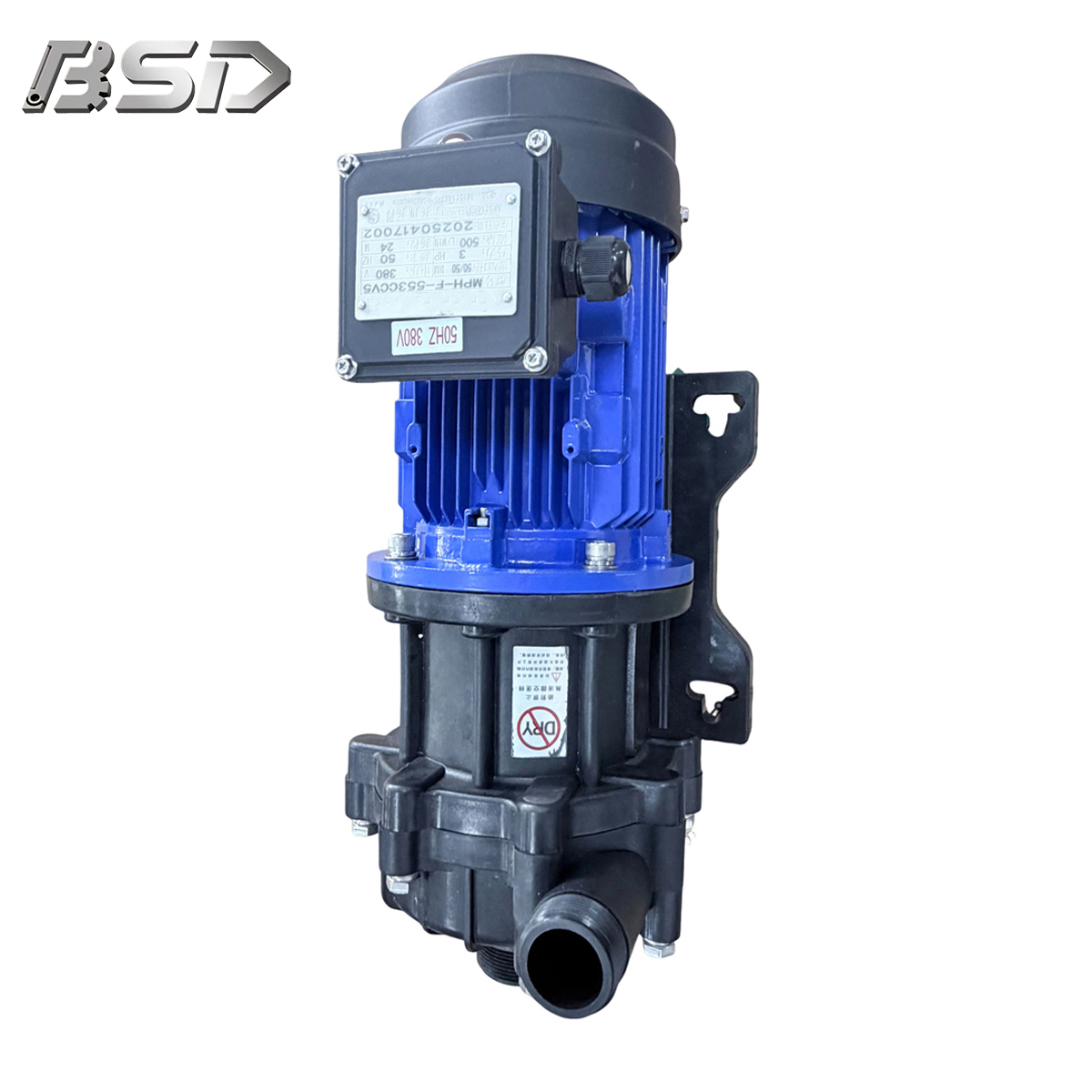

The heavy duty magnetic drive pump (MPH Series) from Suzhou BSD Environmental Protection Technology is a high-performance industrial fluid transfer solution designed for demanding applications. This pump combines robust construction with advanced magnetic drive technology to deliver high flow rates and high heads while maintaining 100% leak-free operation. It is specifically engineered to handle high-specific-gravity chemical liquids, making it the preferred choice for large-scale process plants and industrial facilities.

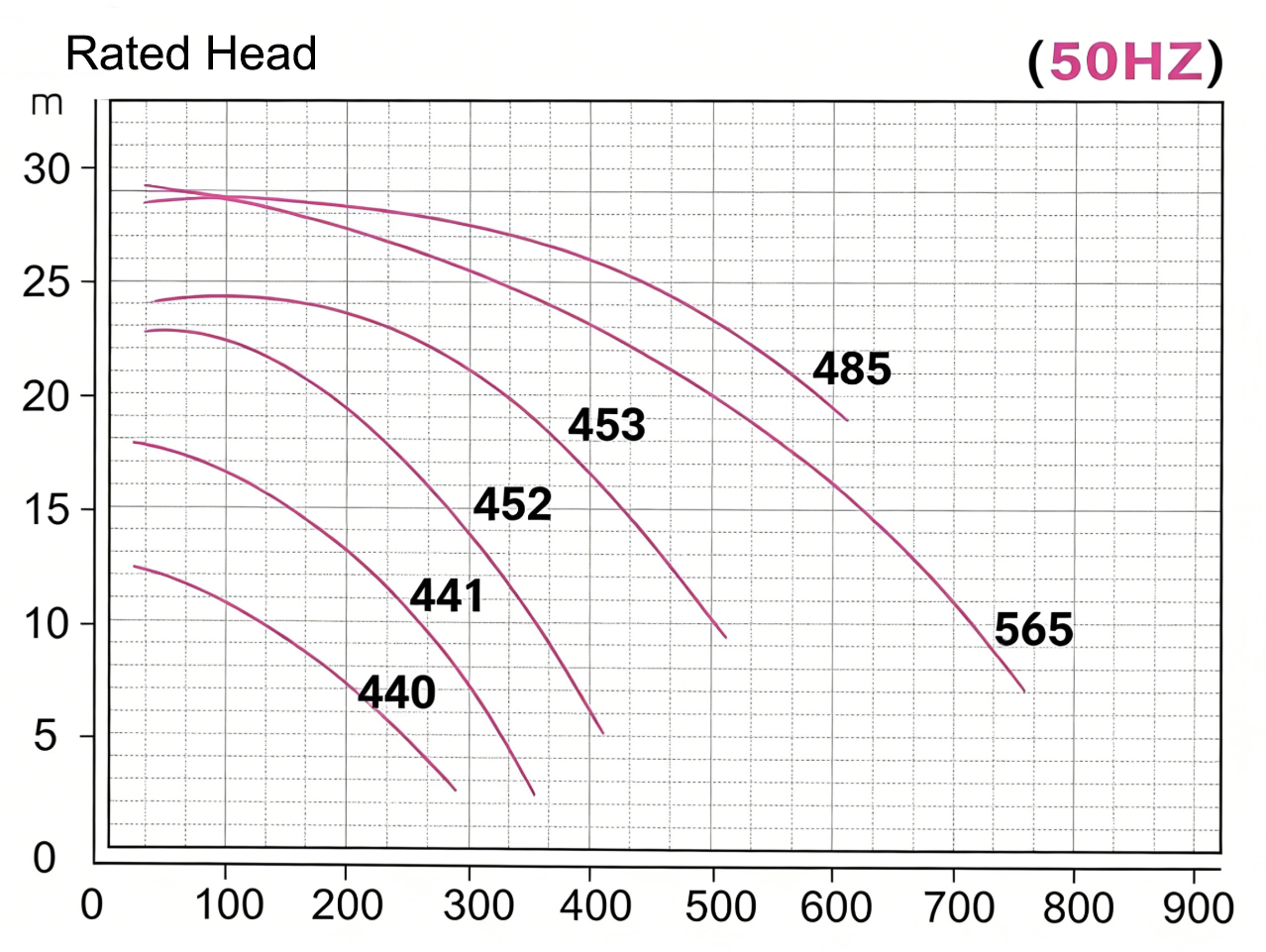

This industrial fluid transfer pump is designed for heavy-duty operations, delivering exceptional flow rates up to 730 L/min and heads up to 31 m. It can efficiently transfer large volumes of corrosive liquids over long distances and high elevations, meeting the requirements of large-scale industrial processes.
Built with durable materials and a reinforced structure, this high flow chemical magnetic pump can withstand harsh industrial environments. The pump components are precision-engineered to ensure long-term reliability even under continuous operation. The heavy-duty motor provides stable power output for demanding applications.
The pump is available in multiple corrosion-resistant materials, including PP, GFRPP, PVDF, and CFRETFE, making it compatible with a broad range of aggressive chemicals. It can handle liquids with specific gravities up to 2.0, making it suitable for transferring dense chemical solutions.
The sealless magnetic drive design eliminates chemical leakage, protecting workers and the environment. The pump is available with various explosion-proof motor options, ensuring safe operation in hazardous areas with flammable or explosive atmospheres.
Model Number | MPH |
|---|---|
Pump Head Material | PP: Polypropylene |
F: Glass Fiber Reinforced Polypropylene (GFRPP) | |
P: Polyvinylidene Fluoride (PVDF) | |
E: Carbon Fiber Reinforced Ethylene Tetrafluoroethylene (CFRETFE) | |
Motor Power | 0:1/2HP 1:1HP 2:2HP 3:3HP 5:5HP |
Inlet/Outlet | 44: 40*40 |
45: 40*50 | |
56: 50*65 | |
Spindle | C - Ceramic |
T - TITANIUM(Ti) | |
S - Silicon Carbide (SIC) | |
Pubber | V-VITON; E-EPDM; H-HFKM; A-AFLAS |
Frequency | 5: 50Hz; 6: 60Hz |
Voltage: | V38: 220V/380V/3 |
V44: 220V/440V/3 | |
V41: 208V/415V/3 | |
Specific Weight: | 50Hz----------A-1.2 B-1.5 C-2.0 |
60Hz----------A-1.2 E-1.5 F-2.0 | |
Motor Type | No indication - Totally enclosed indoor type |
S1- Totally enclosed outdoor type | |
S2 - EG3 safety increased explosion-proof type | |
S3 - D2G4 pressure-resistant explosion-proof type |

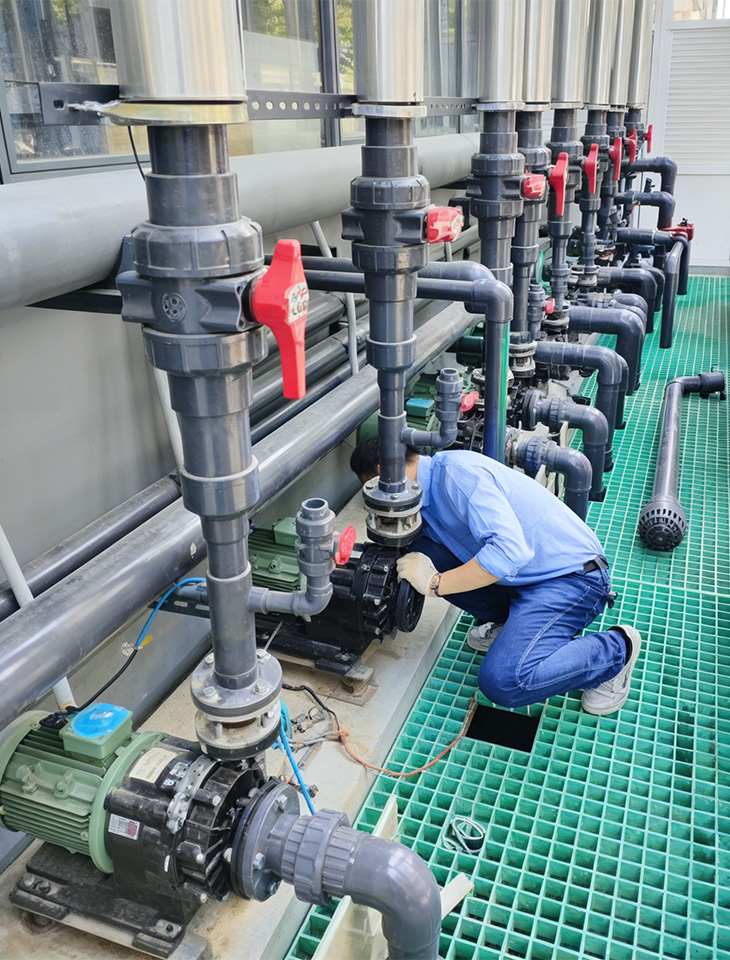

This corrosion resistant magnetic pump is ideal for the following heavy-duty industrial applications:
Fine chemical and petrochemical processing
Pharmaceutical and pesticide manufacturing
Steel and metallurgy industries
Nuclear power and thermal power plants

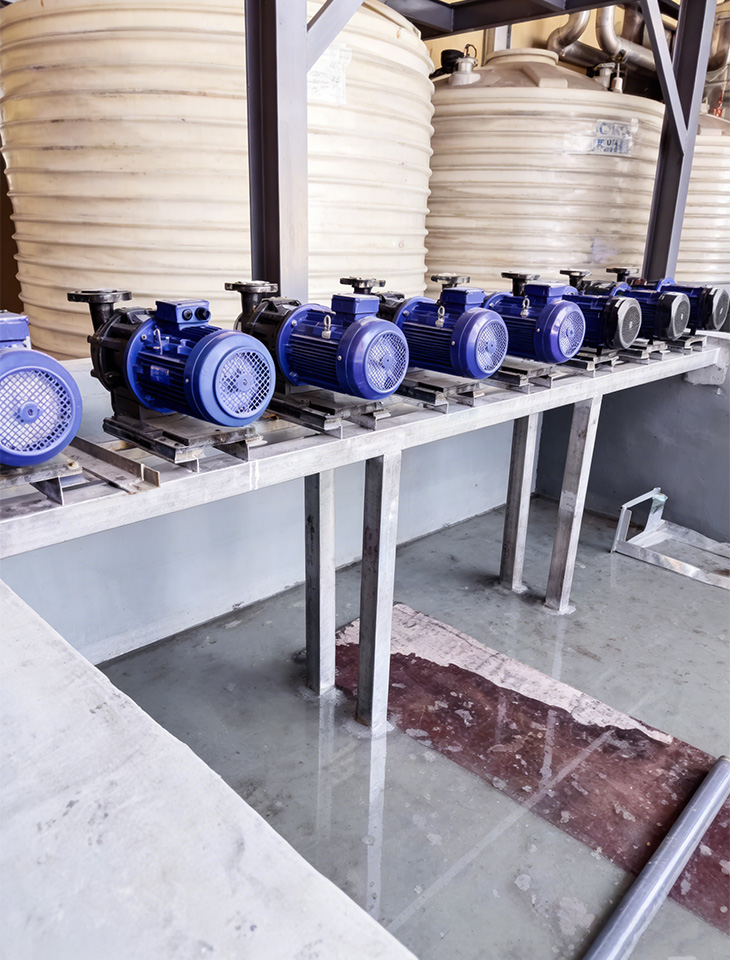

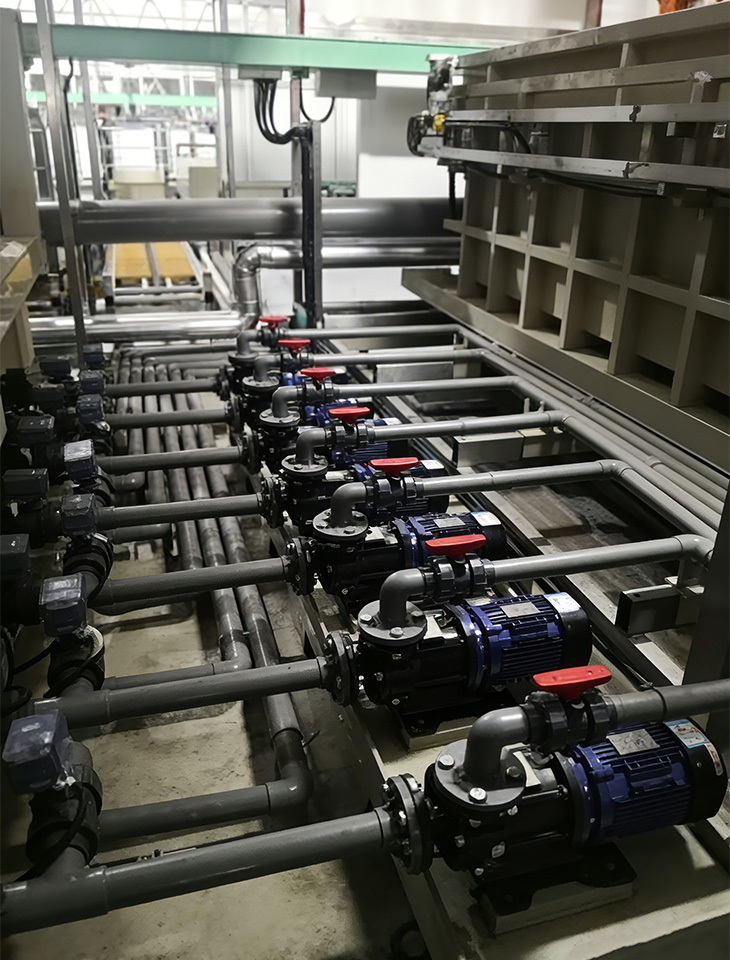

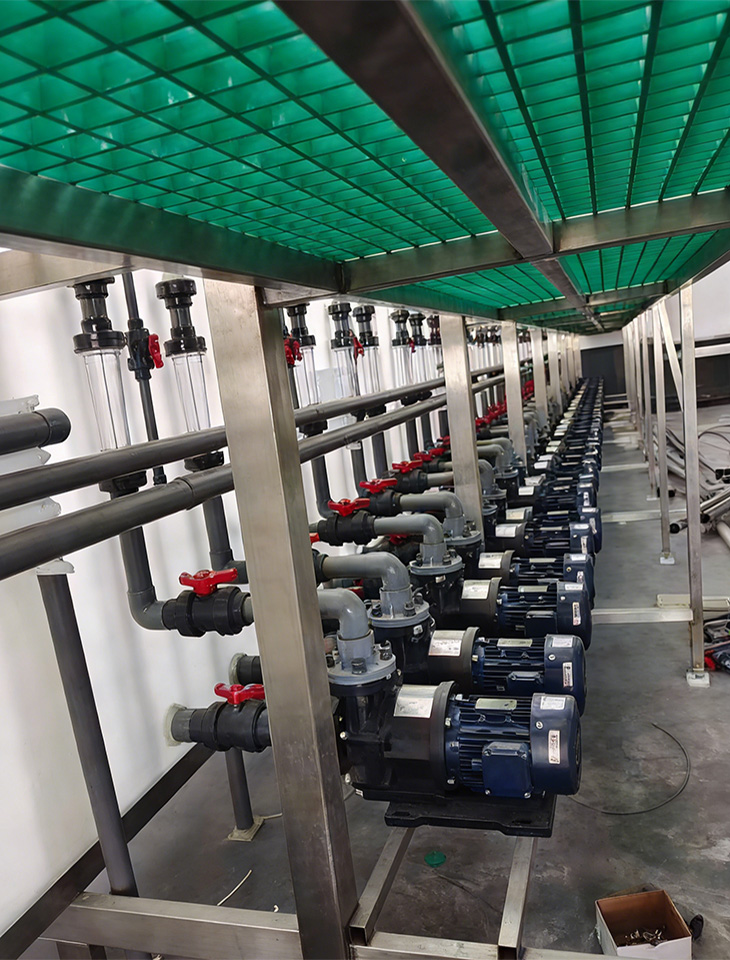

Large-scale electroplating and wastewater treatment
Acid pickling and polishing processes
 |  |
 |  |
We provide tailored solutions to meet the unique requirements of industrial applications:
Multiple explosion-proof motor options (EG3 safety increased, D2G4 pressure-resistant)
Custom pump configurations for high-temperature and high-pressure applications
Specialized materials for handling highly corrosive or abrasive fluids
Custom inlet/outlet sizes and flange specifications
Integrated control systems for automated operation
All our heavy duty magnetic pumps are manufactured in accordance with international quality standards. Each pump undergoes comprehensive performance testing and inspection to ensure it meets our strict quality requirements. We offer a 12-month warranty and provide lifetime technical support. Our after-sales team is available 24/7 to respond to your inquiries and provide on-site service when needed. We also maintain a large inventory of spare parts to ensure minimal downtime.
The MPH series can handle liquids with specific gravities up to 2.0 at 50Hz and up to 2.0 at 60Hz.
We offer EG3 safety increased explosion-proof motors and D2G4 pressure-resistant explosion-proof motors for use in hazardous areas.
The MP series is designed for low-to-medium flow and head applications, while the MPH series is a heavy-duty pump for high flow, high head, and high-specific-gravity liquid transfer.
