VA

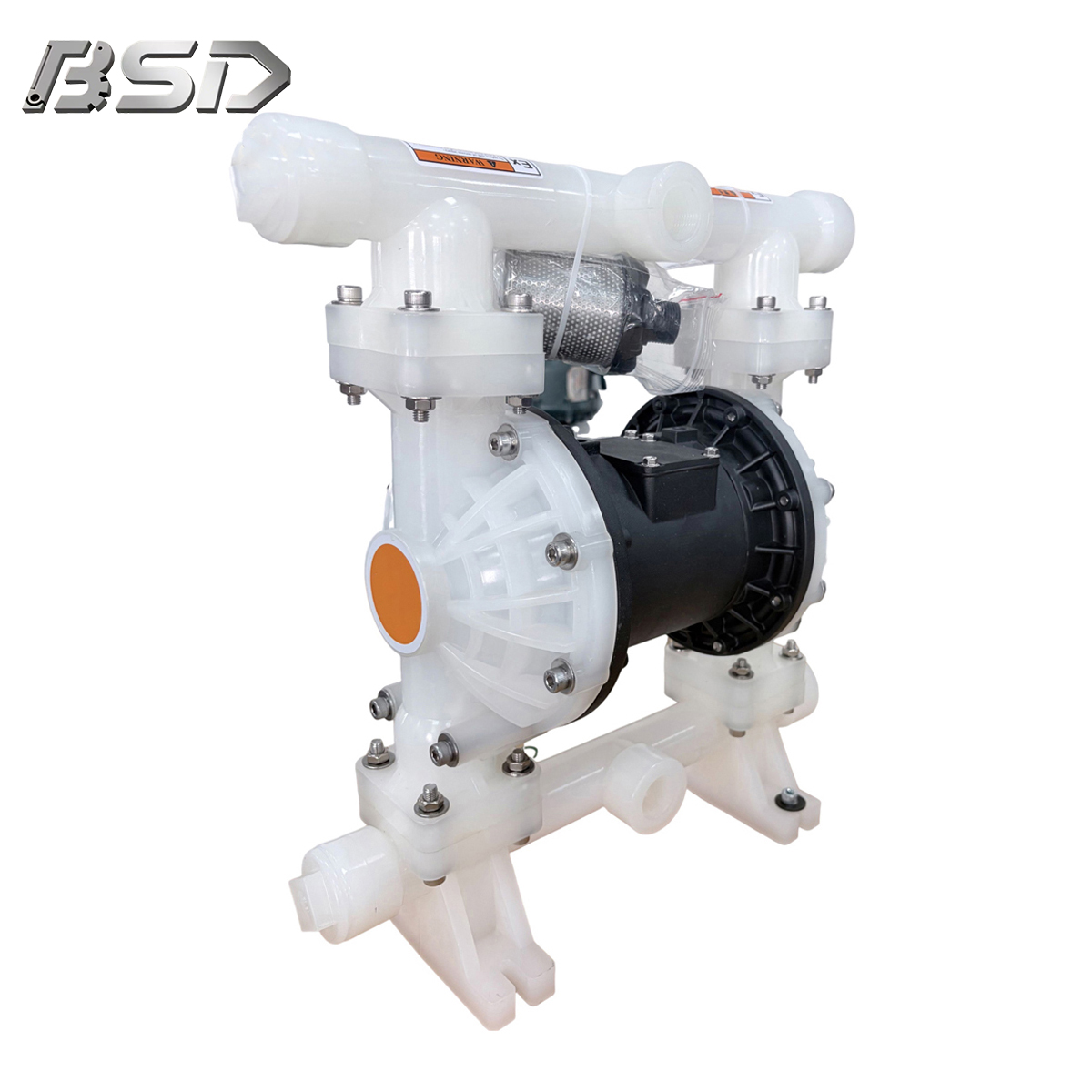

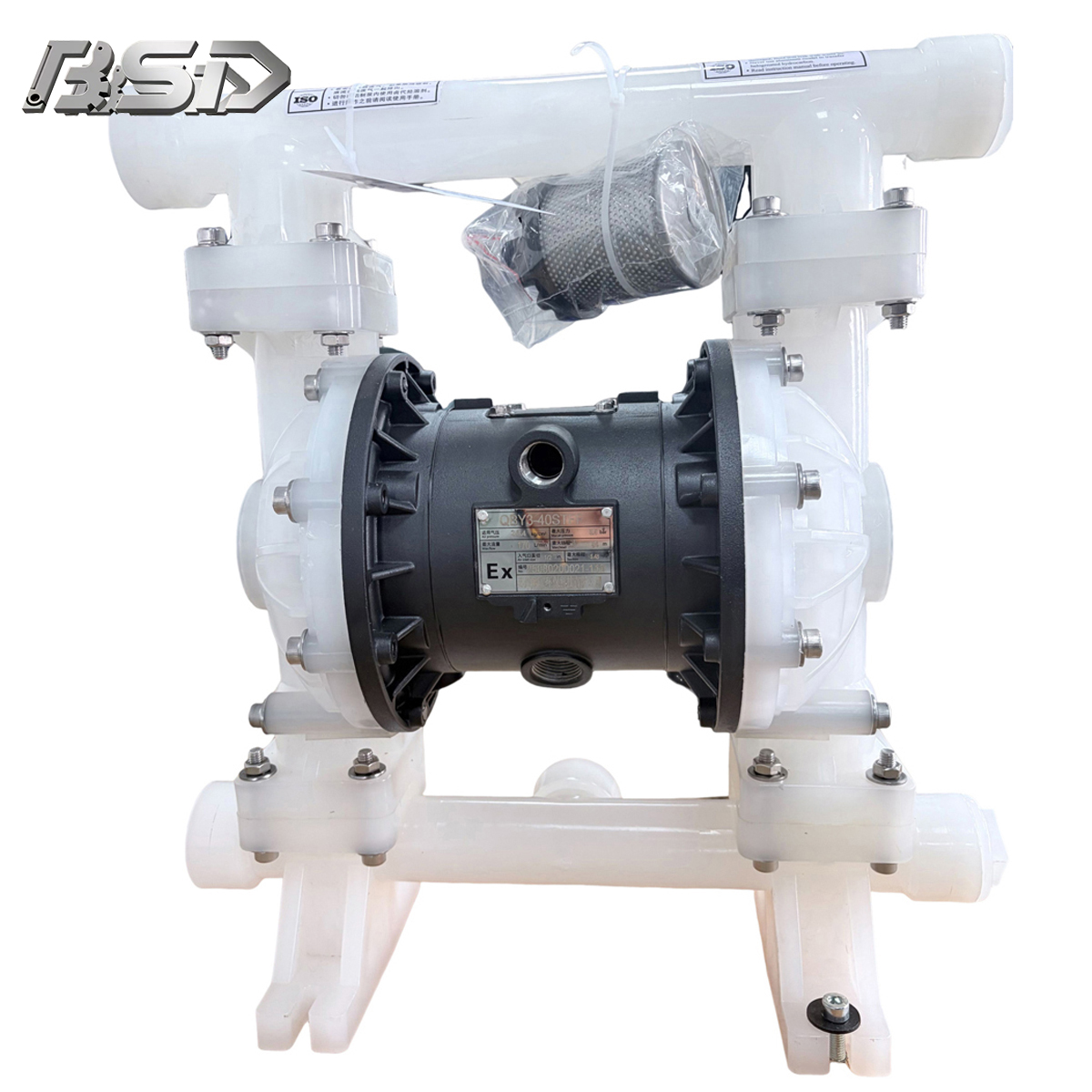

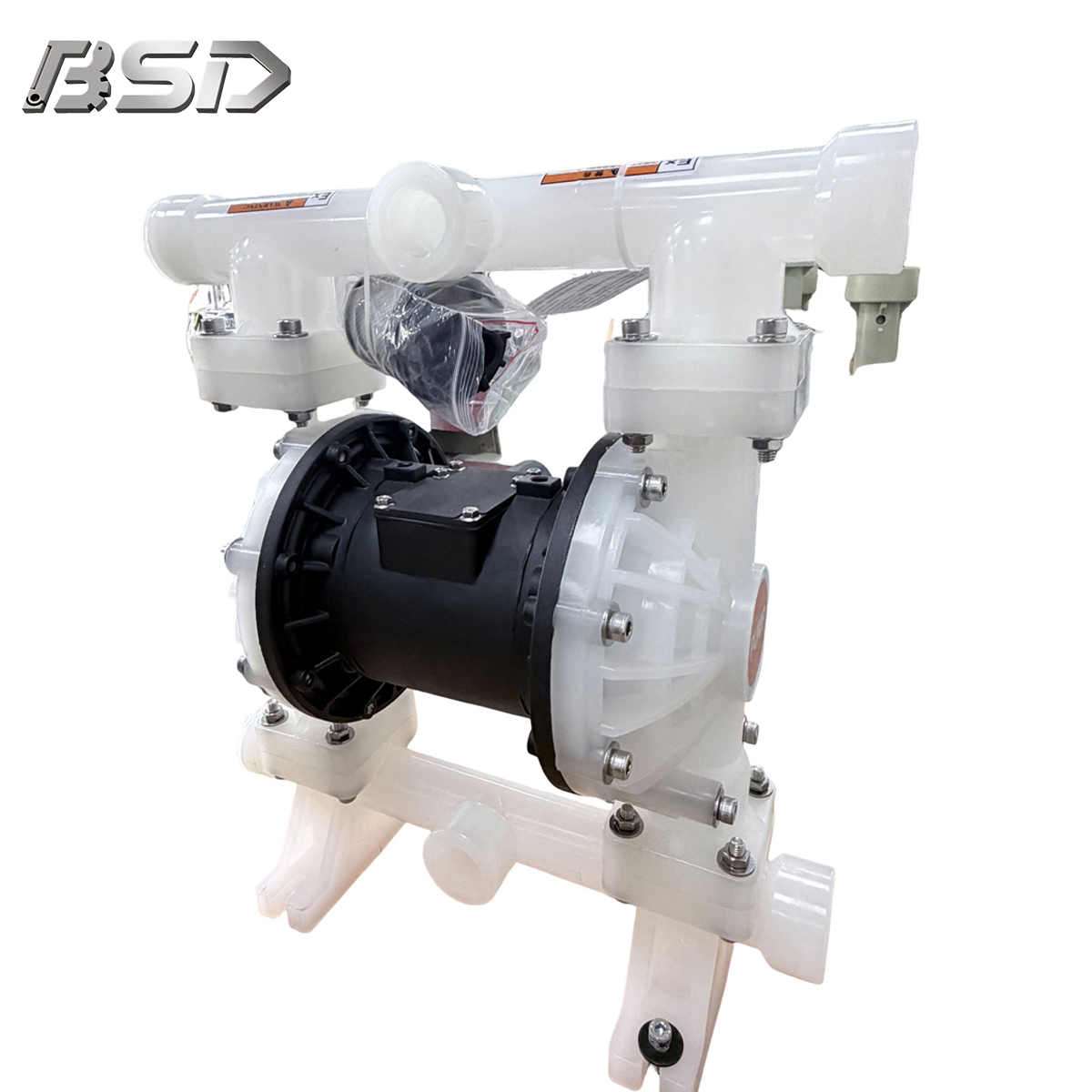

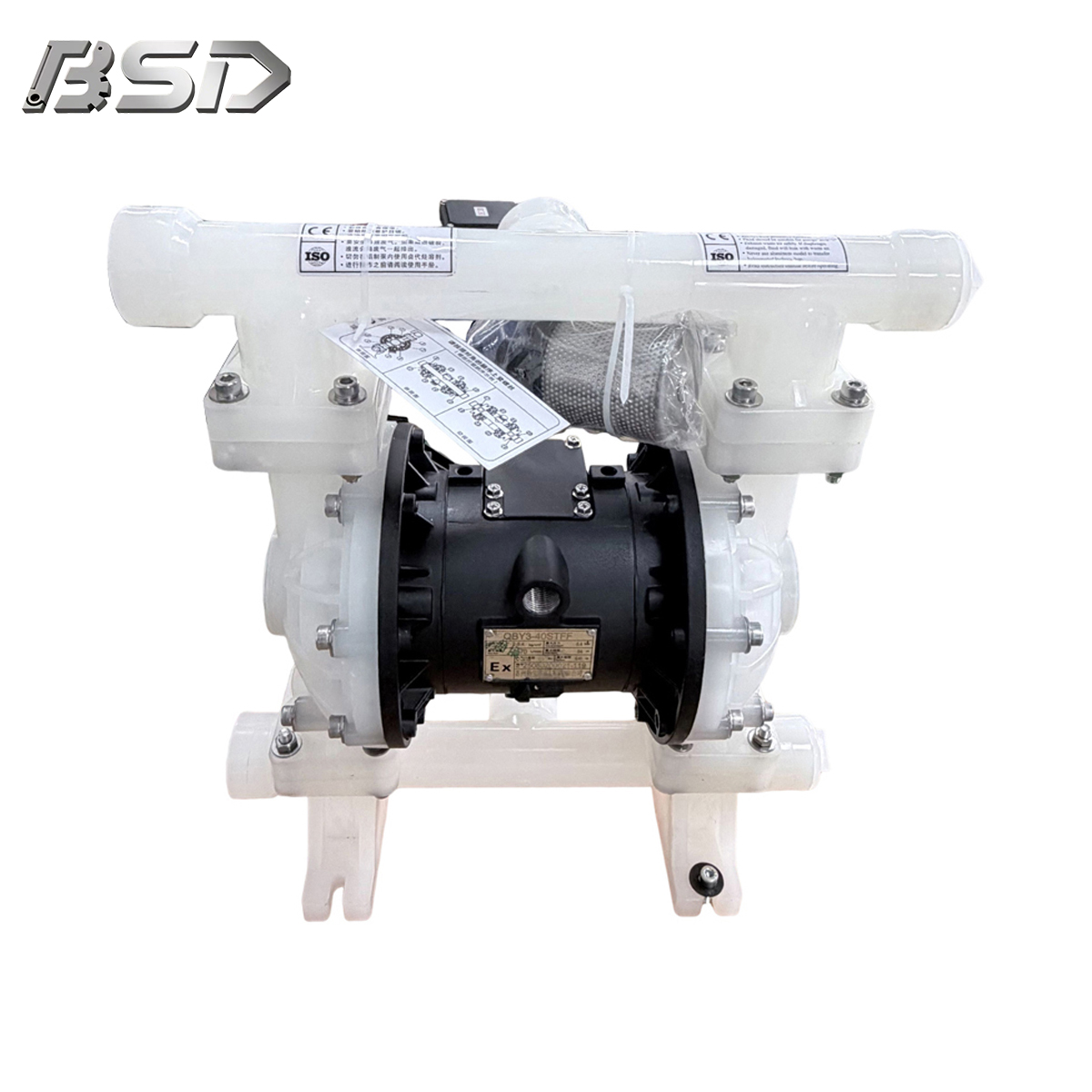

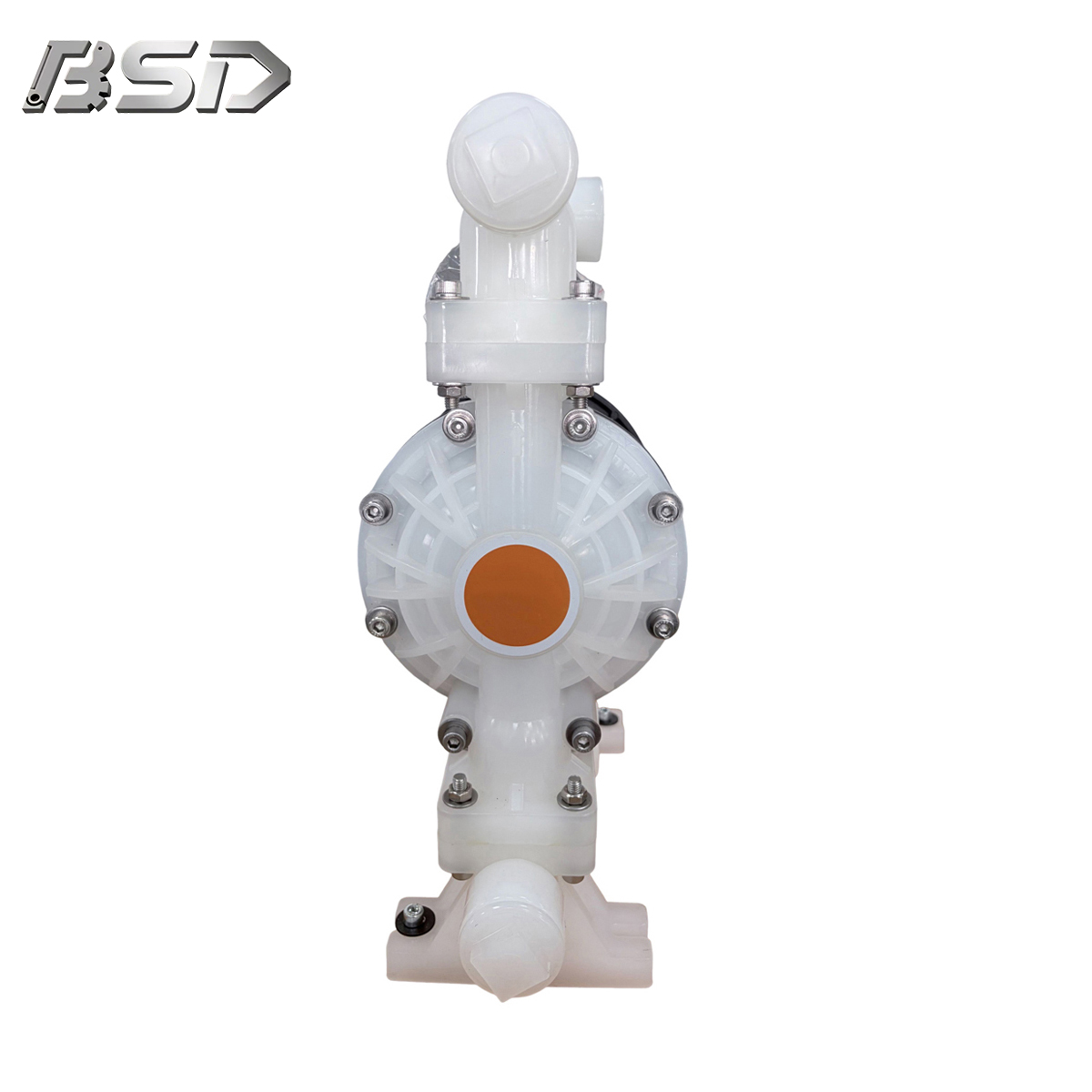

The VA series pneumatic double diaphragm pump is a robust, versatile fluid transfer solution engineered for demanding industrial applications involving abrasive slurries, corrosive chemicals, and viscous liquids. As a leading slurry transfer diaphragm pump designed for industrial operators, this air-operated unit eliminates the risk of shaft seal leakage, a common pain point in centrifugal and gear pumps, ensuring safe and contamination-free fluid handling. Available in 8 standard port sizes ranging from 1/4× to 3×, the pump accommodates flow rates from 1.0 L/min to 1000 L/min, making it suitable for both small-scale dosing and large-volume bulk transfer operations. Its modular design allows for quick material swaps to match specific fluid properties, providing unmatched flexibility for diverse industrial processes.
Unlike traditional pumps with rotating shafts, our chemical resistant air operated diaphragm pump features a sealless construction that completely prevents fluid leakage. This critical feature protects workers from hazardous chemical exposure, eliminates environmental contamination risks, and reduces costly cleanup and downtime associated with seal failures.
We offer an extensive range of wetted materials to handle virtually any fluid type. Body materials include acetal, polypropylene, aluminum, Kynar (PVDF), SUS 316 stainless steel, and cast iron, while diaphragms, ball valves, and seats are available in Teflon, Viton, Santoprene, and Hytrel. This versatility makes the pump ideal for corrosion resistant diaphragm pump applications involving strong acids, alkalis, solvents, and abrasive slurries.
The pump delivers reliable self-priming performance up to 5 meters, eliminating the need for priming tanks or manual priming before operation. It can also run dry indefinitely without damage, a critical safety feature for processes where fluid supply may be interrupted unexpectedly.
With only a few moving parts and no complex seals or bearings in the fluid path, the industrial slurry pump requires minimal maintenance. Parts can be replaced quickly on-site without special tools, reducing downtime and lowering total ownership costs.
Powered by compressed air, the pump is inherently explosion-proof and certified for use in hazardous environments where flammable gases or vapors are present, meeting global safety standards.
Parameter | Details |
|---|---|
Model Code | VA |
Port Size Options | 8: 1/4×, 10: 3/8×, 15: 1/2×, 20: 3/4×, 25: 1×, 40: 1-1/2×, 50: 2×, 80: 3× |
Body Material Options | AC - Acetal, PP - Polypropylene, AL - Aluminum, KY - Kynar (PVDF), SS - SUS 316, CI - Cast Iron |
Ball Seat Material | AC - Acetal, PP - Polypropylene, HY - Hytrel, SP - Santoprene |
Ball Valve Material | AC - Acetal, HY - Hytrel, SS - SUS 316, SP - Santoprene, GE - Geolast, BN - Buna-N, VT - Viton, TF - Teflon |
Diaphragm Material | TF - Teflon, HY - Hytrel, BN - Buna-N, VT - Viton, SP - Santoprene, GE - Geolast |

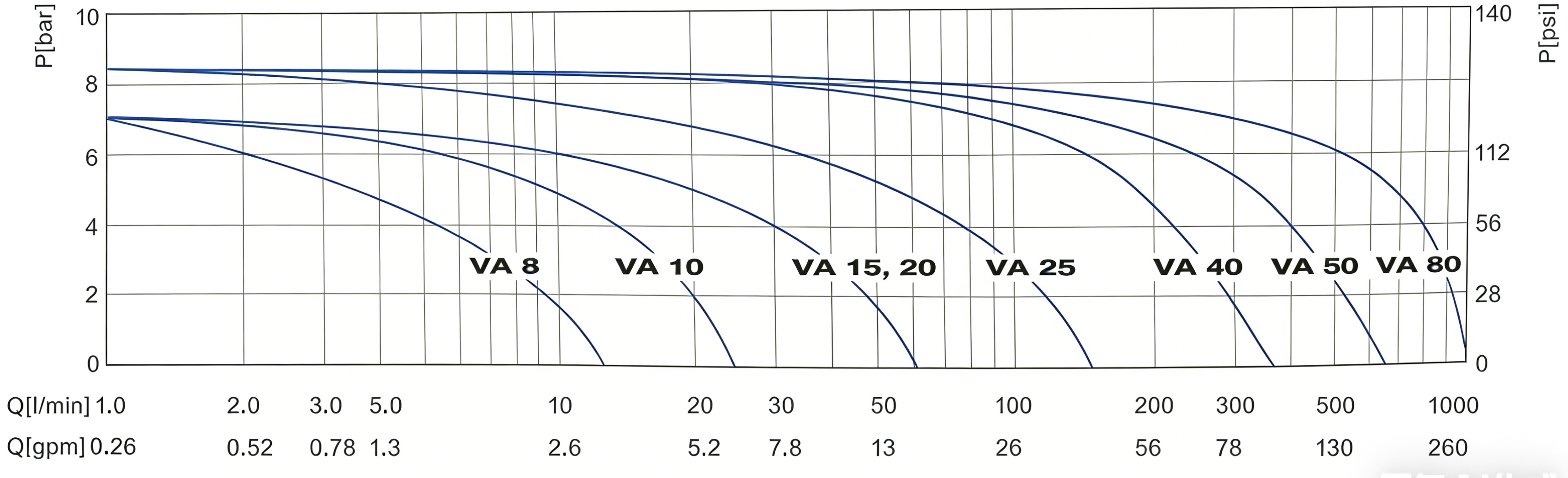

Max Flow Rate | 1000 L/min (260 gpm) |
Power Source | Compressed air (2-8 bar) |
Max Solid Particle Size | Up to 10 mm (depending on model) |

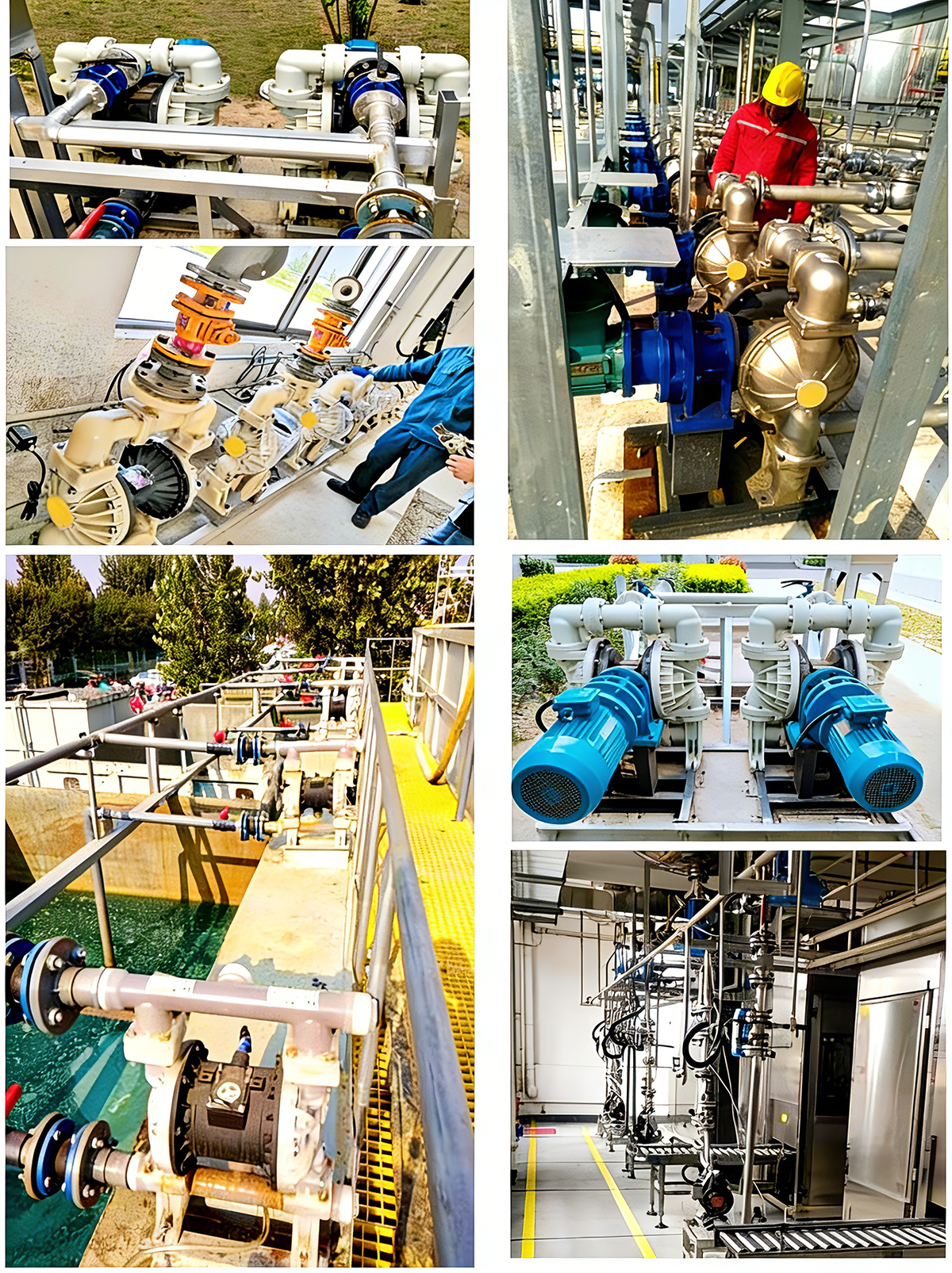

The portable pneumatic slurry pump is widely used across multiple industries for critical fluid transfer tasks:
Chemical Processing: Transfer of acids, alkalis, solvents, and chemical slurries
Mining & Minerals: Handling of mine tailings, ore slurries, and process water
Wastewater Treatment: Sludge transfer, chemical dosing, and effluent pumping
Food & Beverage: Transfer of syrups, sauces, and food-grade slurries (with FDA-approved materials)
Pharmaceuticals: Transfer of pharmaceutical intermediates and sterile fluids
Paints & Coatings: Pumping of paints, inks, resins, and pigments
We understand that every industrial process has unique requirements. Our customization services include:
Custom material combinations for highly corrosive or abrasive fluids
Custom flange connections to match existing piping systems
Explosion-proof certification for specific hazardous area classifications
Custom flow and pressure adjustments to meet process specifications
Complete turnkey solutions including piping, valves, and control systems
All our pneumatic double diaphragm pumps undergo rigorous quality control processes, including ISO 9001 certification, pressure testing, and performance verification before shipment. We stand behind our products with a 12-month comprehensive warranty covering manufacturing defects. Our dedicated technical support team provides 24/7 assistance for installation, troubleshooting, and maintenance. We also maintain a large inventory of spare parts to ensure fast delivery and minimize downtime for our customers.
Yes, the pump is specifically designed to handle abrasive slurries containing solid particles up to 10 mm in size. We recommend using wear-resistant materials such as Santoprene or Hytrel for diaphragms and ball valves in these applications.
The maximum temperature resistance depends on the wetted materials. Polypropylene can handle up to 70°C, PVDF up to 120°C, and SUS 316 stainless steel up to 150°C.
Yes, all our air-operated diaphragm pumps are inherently explosion-proof and can be certified to meet ATEX, IECEx, and other global explosion-proof standards.
Standard pumps are available for immediate shipment. Customized pumps typically have a delivery time of 2-3 weeks, depending on the complexity of the customization.
