KP

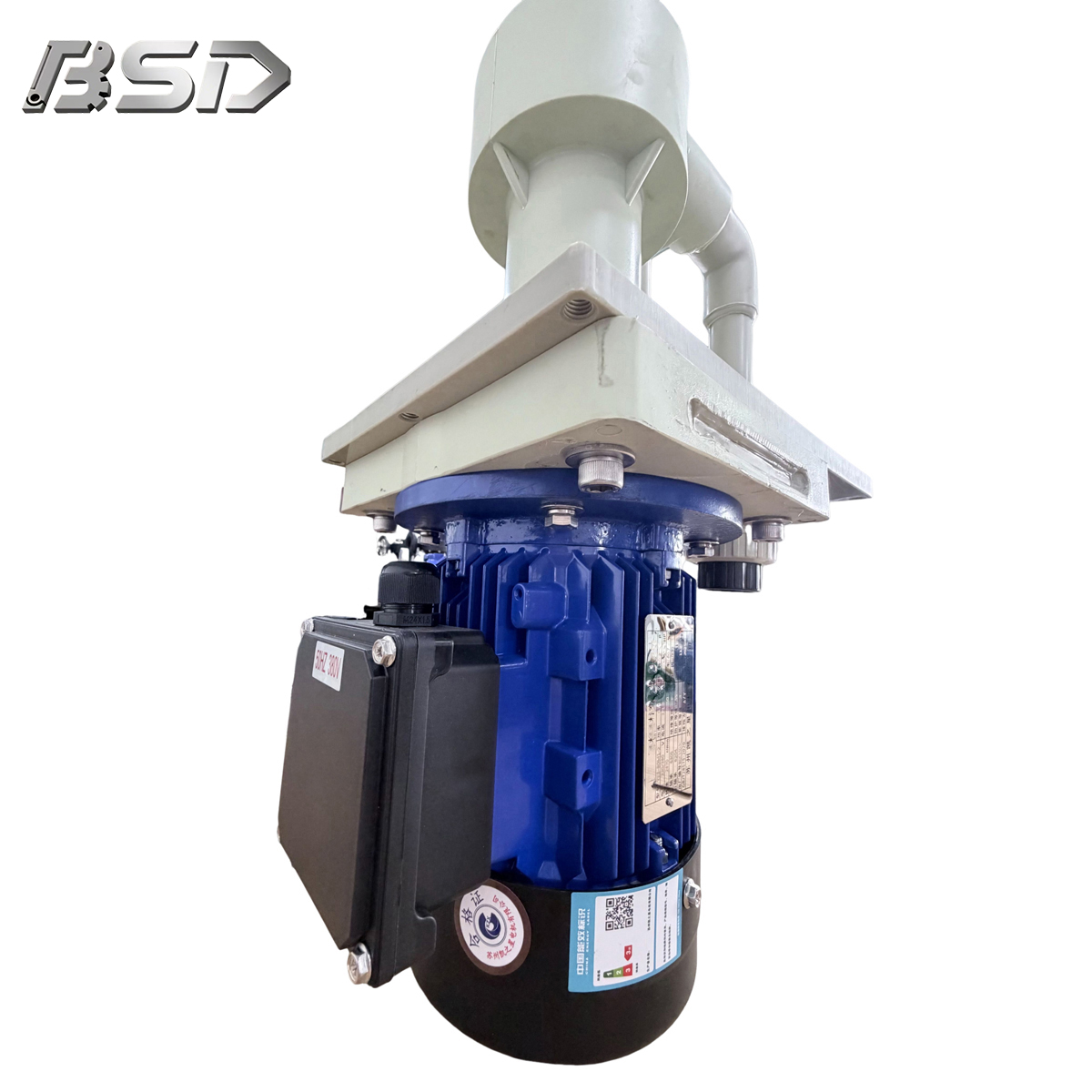

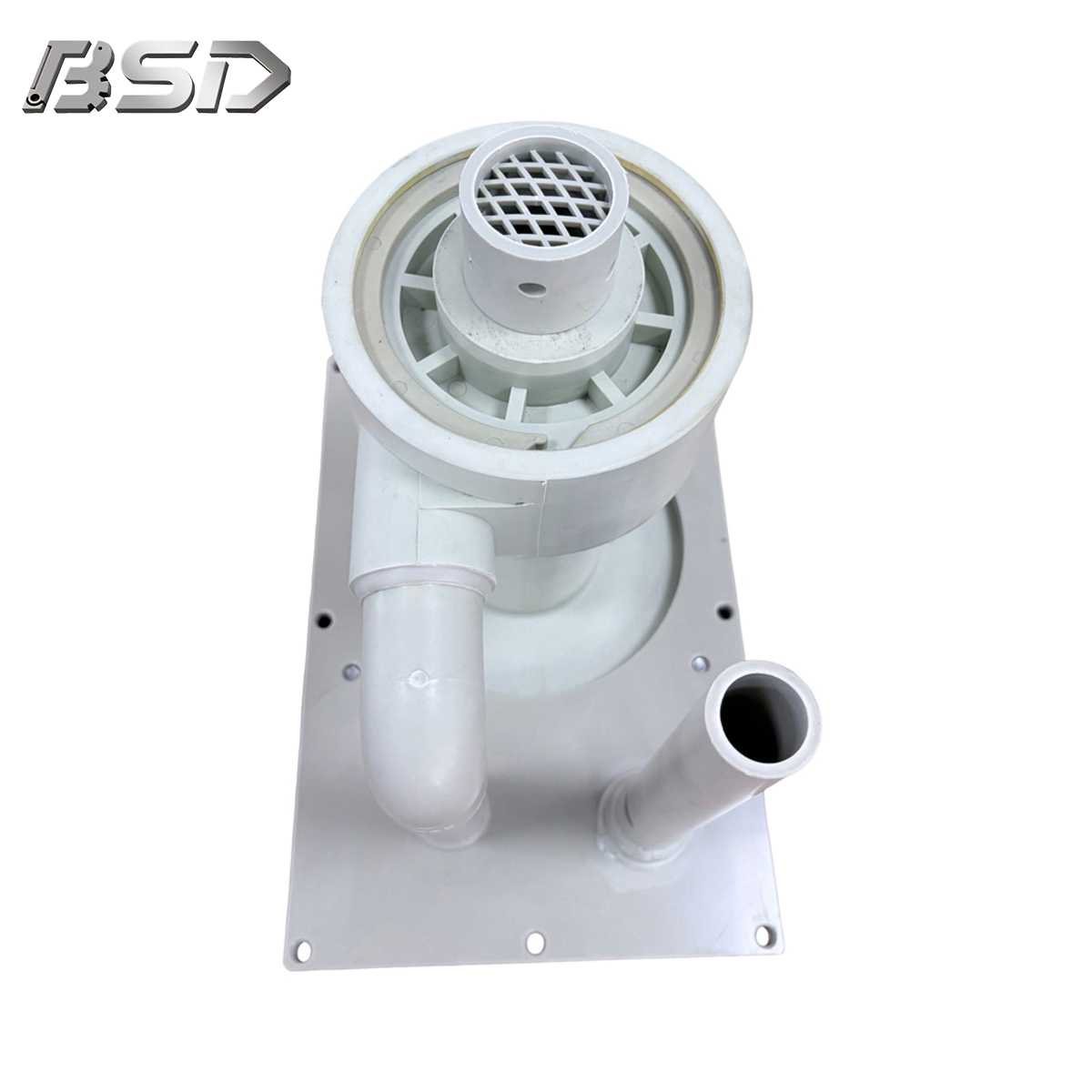

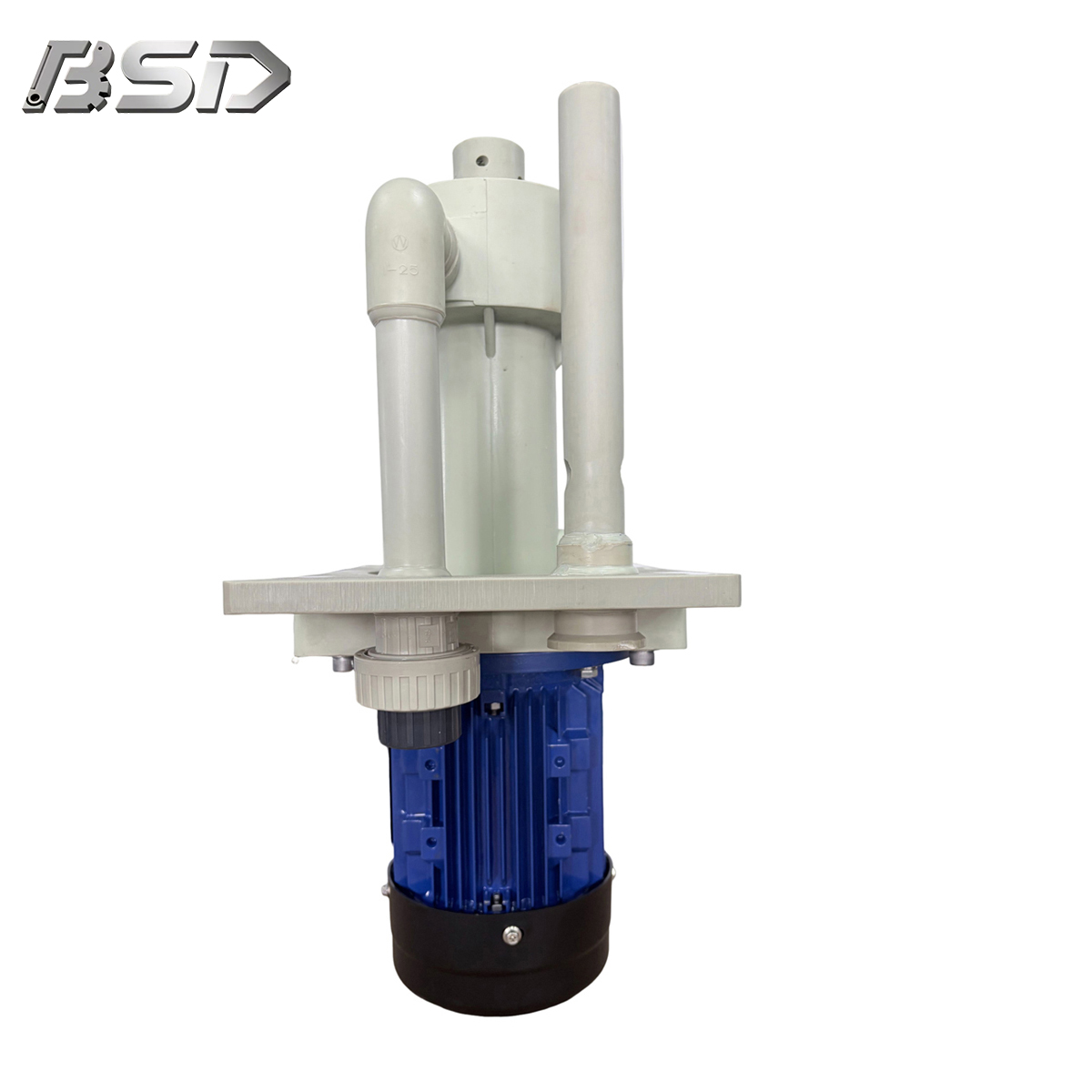

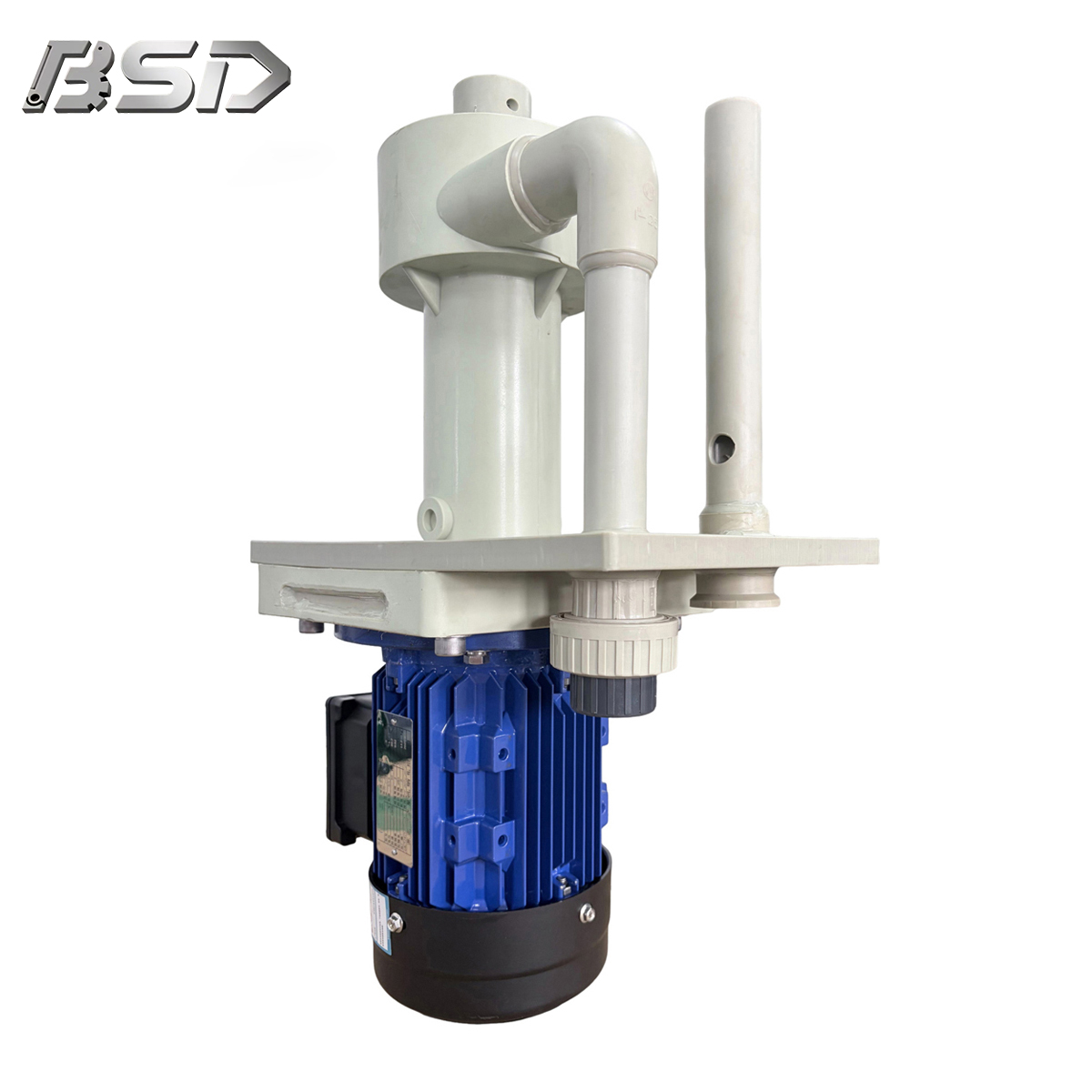

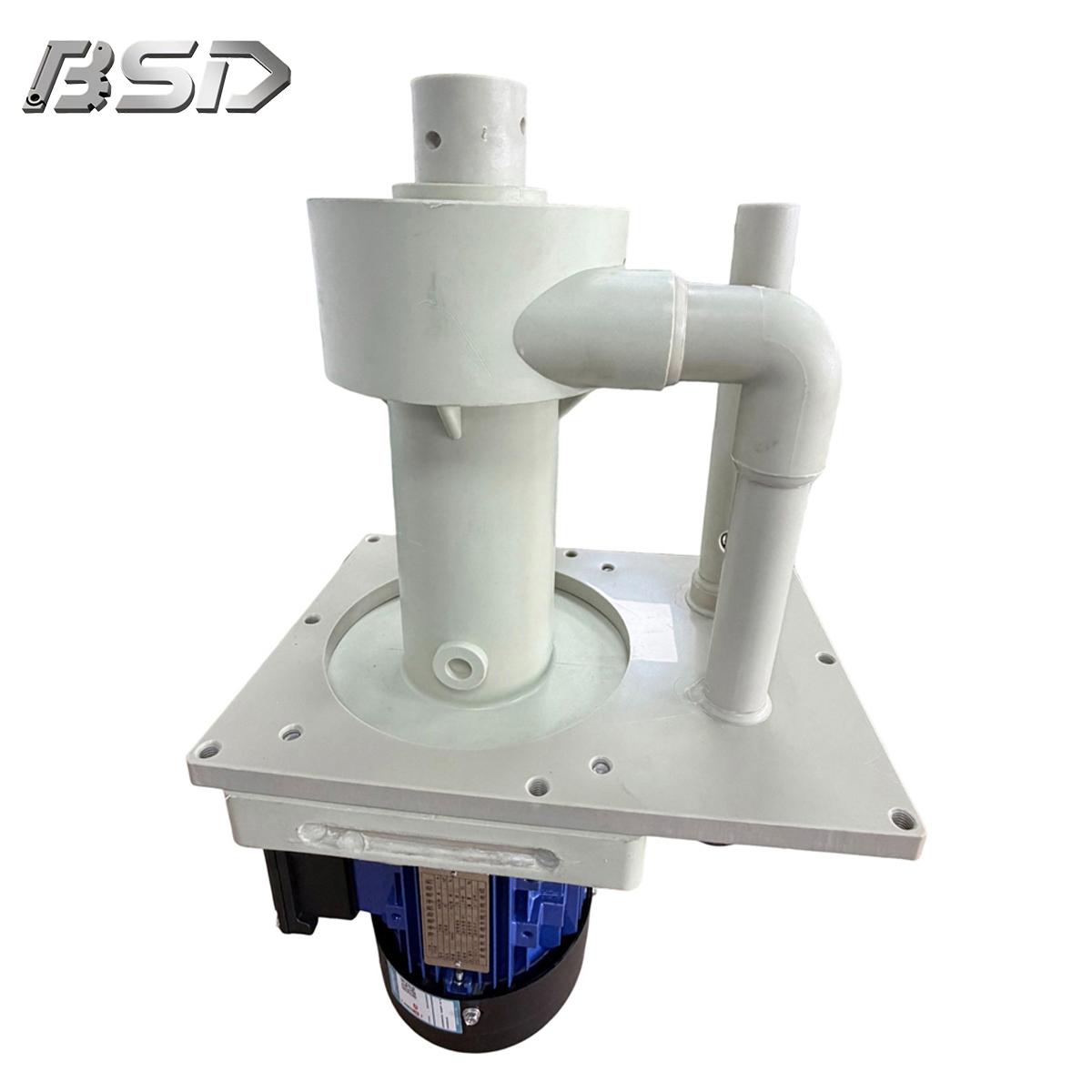

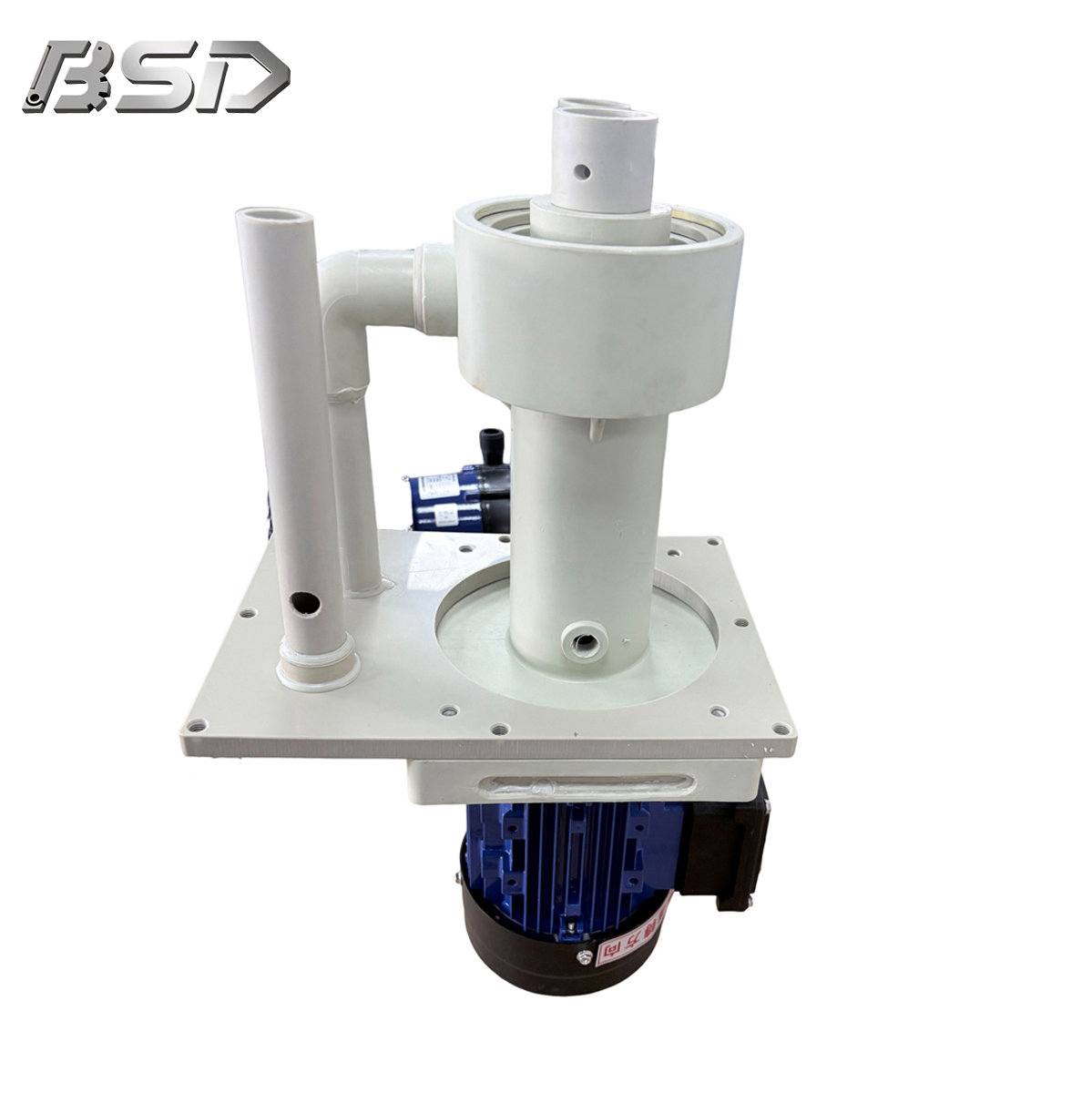

The KP series vertical FRPP submerged pump is a high-performance tank-mounted pump specifically engineered for reliable liquid extraction and circulation in corrosive industrial environments. Featuring a fully submerged design, this pump eliminates priming challenges and maintains stable operation even with fluctuating liquid levels in storage tanks and process vessels. Built with advanced injection molding technology, it offers exceptional chemical resistance and durability, making it an essential fluid handling solution for facilities processing acids, alkalis, and various chemical liquids. Its compact footprint and easy installation make it ideal for retrofitting existing systems or integrating into new production lines.
Superior Corrosion Resistance: Constructed from premium FRPP, CFRPP, CPVC, or PVDF materials, the FRPP tank pump withstands a broad spectrum of aggressive chemicals. Material selection is precisely matched to liquid concentration and operating temperature for optimal performance.
Unlimited Dry-Run Capability: Equipped with a dry-type liquid seal, the pump can operate continuously without liquid, preventing costly downtime and component damage caused by accidental tank depletion.
Lightweight Modular Design: The all-plastic construction significantly reduces weight compared to metal equivalents, simplifying installation and minimizing structural stress on tank walls.
Secure Impeller Assembly: The impeller is secured with a C-type snap ring, eliminating radial movement or loosening during high-speed operation and ensuring long-term reliability.
Effective Acid Gas Protection: The integrated venting system expels chemical vapors between the extension plate and motor base, preventing corrosion of motor bearings and windings.
Parameter | Details |
|---|---|
Model Code | KP |
Port Size | 25:1", 40:1-1/2", 50:2" |
Liquid Specific Gravity | VK:1.1, VP:1.4 |
Motor Horsepower | 1/2, 1, 2 HP |
Frequency | 5:50Hz, 6:60Hz |
Elastomer Materials | N-NBR, E-EPDM |
Pump Body Materials | F-FRPP, C-CFRPP, A-CPVC, P-PVDF |
Maximum Flow Rate (60Hz) | 340 L/min |
Maximum Head (60Hz) | 18 m |
Weight Range | 20-24 kg |

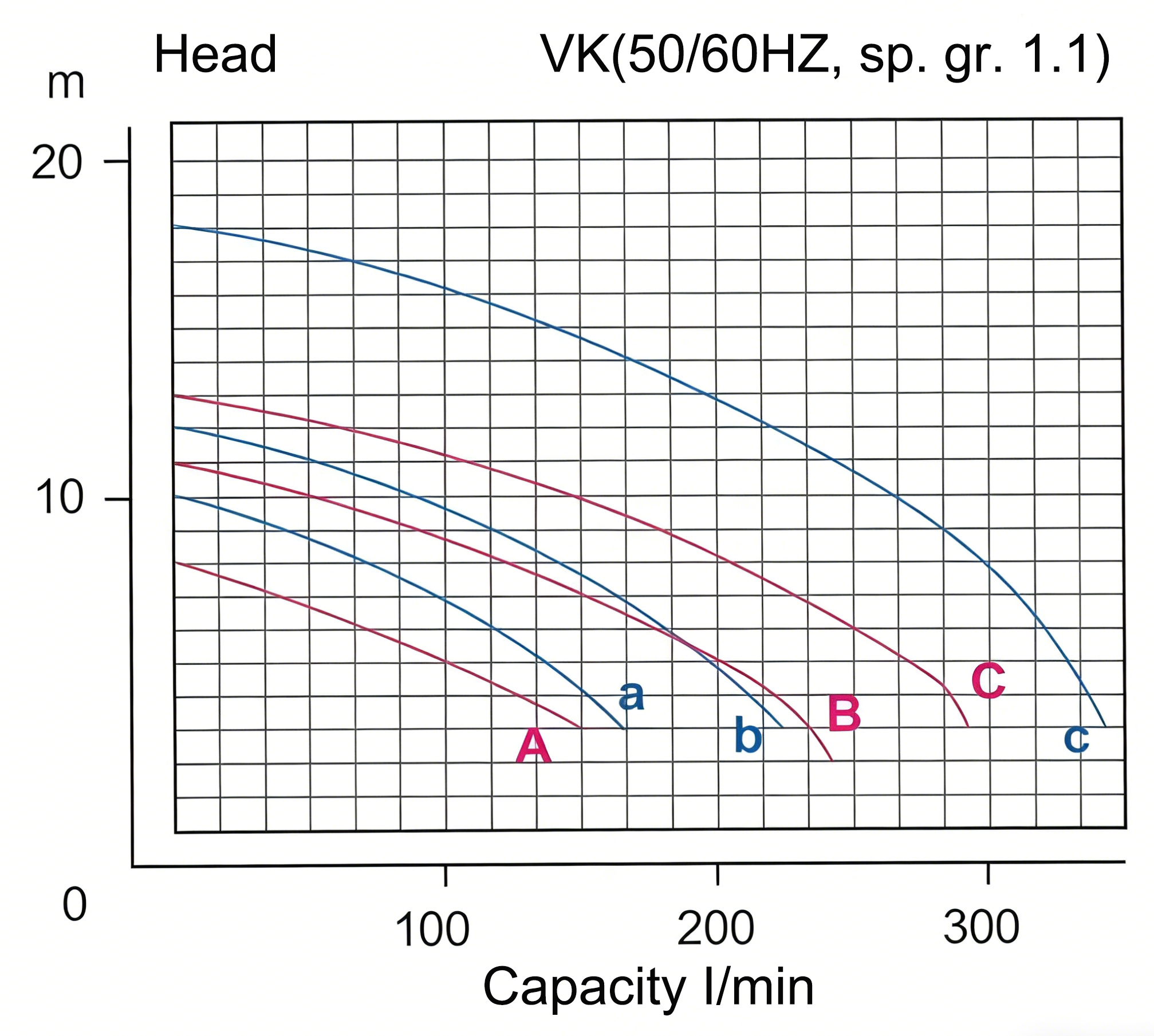

Model | NO. | Diameter(mm) Suction*Discharge | Motor HP | Phrase | Rated M | Rated Capacity (L/min) | Rated Head (M) | Standard Output (L/min) | Weight KG | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | ||||||
KP-25VK-1/2 | A/a | 40*25 | 1/2 | 1,3 | 5 | 4 | 100 | 150 | 8 | 10 | 150 | 165 | 20 |
KP-40VK-1 | B/b | 50*40 | 1 | 3 | 8 | 6 | 130 | 180 | 11 | 12 | 240 | 225 | 20 |
KP-40VK-2 | C/c | 50*40 | 2 | 3 | 10 | 10 | 150 | 260 | 13 | 18 | 290 | 340 | 24 |
KP-25VP-1 | A/a | 40*25 | 1 | 3 | 6 | 7 | 160 | 110 | 11 | 11 | 200 | 185 | 20 |
KP-40VP-1 | B/b | 50*40 | 1 | 3 | 6 | 6 | 140 | 110 | 9 | 9 | 190 | 175 | 20 |
KP-40VP-2 | C/c | 50*40 | 2 | 3 | 7 | 7 | 160 | 130 | 11 | 12 | 225 | 180 | 24 |
Electroplating and surface treatment: Plating solution circulation and tank emptying
Industrial wastewater treatment: Sludge transfer and chemical waste extraction
PCB and semiconductor manufacturing: Chemical liquid handling and waste disposal
Battery production: Electrolyte circulation and tank cleaning
Chemical processing: Acid and alkali transfer between storage tanks
Custom inlet pipe lengths for deep tank applications
Multiple flange connection standards (JIS, DIN, ANSI)
Tailored material combinations for unique chemical compatibility
Regional voltage and frequency motor configurations
Optional bottom strainers to prevent debris ingestion
All acid alkali resistant submerged pumps undergo comprehensive quality control, including hydrostatic pressure testing, performance calibration, and material integrity verification. We adhere to strict international manufacturing standards to ensure consistent product reliability. Our experienced technical team provides end-to-end support, from pre-sales application engineering to post-installation maintenance. We offer a 12-month warranty on all products and guarantee a 24-hour response time to all technical inquiries. Spare parts are readily available globally to minimize downtime.
We offer FRPP, CFRPP, CPVC, and PVDF options. Our engineers will recommend the optimal material based on your specific chemical composition and operating temperature.
The KP series is designed for tank-internal installation. For external mounting requirements, please inquire about our KB series self-priming pumps.
FRPP models handle up to 75°C, CPVC up to 80°C, and PVDF up to 90°C. Higher temperature solutions are available upon request.
