KD

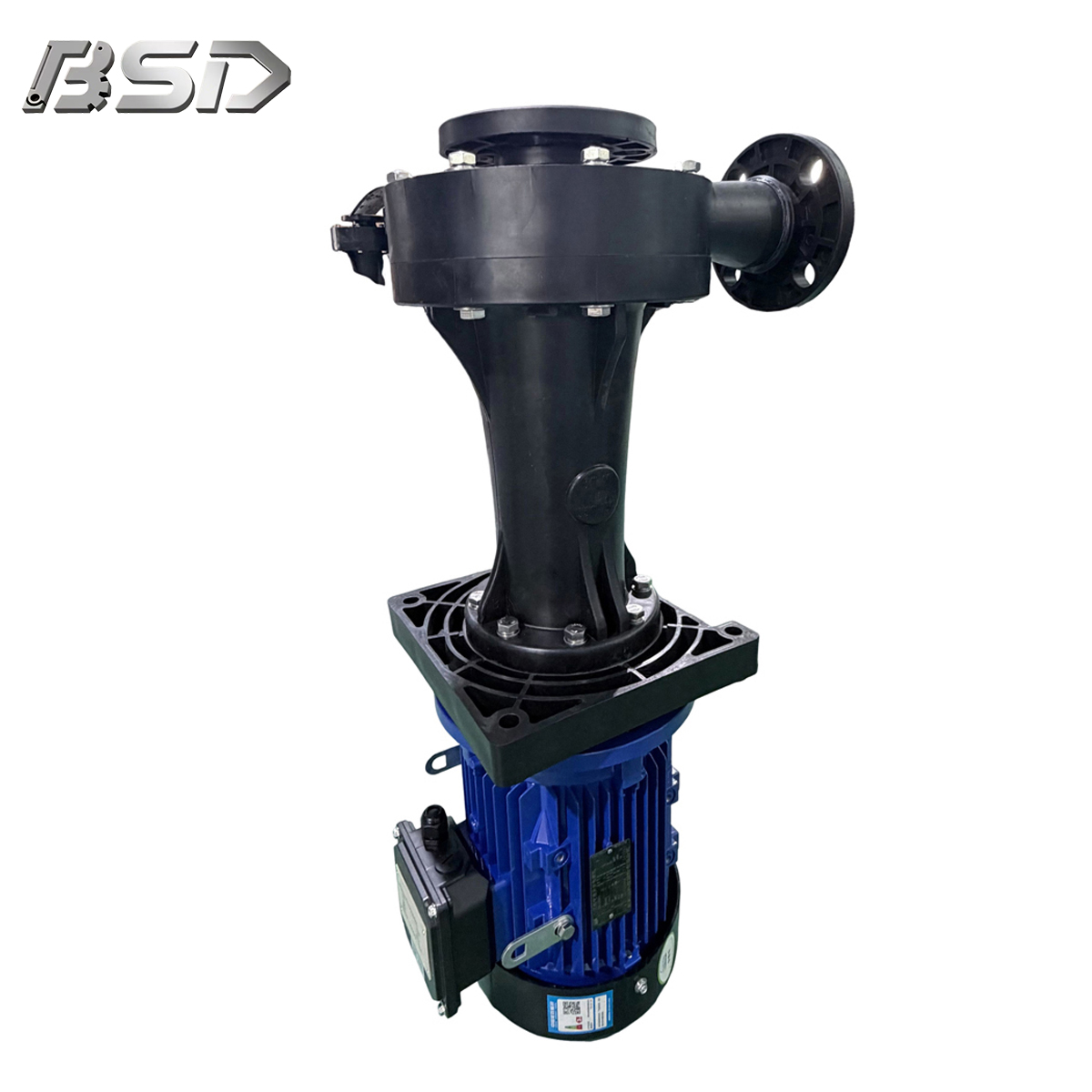

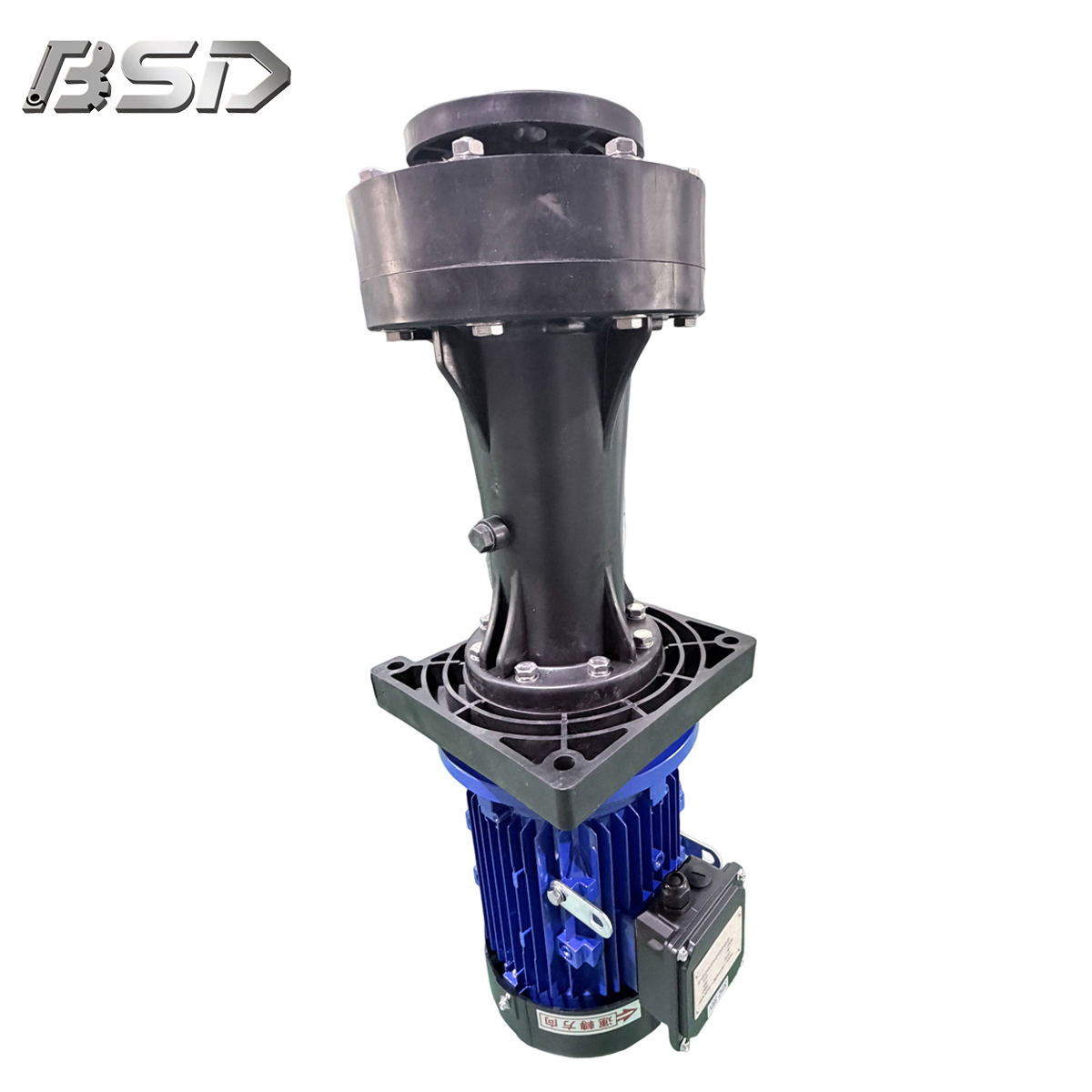

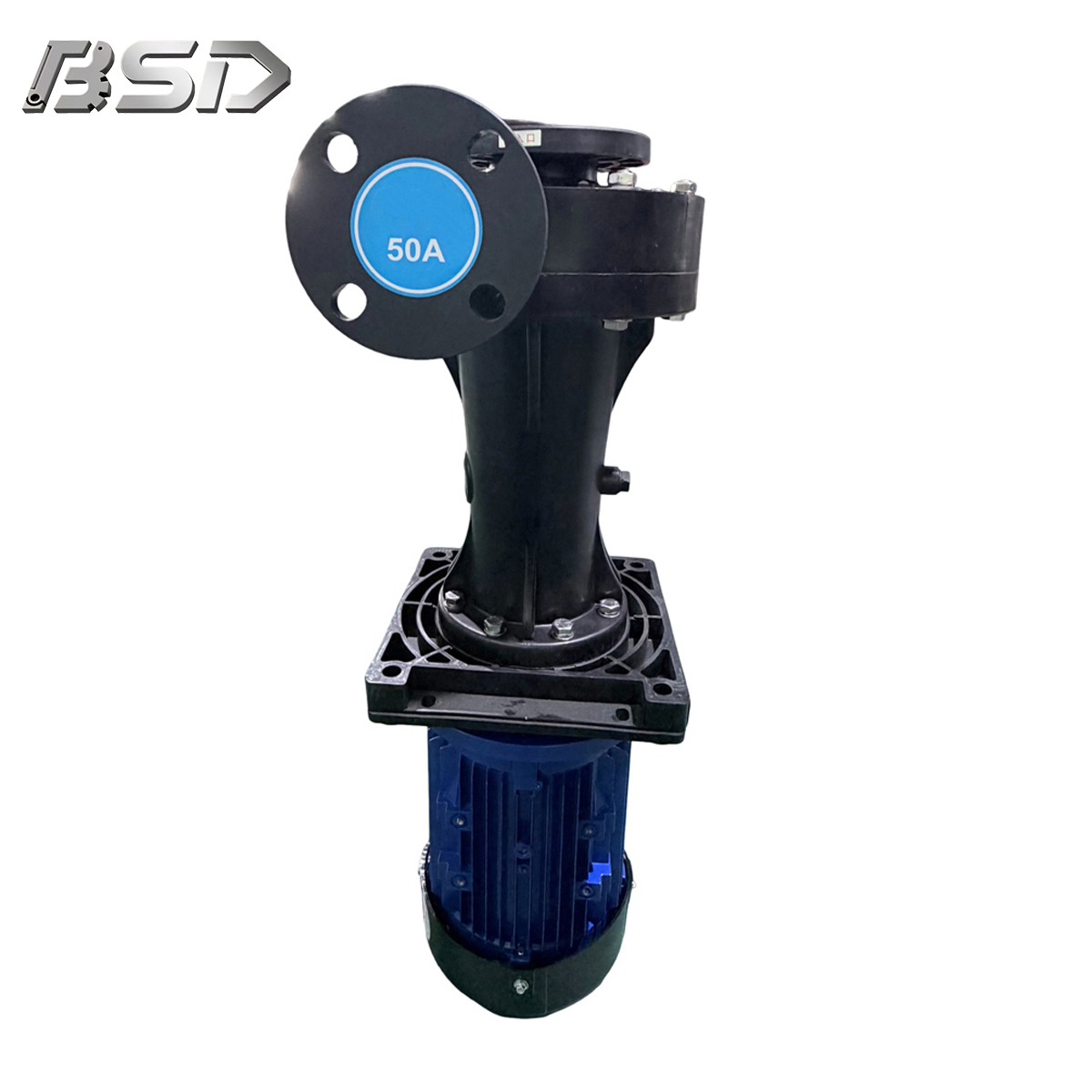

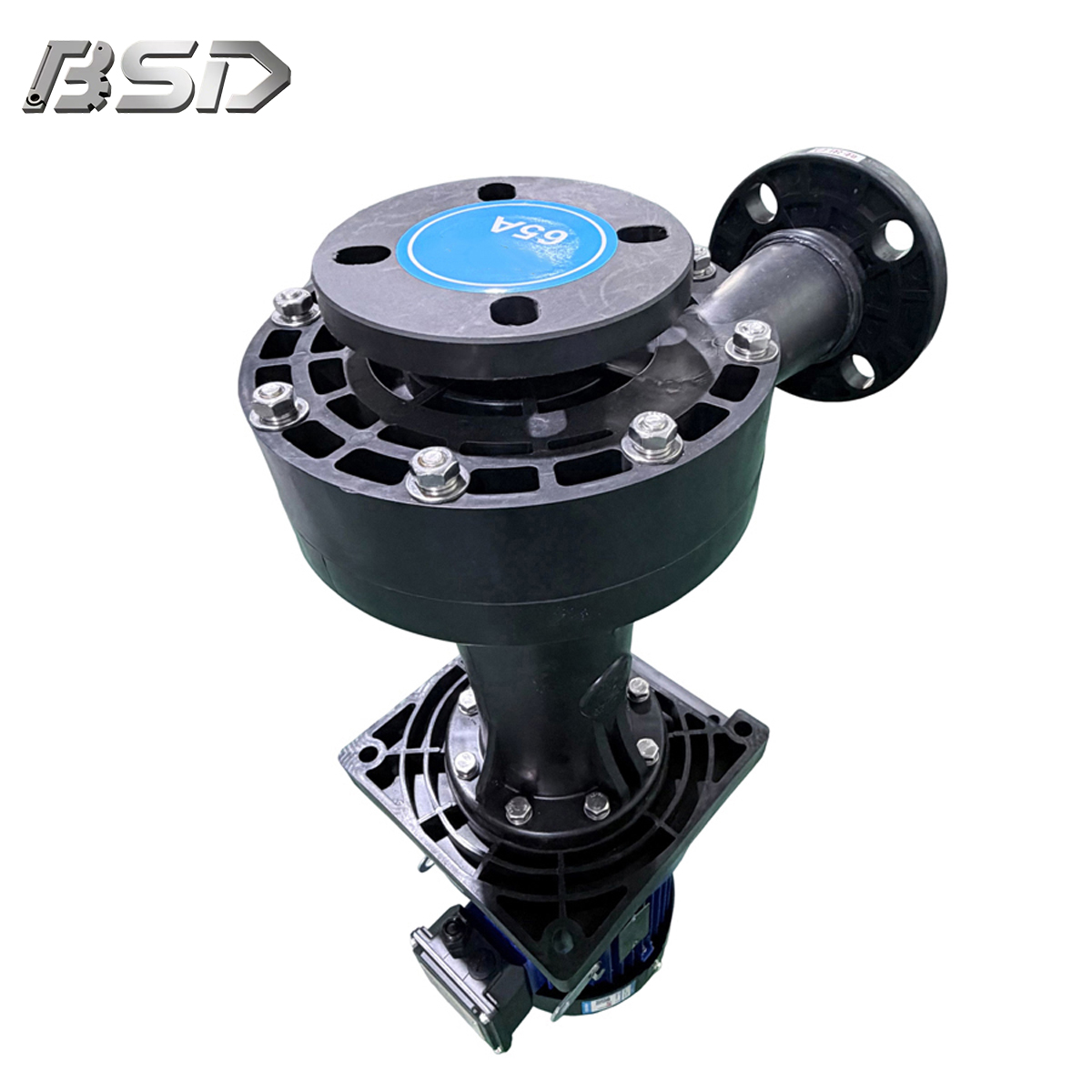

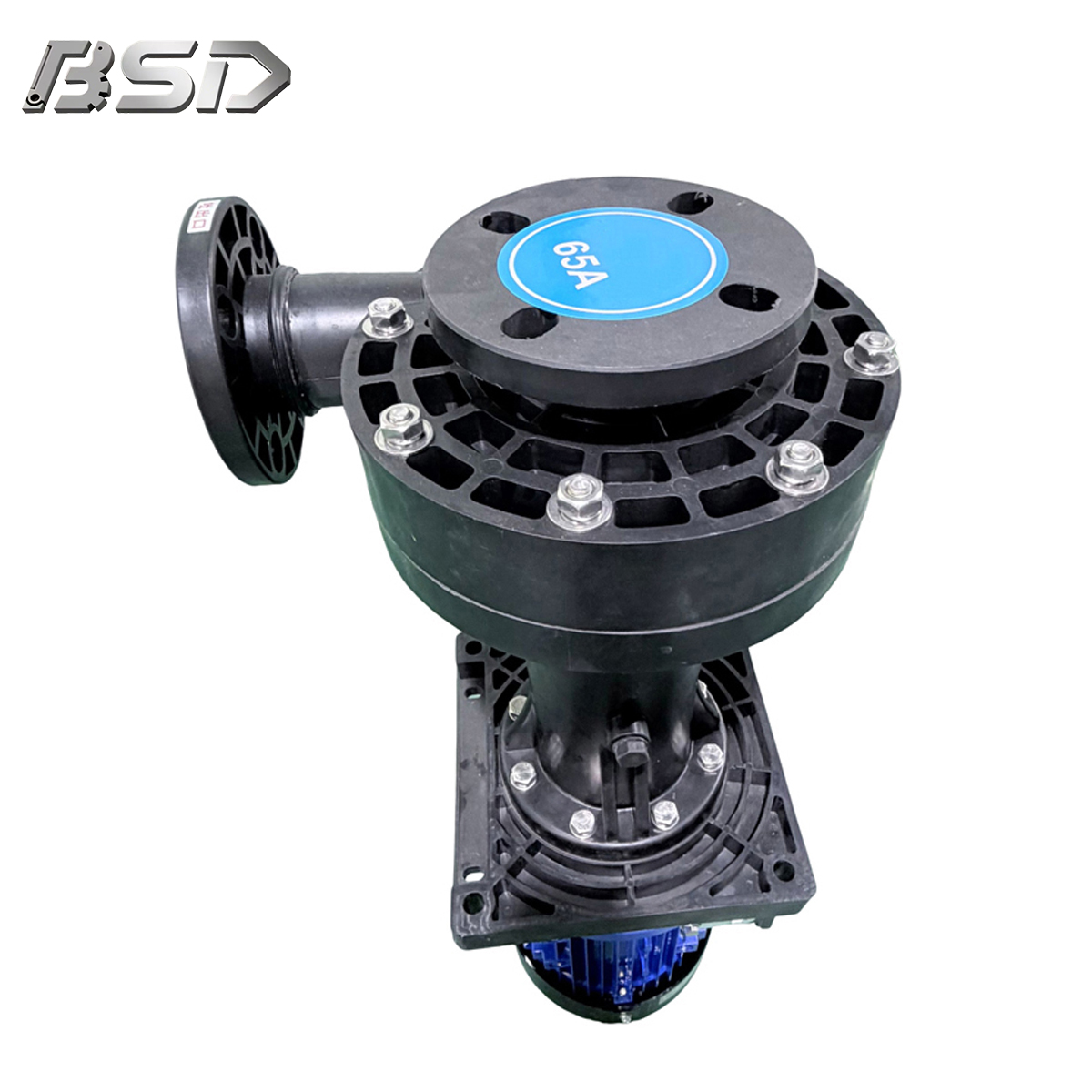

The KD series acid-alkali resistant vertical pump is a heavy-duty industrial pump optimized for high-demand nickel plating filtration and aggressive chemical transfer applications. Engineered with innovative structural design and premium corrosion-resistant materials, it delivers exceptional flow and head performance while maintaining long-term reliability in harsh operating environments. Its unique dry-run capability and robust construction make it the preferred choice for manufacturing facilities requiring continuous, low-maintenance fluid handling for critical process operations.
High Efficiency Centrifugal Design: Minimizes air entrainment and delivers industry-leading flow rates and head pressures, ideal for long-distance transfer and high-pressure filtration systems.
Innovative FRPP Motor Bracket: Replaces traditional cast iron brackets with FRPP construction, drastically reducing acid gas corrosion and lowering overall machine weight.
Advanced Self-Cooling Shaft Seal: The integrated Teflon bellow seal effectively isolates the motor from chemical vapors, extending motor and bearing service life by up to 3 times.
Broad Material Compatibility: Available in FRPP, CFRPP, CPVC, and PVDF materials to handle liquids with temperatures up to 90°C and specific gravities up to 1.4.

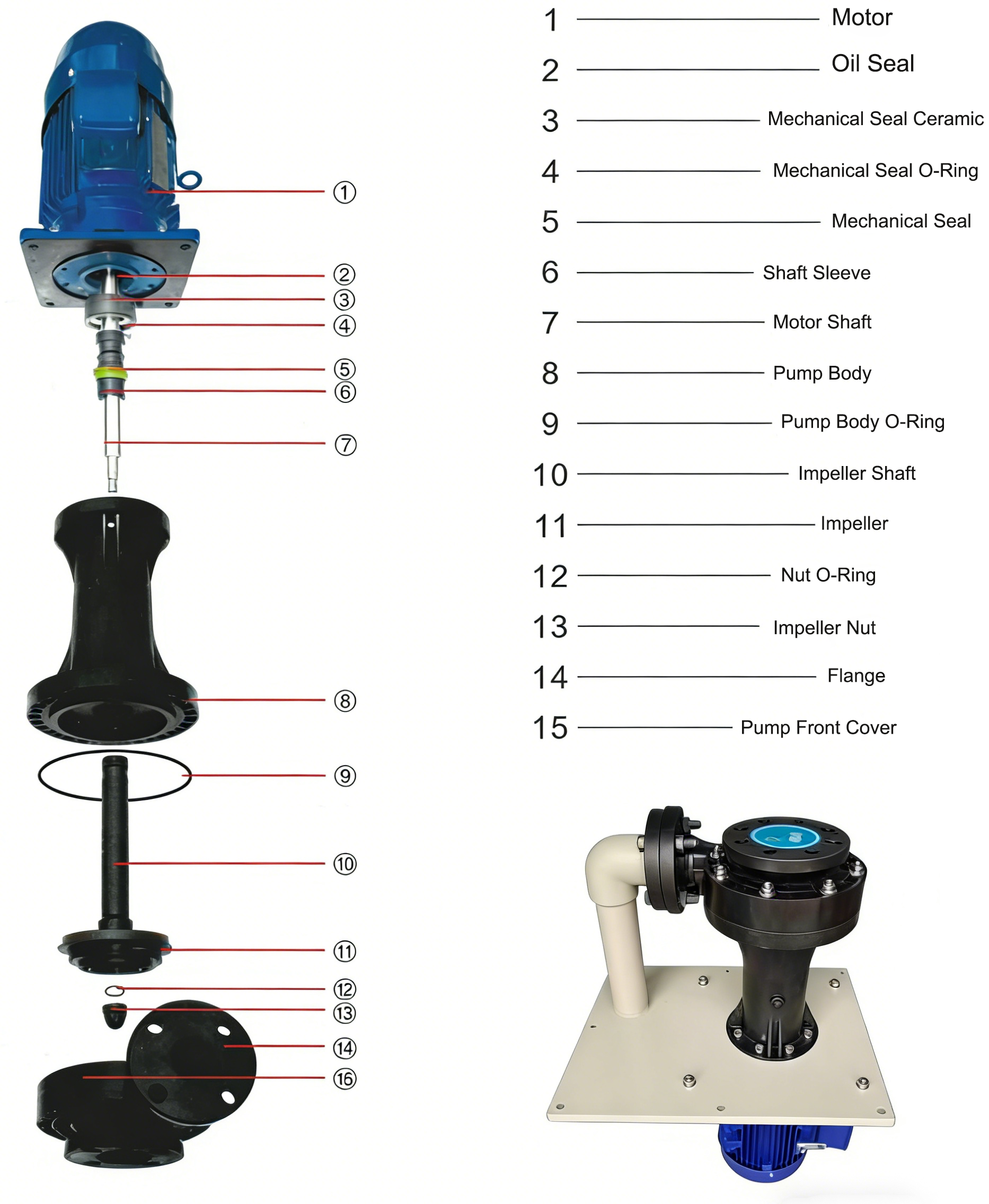

Modular Construction: All components are easily accessible for maintenance, reducing repair time and operational costs.
Parameter | Details | |||
|---|---|---|---|---|
Model Code | KD | |||

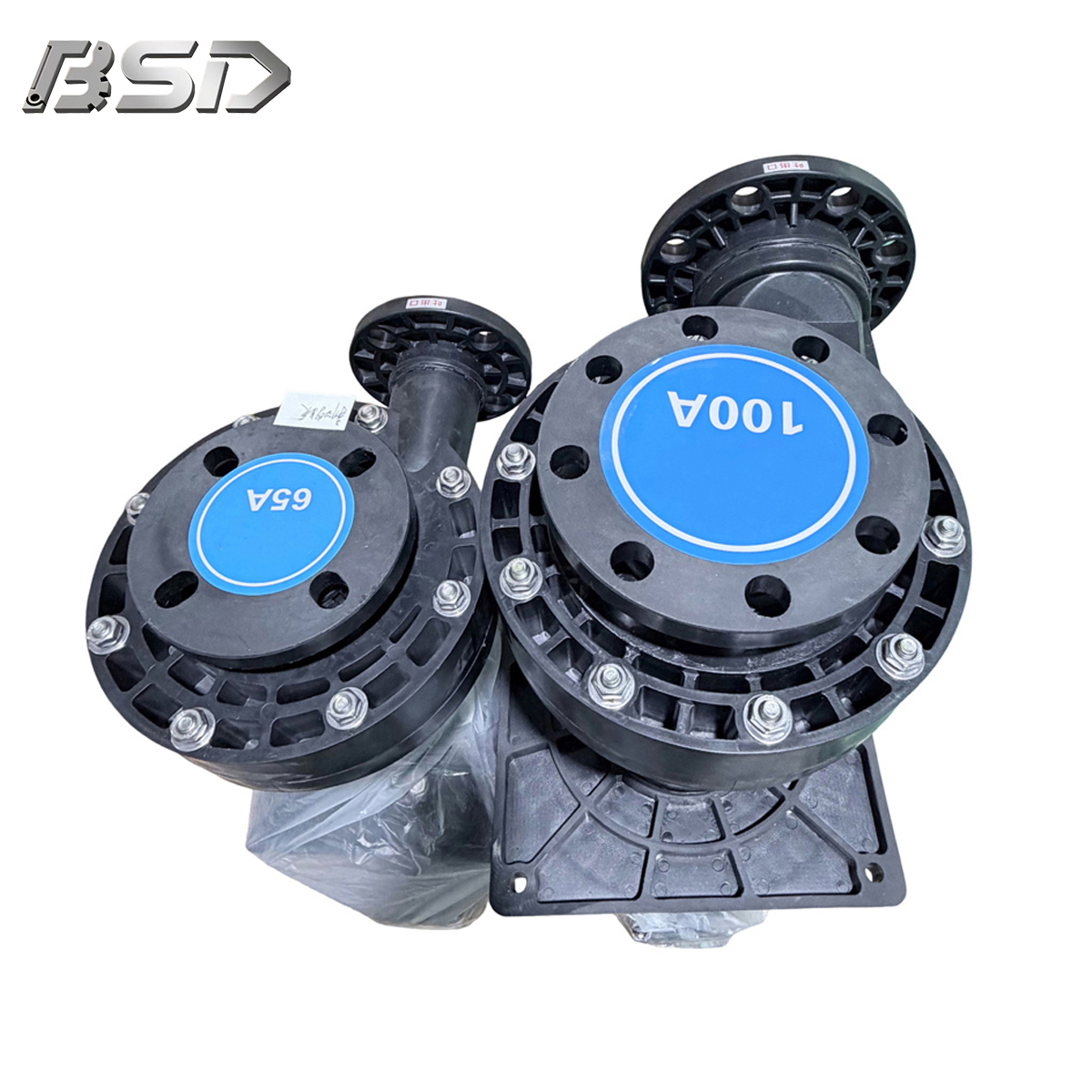

Port Size | 40:1-1/2×, 50:2×, 65:2-1/2×, 80:3×, 100:4× | |||
Liquid Specific Gravity | VK:1.1, VP:1.4 | |||
Motor Horsepower | 1, 2, 3, 5, 7.5, 10, 15, 20, 25 HP | |||
Frequency | 5:50Hz, 6:60Hz | |||
Elastomer Materials | N-NBR, E-EPDM, V-VITON | |||
Pump Body Materials | F-FRPP, C-CFRPP, A-CPVC, P-PVDF | |||
Maximum Flow Rate (60Hz) | 2900 L/min | |||
Maximum Head (60Hz) | 41 m | |||
Weight Range | 29-160 kg | |||

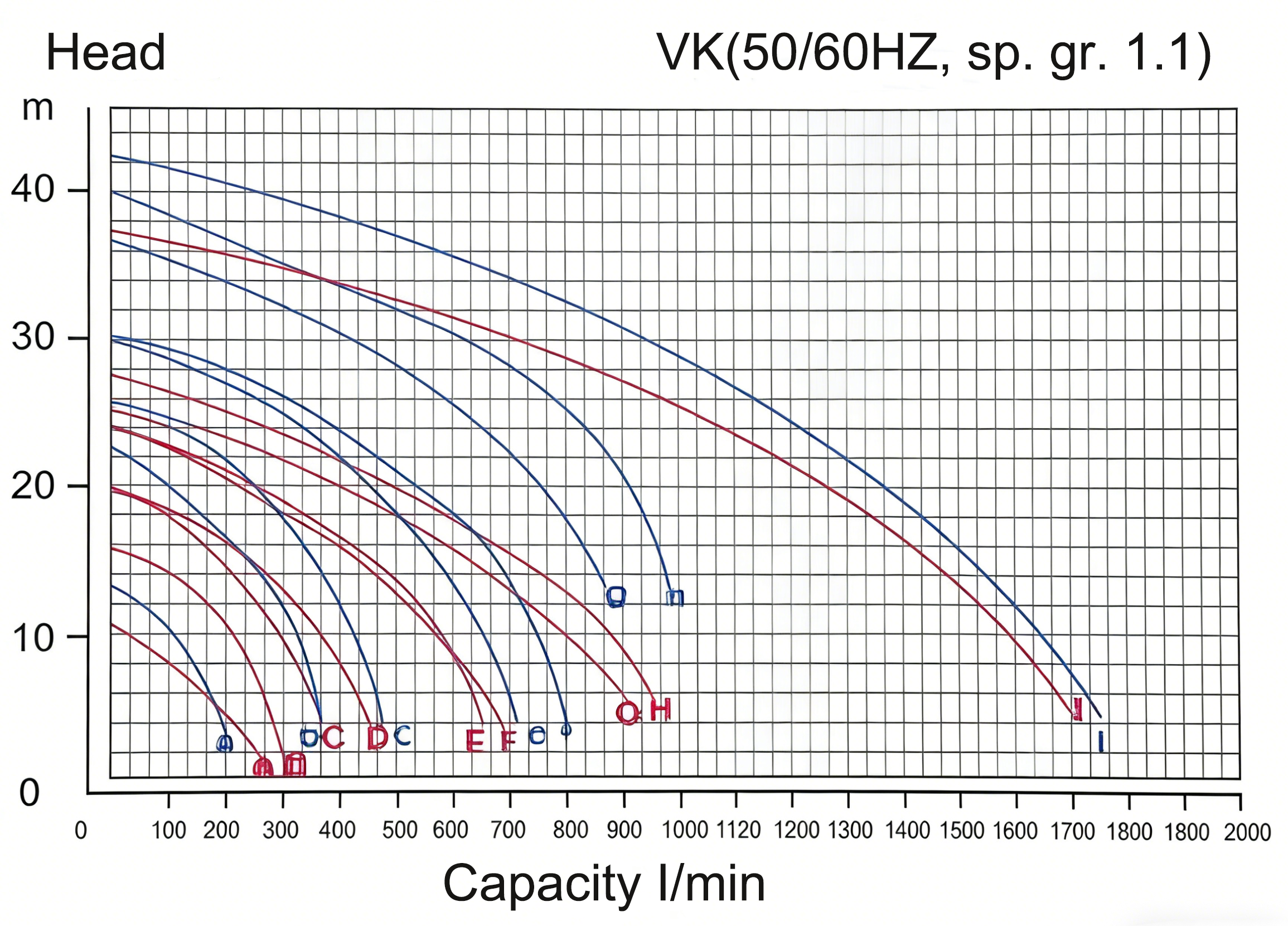

Model | No. | Diameter(mm) Suction*Discharge | Motor HP | |
|---|---|---|---|---|
KD-40VK-1 | A/a | 50*40 | 1 | |
KD-40VK-2 | B/b | 50*40 | 2 | |
KD-40VK-3 | C/c | 50*40 | 3 | |
KD-60VK-3 | D/d | 65*50 | 3 | |
KD-50VK-5 | E/e | 65*50 | 5 | |
KD-65VK-5 | F/f | 80*65 | 5 | |
KD-65VK-7.5 | G/g | 80*65 | 7.5 | |
KD-65VK-10 | H/h | 80*65 | 10 | |
KD-100VK-15 | I/i | 100*100 | 15 | |
KD-50VP-3 | D/d | 65*50 | 3 | |
KD-50VP-5 | E/e | 65*50 | 5 | |
KD-65VP-7.5 | G/g | 80*65 | 7.5 | |
KD-65VP-10 | H/h | 80*65 | 10 | |
KD-100VP-15 | I/i | 100*100 | 15 | |
KD-100VK-205VF | J/j | 100*100 | 20 | |
KD-125VK-255VF | K/k | 125*125 | 25 | |

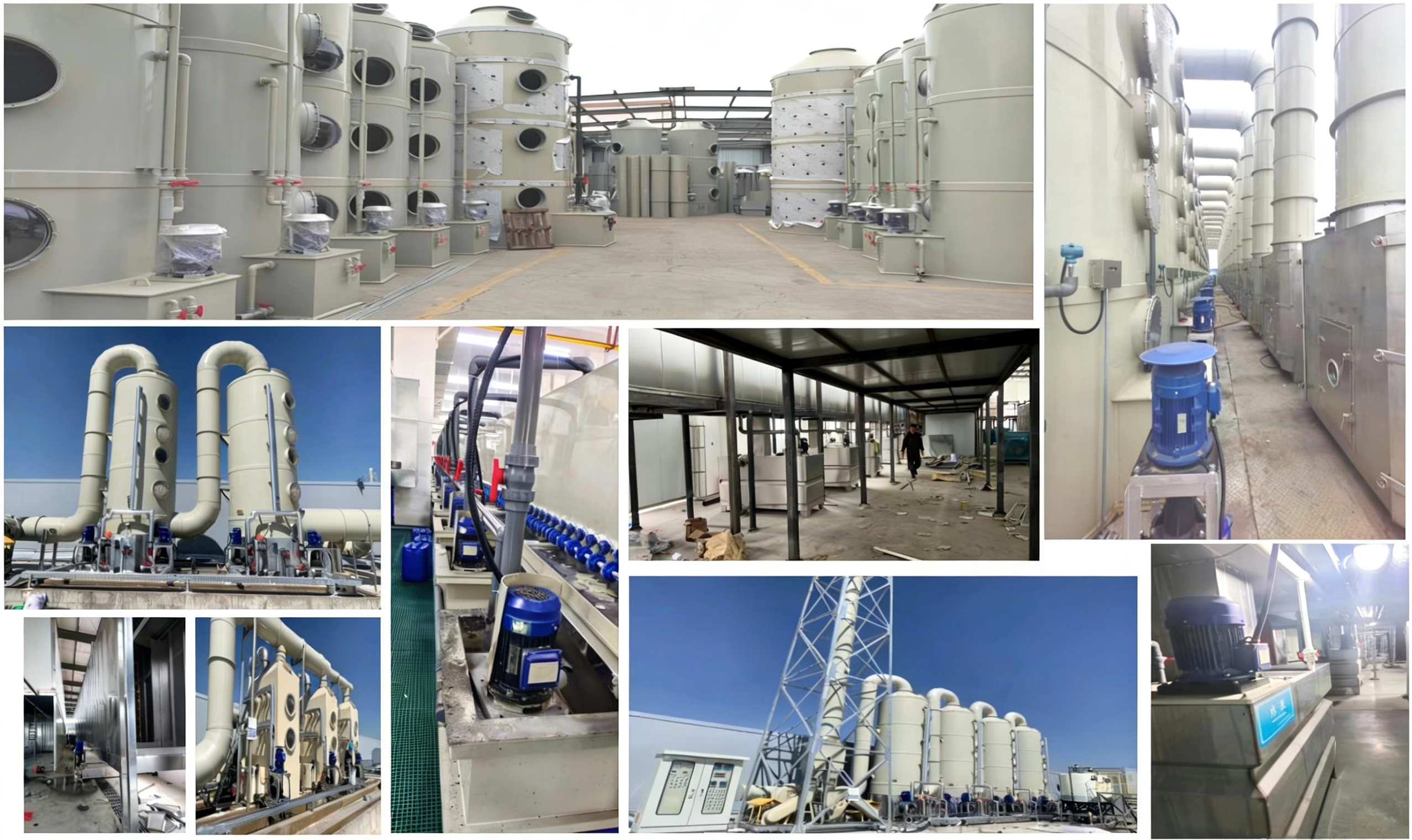

Nickel plating and metal finishing: Bath filtration and solution circulation
Etching and cleaning equipment: Chemical spray systems and rinse water circulation
Waste gas treatment: Scrubber liquid circulation and acid neutralization
Industrial cooling systems: Process water circulation and heat exchanger feed
Pharmaceutical manufacturing: Aggressive chemical transfer and filtration processes
Explosion-proof motor options (S3-D2G4) for hazardous environments
Epoxy-coated motors for enhanced corrosion resistance in severe acid gas conditions
Hastelloy-C springs and silicon carbide seals for highly corrosive applications
Custom impeller designs to optimize flow and head for specific process requirements
Integrated filtration systems for combined pumping and filtration operations
Every nickel plating filtration pump is manufactured under ISO 9001 quality management systems, with rigorous testing at every production stage. Our state-of-the-art testing facilities ensure each pump meets or exceeds published performance specifications. We provide comprehensive after-sales support, including on-site installation supervision, preventive maintenance programs, and emergency repair services. All products come with a 12-month warranty, and our global service network ensures fast access to spare parts and technical assistance worldwide.
Yes, we provide S3-D2G4 explosion-proof motors as a standard option for use in flammable and explosive industrial environments.
For normal operating conditions, we recommend quarterly inspections and annual seal replacement. Our technical team can provide customized maintenance schedules based on your specific application.
Yes, the open impeller design allows passage of small solid particles. For high solids content applications, we recommend installing a pre-filter to prevent clogging.
