KX

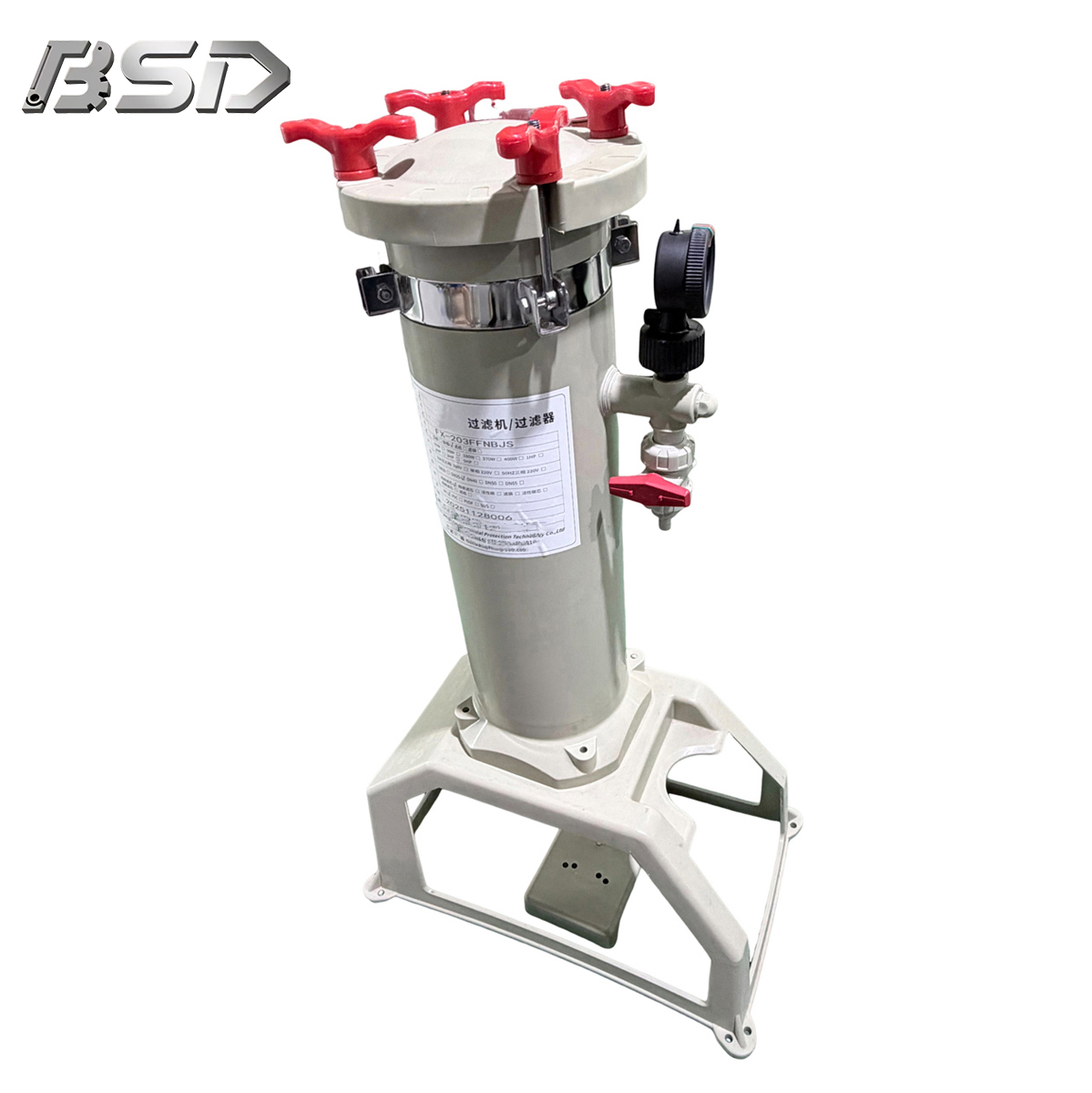

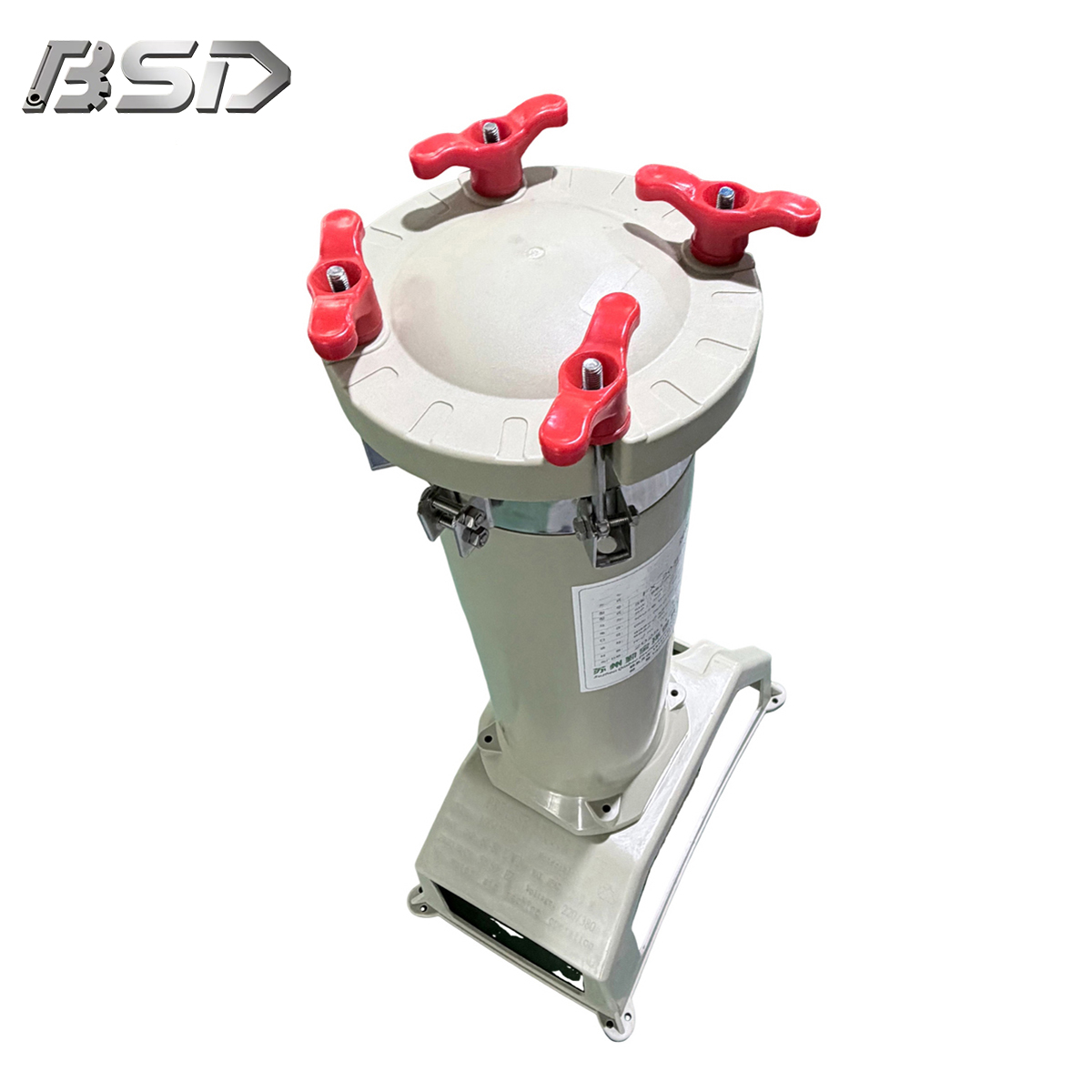

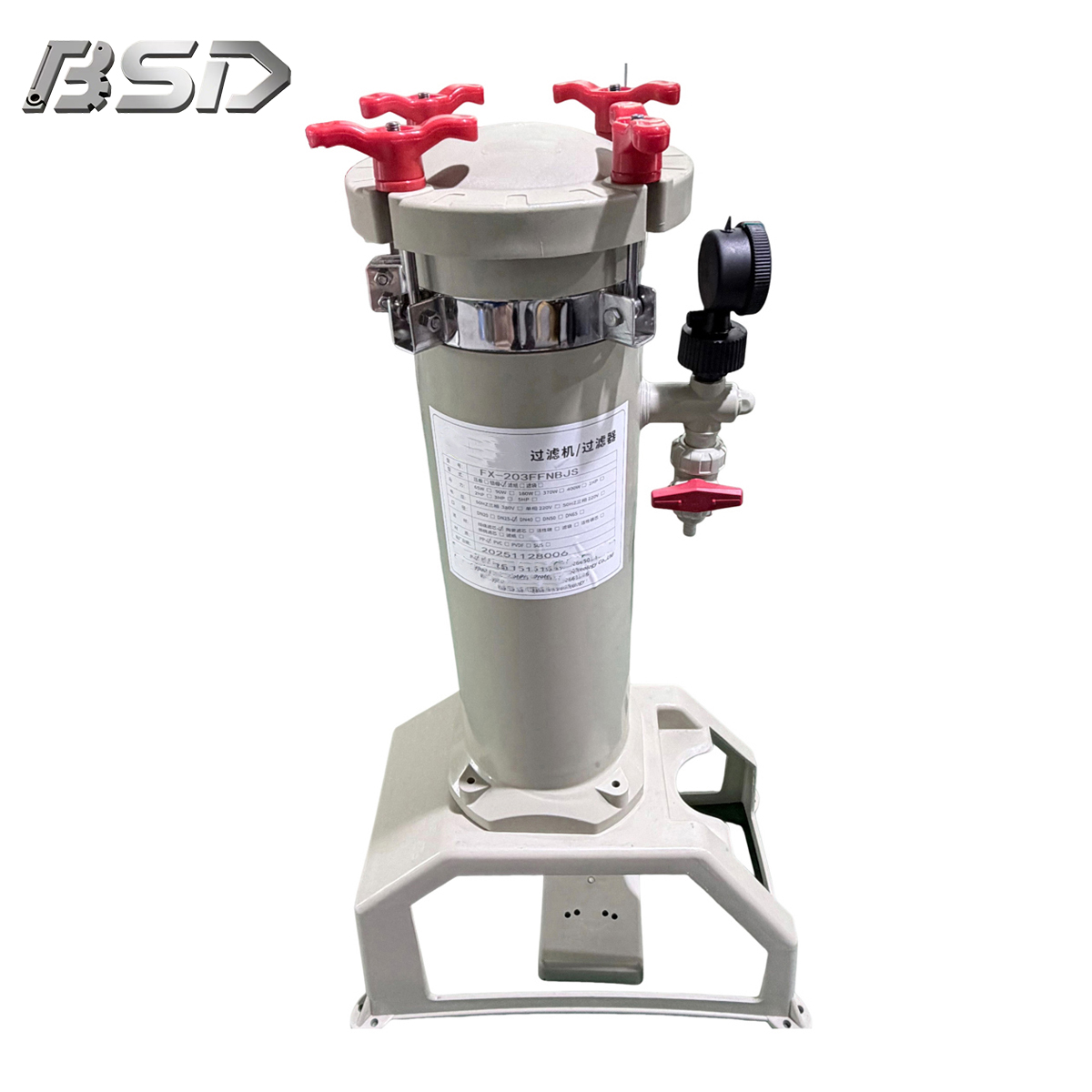

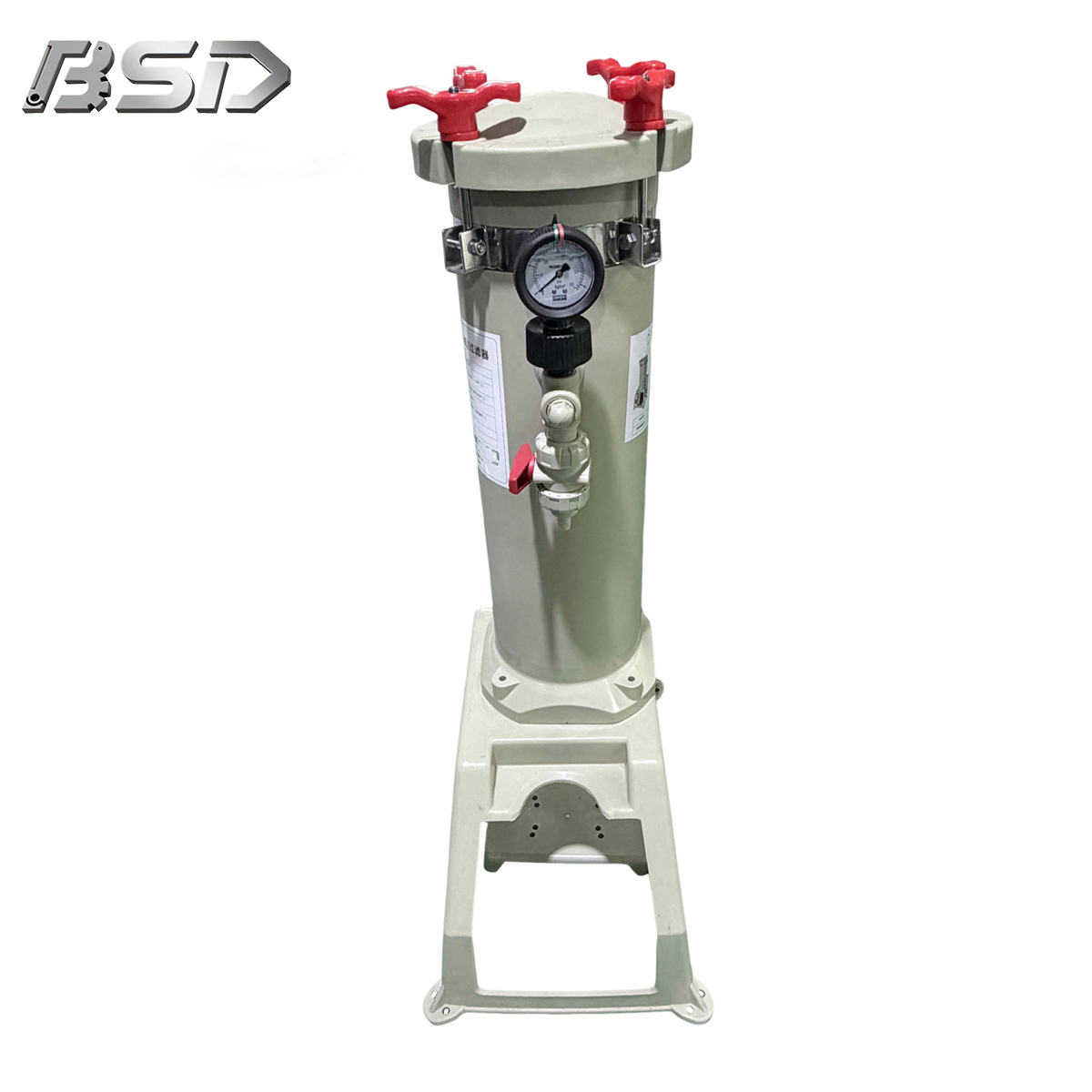

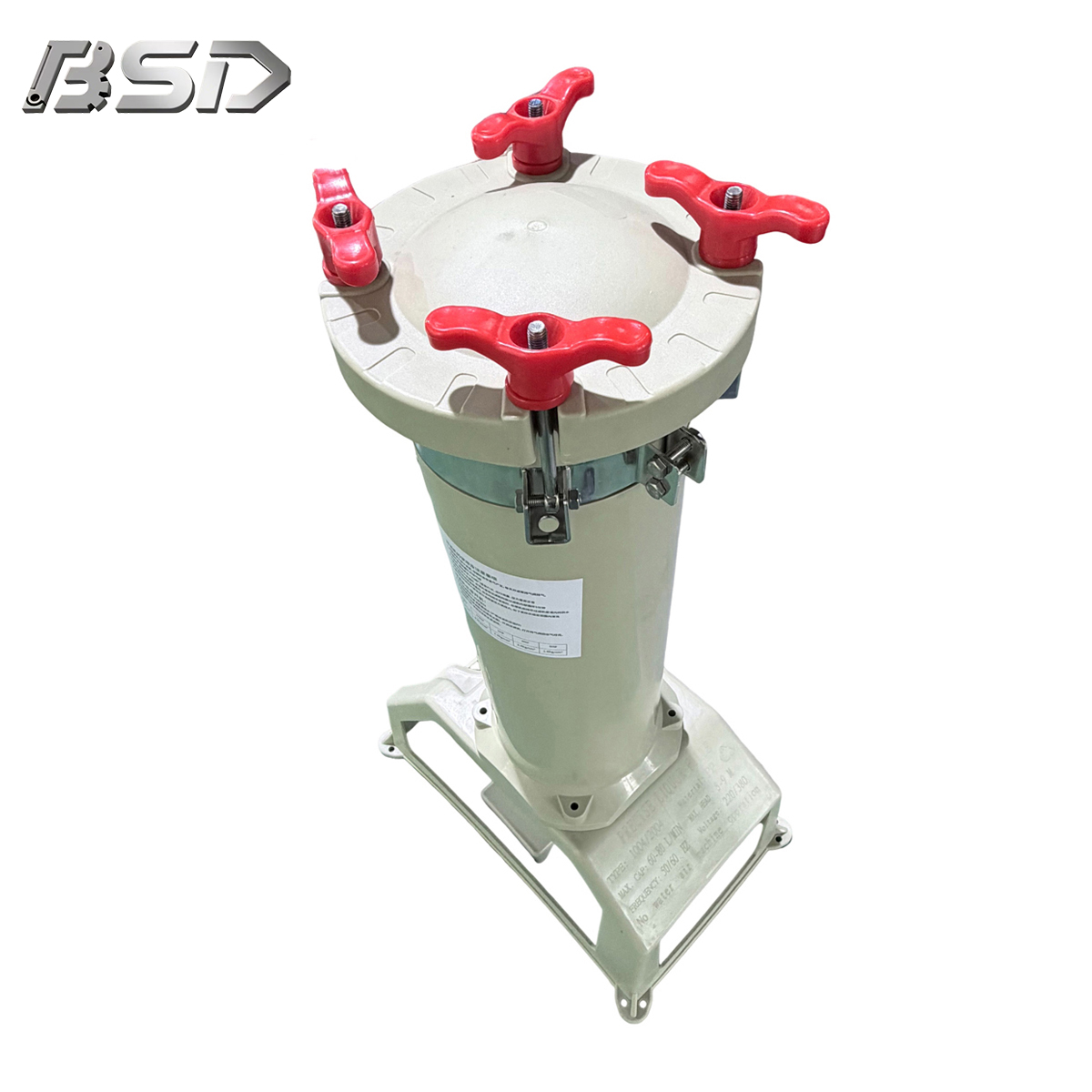

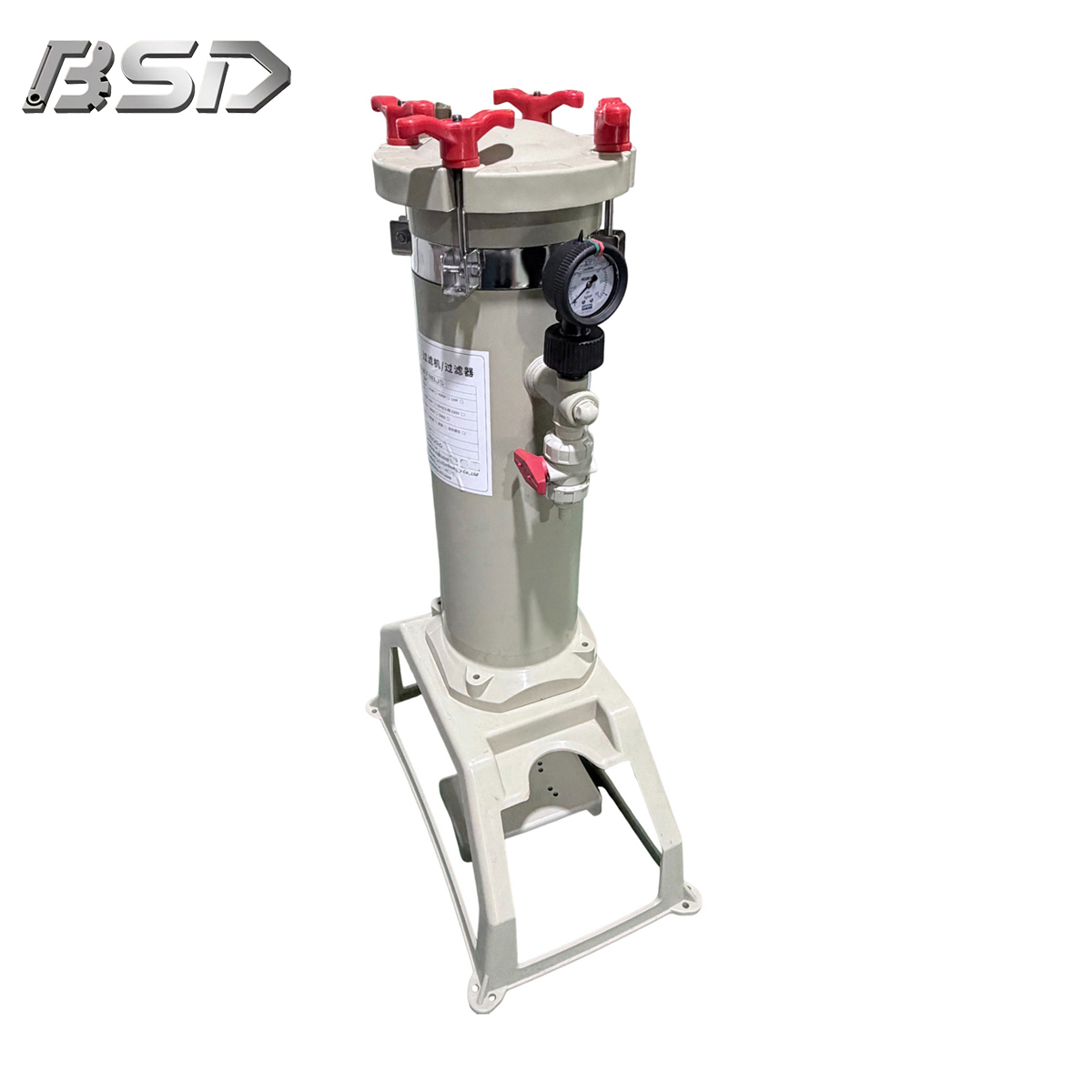

The KX series precision cotton core chemical liquid filter is a high-performance industrial filtration system purpose-built for chemical processing and wastewater purification. Developed by Suzhou BSD Environmental Protection Technology Co., Ltd., this unit features a one-piece molded filter housing and foot base, eliminating structural weaknesses and minimizing leakage risks. Engineered to handle aggressive corrosive fluids, it supports multiple filter media configurations to adapt to diverse industrial filtration demands. Renowned for its high precision, operational reliability and low maintenance requirements, it has become a trusted solution for industrial facilities seeking consistent liquid quality control.
The integrally molded filter barrel and base use advanced injection molding technology, resulting in the industry's fewest weld points. This drastically reduces false welding leakage hazards, ensuring safe containment of hazardous chemical liquids and protecting both personnel and the environment.
The system accommodates six distinct filter media types: cotton core (threaded cap/plate), stacked cartridge, starfruit cloth, paper filter and bag filter. This versatility allows precise matching to specific liquid properties and filtration precision needs, from coarse particle removal to ultra-fine purification.
Optional magnetic drive pumps (MP/MPX series) or self-priming pumps (KB series) feature a shaftless seal design that completely eliminates fluid leakage and air ingress. This not only enhances operational safety but also extends component lifespan by preventing corrosive vapor damage.
With an expanded filtration area and optimized flow path design, the KX series chemical solution filtration system delivers exceptional particle removal efficiency. It effectively captures fine contaminants down to micron levels, ensuring consistent product quality and protecting downstream equipment from abrasion and clogging.
The modular design enables tool-free filter element replacement and routine maintenance. All standard components are readily accessible, minimizing downtime and reducing long-term operational costs for industrial facilities.
Parameter | KX-104 | KX-204 |
|---|---|---|
Pump Motor (50/60Hz) | 150/180W (MP/MPX) | 255/255W (MP/MPX) |
Threaded Cap Cartridge (B Type) | 10×4 | 20×4 |
Paper Filter (P Type) | 129×23 PCS | 129×46 PCS |
Bag Filter (U Type) | 04×9 L | 4×15 L |
Suitable Tank Volume | 600 L | 800 L |
Nominal Flow Rate | 60 L/min | 80 L/min |
Filtration Area (Paper) | 0.3 m² | 0.6 m² |
Filtration Area (Bag) | 0.5 m² | 1.0 m² |
Inlet/Outlet Size | 1 inch | 1 inch |
Dimensions (L×W×H) | 573×360×900 mm | 573×360×1185 mm |
Net Weight | 28 kg | 30 kg |

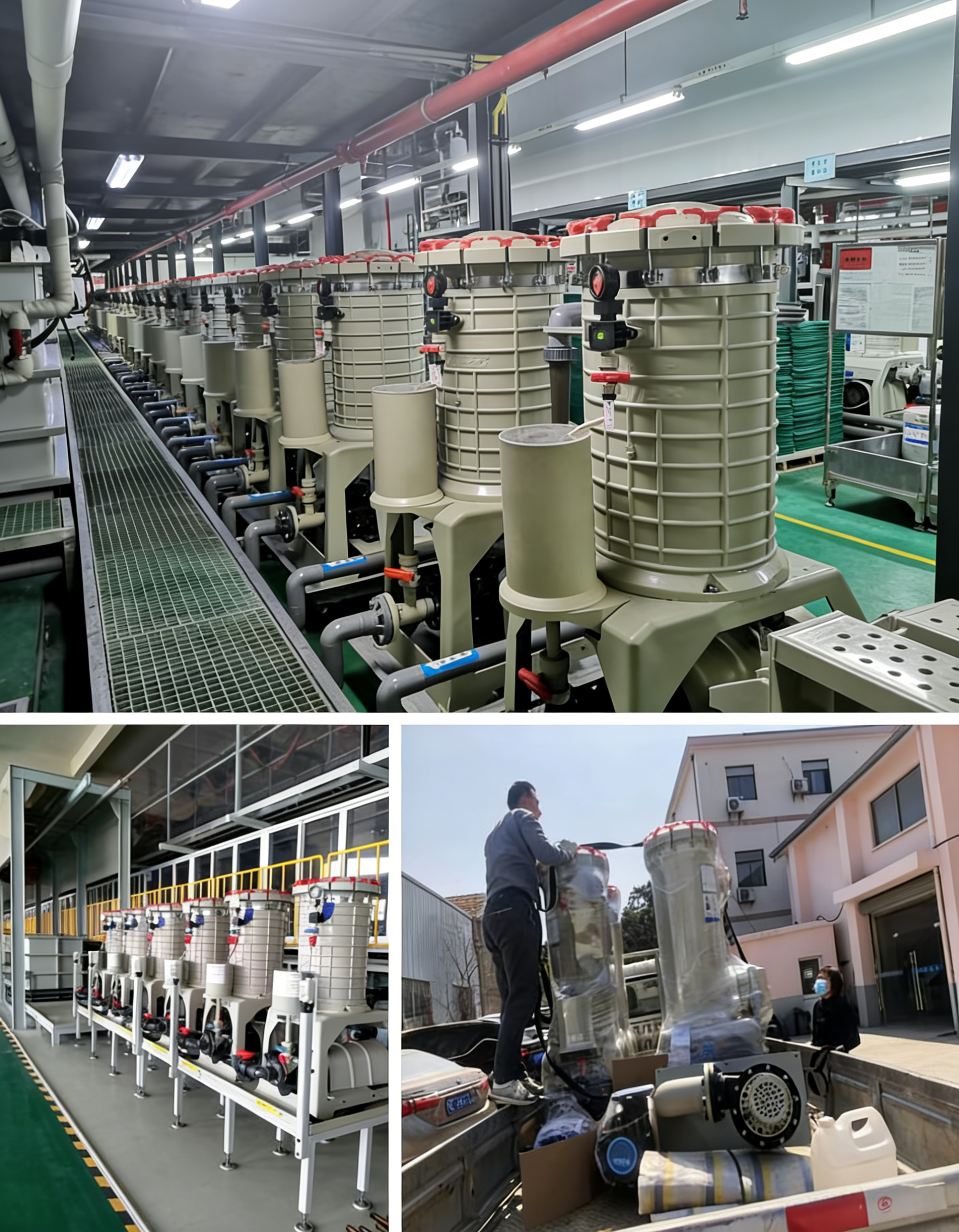

The KX series industrial wastewater filter serves a broad spectrum of industrial sectors:
Electroplating bath filtration (nickel, copper, gold and silver plating solutions)
Semiconductor manufacturing (photoresist, developer and etchant purification)
PCB production (etching solution, cleaning agent and plating bath filtration)
Chemical processing (acid, alkali and organic solvent filtration)
Surface treatment (anodizing, passivation and conversion coating solutions)
Medical device manufacturing (pure water and reagent filtration)
Solar photovoltaic (silicon wafer cleaning solution processing)
We provide comprehensive tailored chemical filtration solutions to address unique industrial requirements:
Filter housing materials: PP (F), CPVC (A), PVDF (P)
Inlet/outlet configurations: free-flow (U), flange (F); JIS, DIN, ANSI standards
Seal materials: NBR (N), VITON (V) for different chemical compatibilities
Bundle ring materials: SUS 304 (S), titanium (T) for highly corrosive environments
Pump type selection: magnetic drive or self-priming based on system requirements
Custom filter media combinations for specialized applications
All KX series filters undergo rigorous quality control inspections at every production stage, adhering to international industrial standards. Our team of experienced engineers provides expert pre-sales consultation, system design support and post-installation technical assistance. We offer fast response times for technical inquiries, on-site maintenance services and a comprehensive warranty program to ensure long-term reliable operation of your filtration equipment.
Temperature limits vary by housing material: PP up to 75°C, CPVC up to 80°C, and PVDF up to 90°C. For higher temperature applications, please contact our technical team for customized material solutions.
Yes, when equipped with appropriate housing and seal materials, it can safely handle most concentrated acids, alkalis and organic solvents. Our technical team will recommend the optimal material combination based on your specific chemical composition and operating conditions.
Standard models are in stock and can be shipped within 3-5 business days. Customized configurations generally require 7-15 business days, depending on the complexity of modifications.
We offer detailed installation manuals and video tutorials. For large-scale projects, we can arrange professional technicians to provide on-site installation guidance and operator training upon request.
