FX

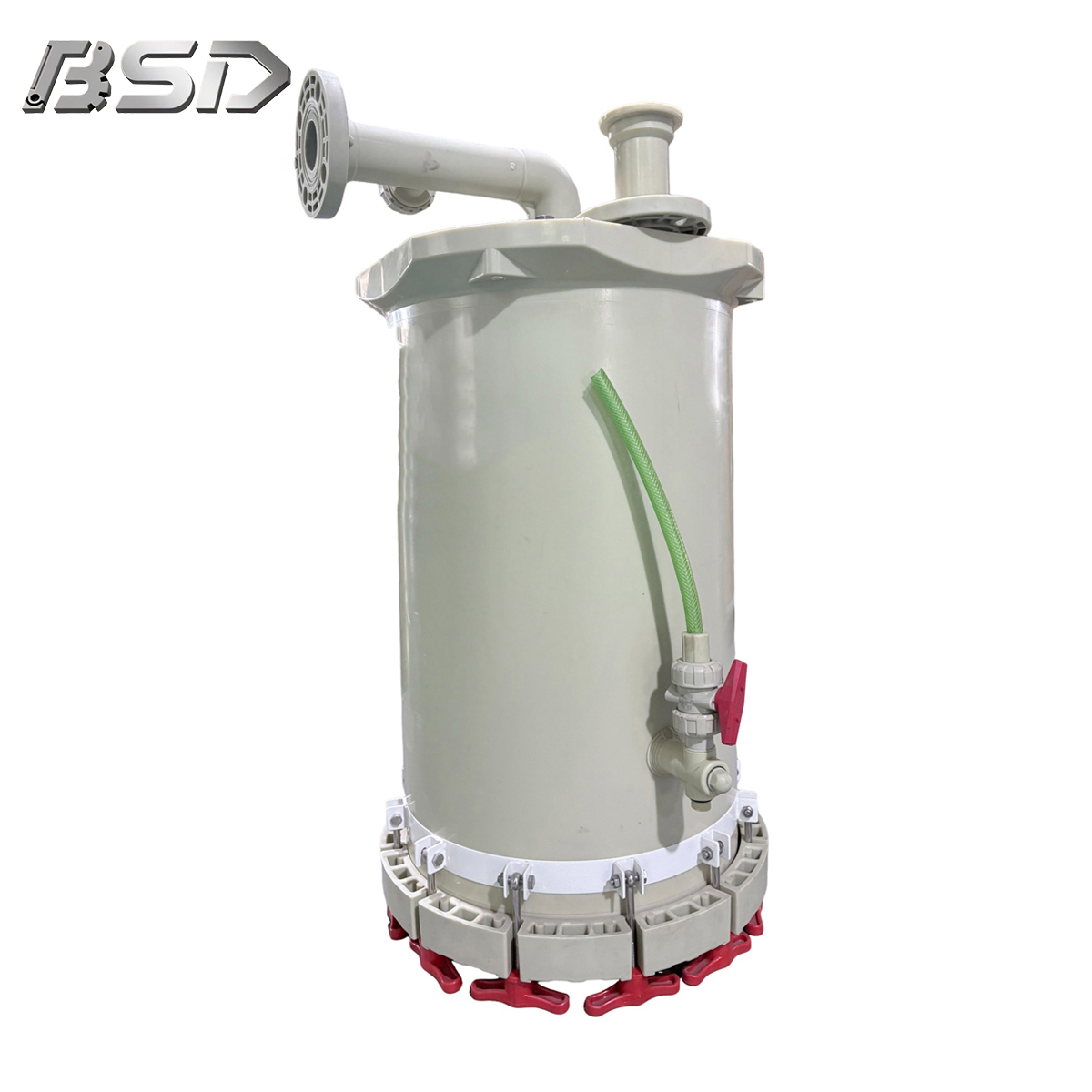

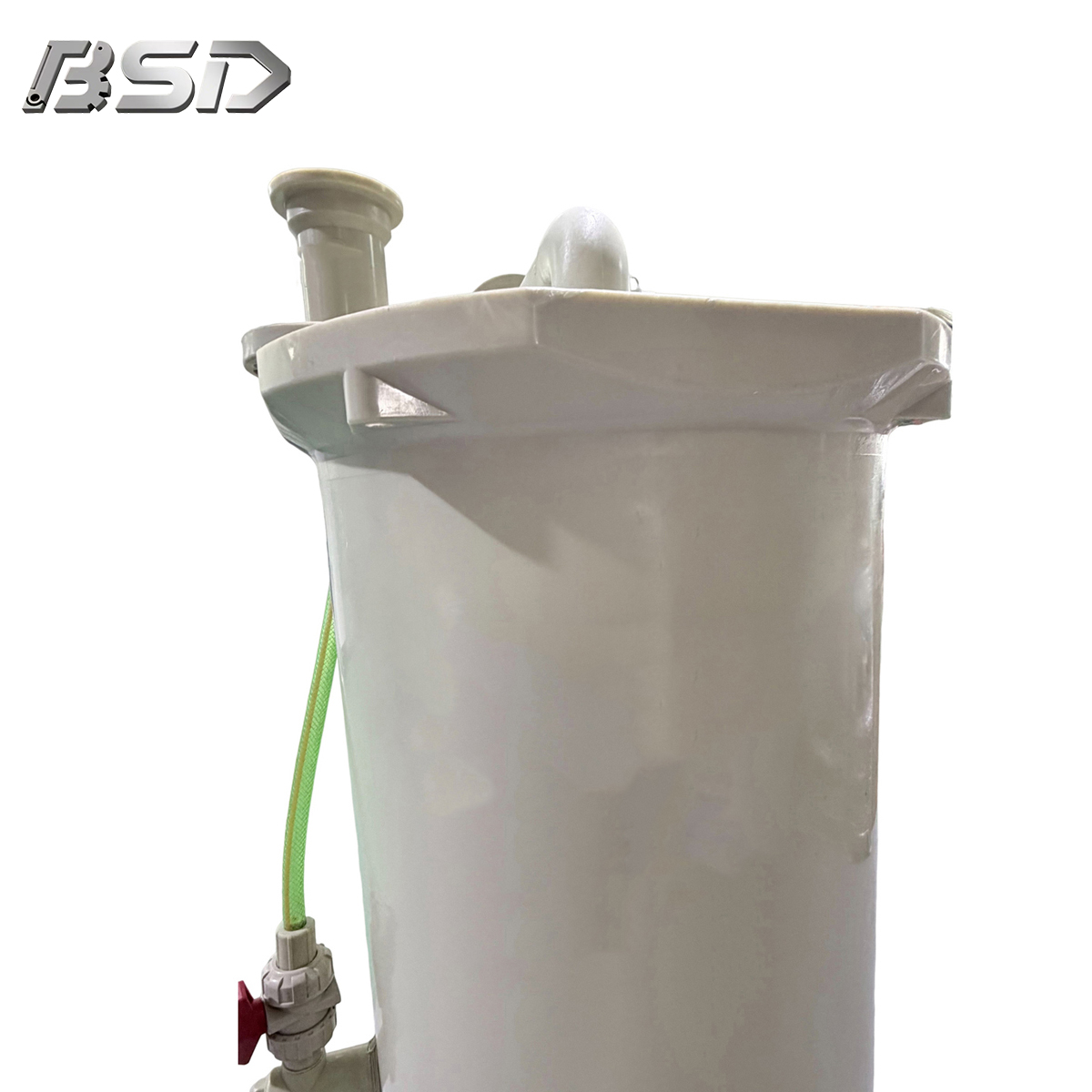

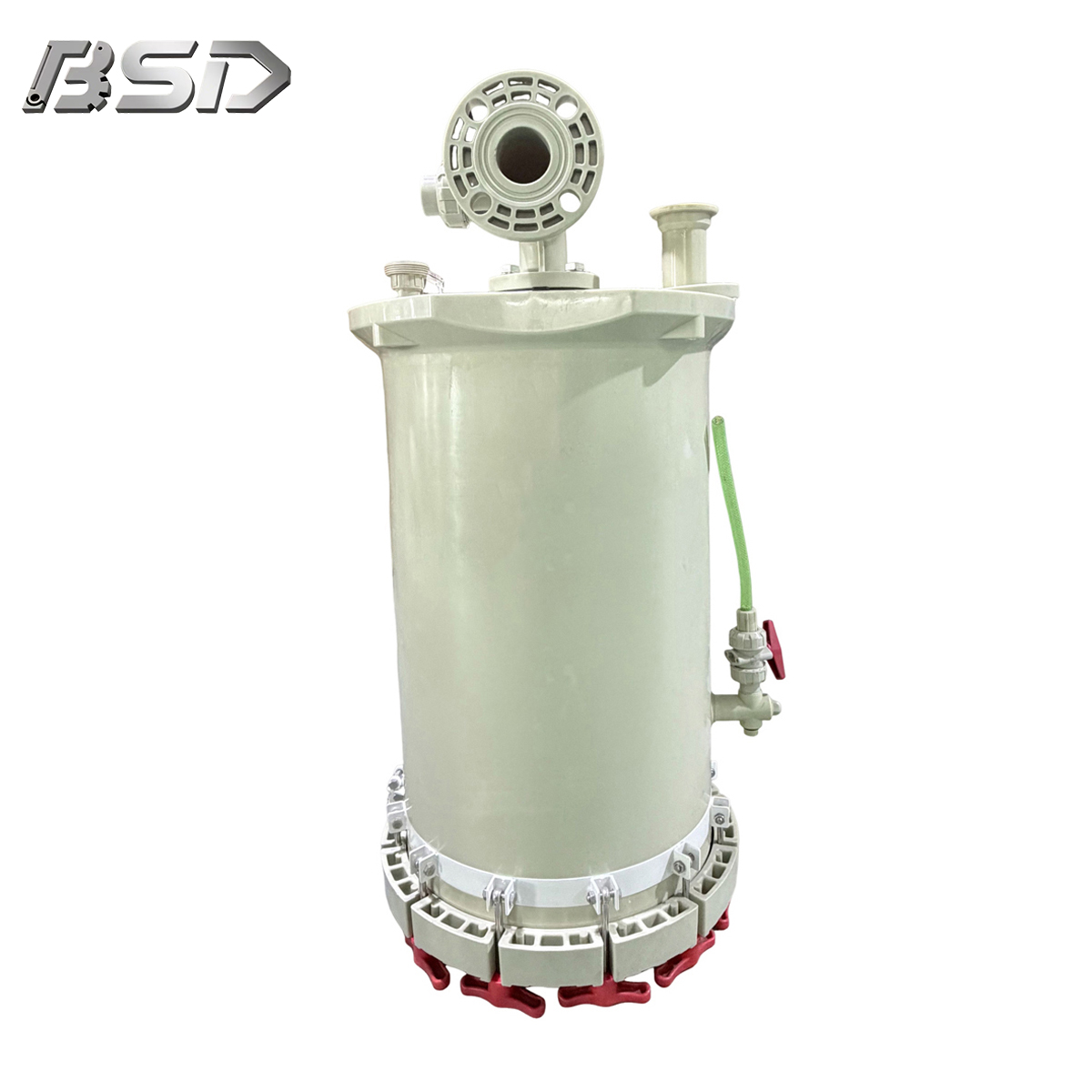

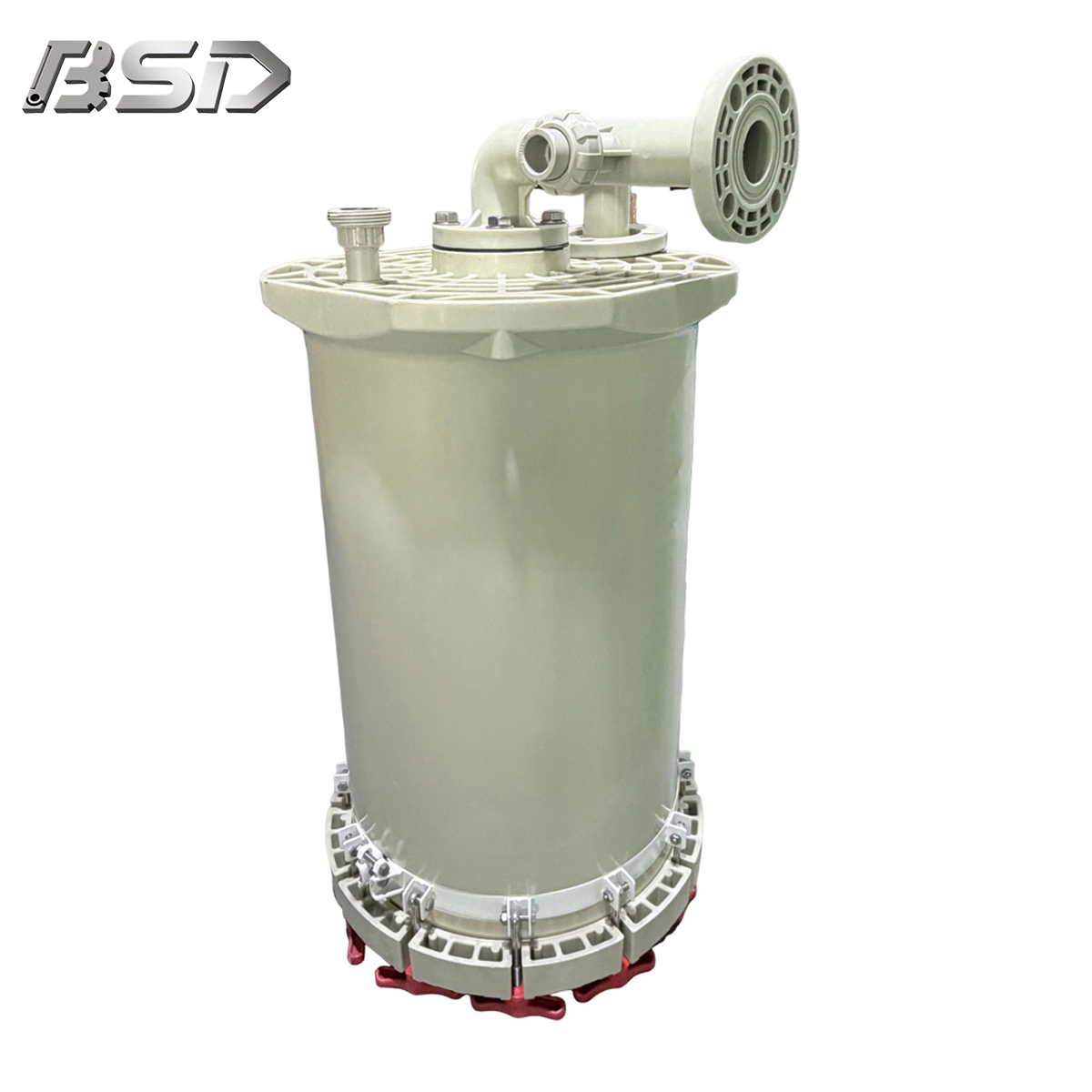

BSD FX Series is a high-performance chemical liquid filtration system engineered for industrial applications requiring reliable separation of impurities from corrosive and non-corrosive liquids. Featuring one-piece molded construction with industry-leading minimal weld points, these filters deliver exceptional durability and leak-free operation, eliminating costly downtime and environmental risks. Available in multiple corrosion-resistant materials and filter media configurations, they are ideal for electroplating, electronics manufacturing, chemical processing, wastewater treatment, and pure water circulation. Manufactured by Suzhou BSD Environmental Protection Technology, a trusted provider of acid and alkali resistant fluid handling solutions for industrial facilities worldwide.

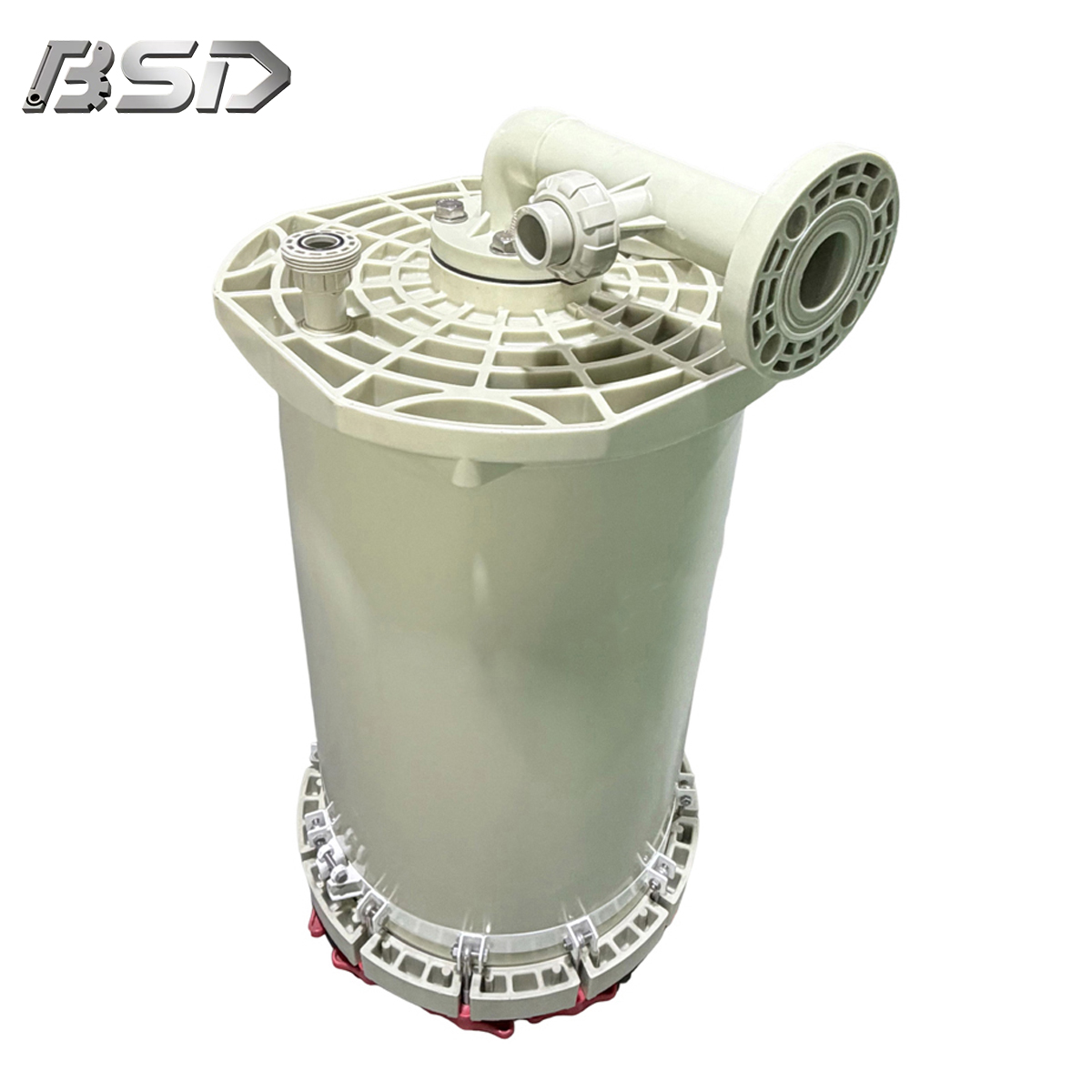

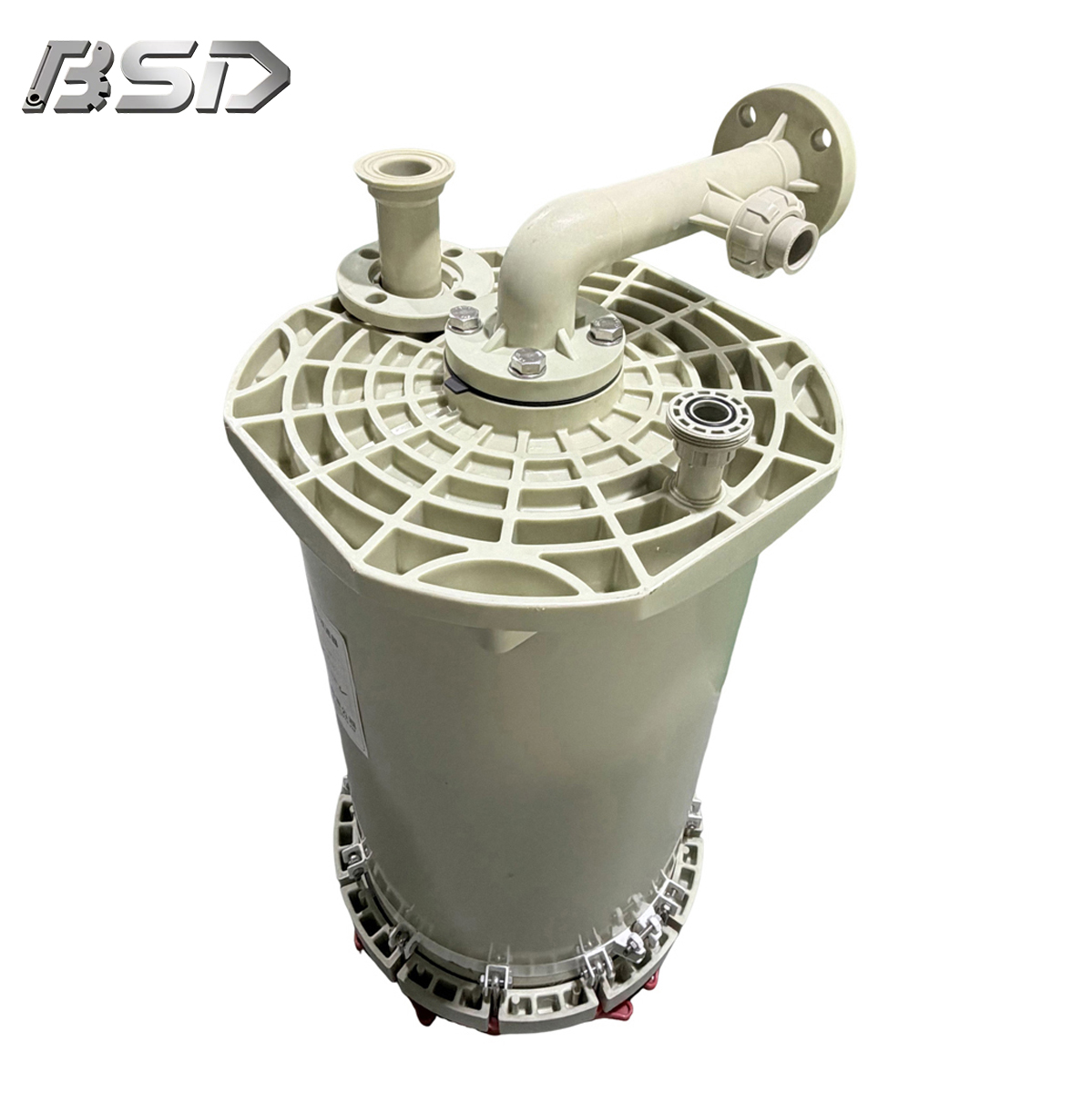

One-piece molded filter housing and base with integrated reinforcing ribs for enhanced structural strength and pressure resistance
Industry-leading minimal weld points, significantly reducing the risk of false welding leaks that can cause chemical spills and equipment damage
Multiple material options (PP, CPVC, PVDF) to match different chemical properties and operating temperatures, ensuring long-term reliability in harsh environments
Optional titanium bundle rings for superior corrosion resistance in highly aggressive chemical conditions
Comprehensive filter media options: cartridge (threaded cap), cartridge (clamp), stacked cartridge, Yangtao cloth, paper, and bag filters to meet various filtration precision requirements
Simple and intuitive design for easy operation and maintenance, allowing quick filter replacement to minimize production downtime
Standard accessories include inlet/outlet unions or flanges with gaskets and PVC screws, ensuring hassle-free installation
Multiple inlet/outlet types (union, flange) and international standards (JIS, DIN, ANSI) to seamlessly integrate with existing piping systems
Optional FRP base for added stability and corrosion protection in wet and corrosive environments
Compatible with various pump types including MPX magnetic drive pumps and KB self-priming pumps for complete system integration
Customizable filter sizes and configurations to fit specific space and flow rate requirements
Low initial investment compared to stainless steel alternatives, with comparable performance in most chemical applications
Minimal maintenance requirements due to robust construction and high-quality components
Long service life with readily available spare parts, reducing total cost of ownership over time
Parameter | Details |
|---|---|
Model Range | FX-104 (10"×4 PCS), FX-204 (20"×4 PCS), FX-206 (20"×6 PCS), FX-208 (20"×8 PCS), FX-212 (20"×12 PCS), FX-218 (20"×18 PCS), FX-318 (30"×18 PCS) |
Filter Housing Material | F - PP, A - CPVC, P - PVDF |
Inlet/Outlet Type | U - Union, F - Flange |
Seal Material | N - NBR, V - VITON |
Filter Media Type | B - Cartridge (threaded cap), C - Cartridge (clamp), T - Stacked cartridge, K - Yangtao cloth, P - Paper, U - Bag |
Inlet/Outlet Standard | J - JIS, D - DIN, A - ANSI |
Bundle Ring Material | S - SUS 304, T - Titanium |
Optional Features | FRP base, motor protection cover, sight glass, inlet/outlet hoses, bottom valves, check valves |
FX Series chemical liquid filters are widely used across various industrial sectors for critical filtration processes:
Electroplating Industry: Filtration of electroplating solutions, nickel plating baths, copper plating baths, chrome plating baths, and passivation solutions
Chemical Processing: Filtration of acids, alkalis, solvents, chemical reagents, and process liquids
Electronics Manufacturing: Pure water circulation, PCB etching solution filtration, semiconductor cleaning processes, and LED production
Environmental Protection: Wastewater treatment, exhaust gas scrubbing, and industrial effluent filtration
Surface Treatment: Anodizing, powder coating pretreatment, and metal finishing processes
Other Industries: Medical device manufacturing, pharmaceutical production, solar photovoltaic, and battery manufacturing
We understand that every industrial process has unique requirements. Our experienced technical team provides comprehensive customization services to meet your specific needs:
Custom filter housing materials based on detailed chemical compatibility analysis
Tailored filter media configurations for different particle sizes and filtration precision requirements
Special inlet/outlet sizes and standards to match your existing piping systems
Optional accessories including switches, bottom valves, check valves, sight glasses, and motor protection covers
Complete turnkey solutions including pump and filter system integration for seamless installation and operation
All FX Series filters undergo rigorous quality testing before shipment to ensure compliance with international standards
Our team of experienced engineers provides professional pre-sales consultation to help you select the right filter for your application
Fast and reliable after-sales support with technical assistance available worldwide
Prompt delivery times and comprehensive spare parts supply to minimize downtime
Customized maintenance plans to extend equipment lifespan and optimize performance
The maximum operating temperature depends on the housing material: PP up to 75°C, CPVC up to 80°C, and PVDF up to 90°C. For higher temperature applications, please contact our technical team for customized solutions.
For most electroplating applications, cartridge filters (threaded cap or clamp type) are recommended for their high filtration efficiency and easy maintenance. Bag filters are ideal for high flow rate applications with larger particle sizes.
Yes, when equipped with PVDF housing and VITON seals, the FX series can handle most high-concentration acids and alkalis. We recommend consulting our chemical compatibility chart or contacting our technical team for specific chemical recommendations.
Filter element replacement frequency depends on the concentration of impurities in the liquid and the required filtration precision. Generally, filter elements should be replaced every 2-4 weeks for electroplating applications.
Yes, we offer fully customized filtration solutions tailored to your specific process requirements. Our technical team will work closely with you to design a filter system that meets your exact needs.
