MPX

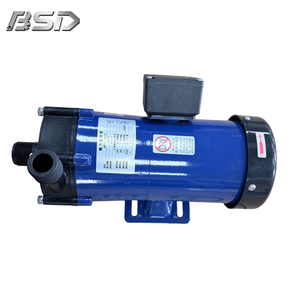

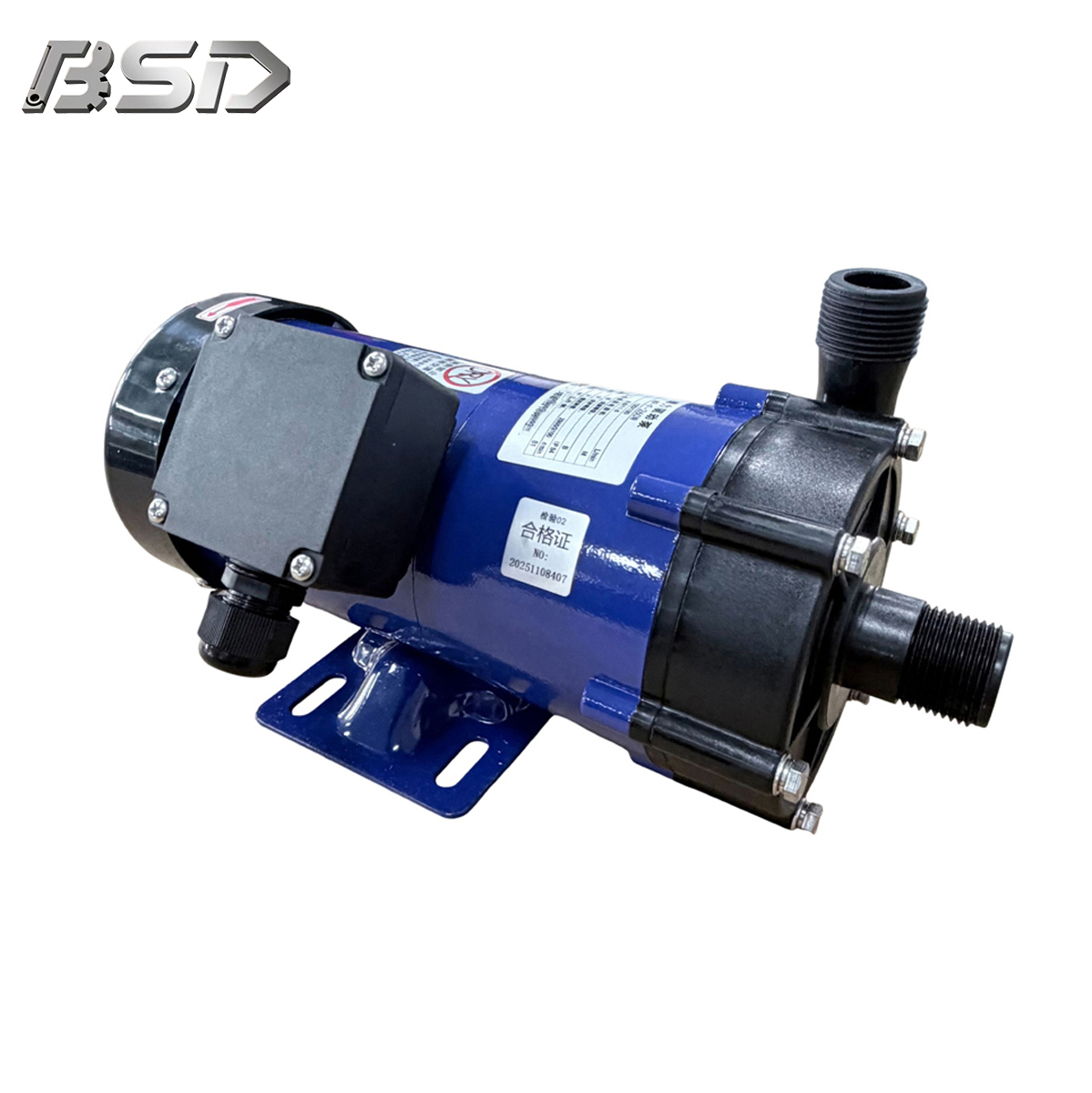

BDS is a professional manufacturer specializing in acid and alkali resistant chemical pumps and chemical liquid filters. Our MPX series magnetic drive pump is engineered with advanced magnetic coupling technology, featuring a revolutionary seal-less design that completely eliminates chemical leakage risks. This leak-proof magnetic drive pump is ideal for transferring various corrosive chemical liquids in industrial processes, providing reliable and safe fluid handling solutions for manufacturing facilities and process plants worldwide.
The MPX corrosion-resistant chemical pump adopts a coaxial centrifugal self-priming structure, ensuring stable operation and excellent hydraulic performance. It is available in multiple material options to accommodate different chemical properties and temperature requirements, making it a versatile choice for diverse industrial applications.
The seal-less magnetic drive design eliminates traditional mechanical seals, completely preventing chemical liquid leakage and environmental pollution. This feature is critical for handling toxic, flammable, or expensive chemicals, ensuring workplace safety and reducing material waste.
Constructed with high-quality engineering plastics, the acid and alkali resistant pump offers exceptional resistance to a wide range of corrosive media. Available pump body materials include PP (Polypropylene), GFRPP (Glass Fiber Reinforced Polypropylene), PVDF (Polyvinylidene Fluoride), and CFRETFE (Carbon Fiber Reinforced Ethylene Tetrafluoroethylene).
The high temperature magnetic pump can operate reliably across a broad temperature range:
PP/GFRPP: Up to 75°C
PVDF: Up to 90°C
CFRETFE: Up to 100°C (temperatures may vary depending on specific chemical properties)
The magnetic drive design eliminates seal wear and tear, significantly reducing maintenance requirements and downtime. The pump's robust construction and high-quality components ensure extended service life even in harsh industrial environments.
Model Number | MPX |
Pump Head Material | PP: Polypropylene |
F: Glass Fiber Reinforced Polypropylene (GFRPP) | |
P: Polyvinylidene Fluoride (PVDF) | |
E: Carbon Fiber Reinforced Ethylene Tetrafluoroethylene (CFRETFE) | |
Model Size Code | 20: 3/4" |
25: 1" | |
Motor Power | 7-180W; 8-260W |
Inlet/Outlet | S-SCREW H-HOSE |
Spindle | C: Ceramic |
S: Silicon Carbide (SIC) | |
Pubber | V-VITON; E-EPDM; H-HFKM; A-AFLAS |
Frequency | 5: 50Hz; 6: 60Hz |
Voltage | V11: 110V/1 phase |
V22: 220V/240V/1 phase | |
V38: 220V/380V/3 phase | |
V41: 208V/415V/3 phase | |
Specific Weight | 50Hz----------A-1.2 B-1.5 C-2.0 |
60Hz----------A-1.2 E-1.5 F-2.0 |

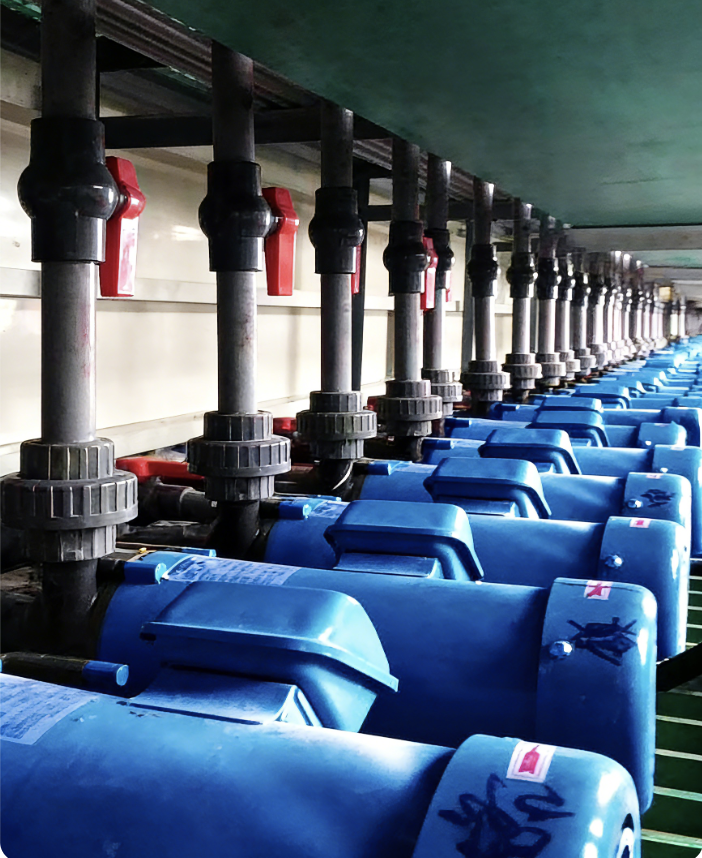

The MPX chemical liquid transfer pump is widely used in various industries that require reliable handling of corrosive fluids:
Environmental protection (wastewater treatment, waste gas treatment)
Electronics manufacturing (PCB, LED, semiconductor production)
Surface treatment and continuous electroplating
Chemical processing and pharmaceutical production
Coating and etching processes
Solar photovoltaic and battery manufacturing
Medical equipment and laboratory applications
We understand that every industrial process has unique requirements. Our engineering team provides comprehensive customization solutions for the MPX magnetic drive pump:
Custom pump body materials based on specific chemical compatibility
Tailored motor configurations (voltage, frequency, explosion-proof)
Special inlet/outlet connections (screw, hose, flange)

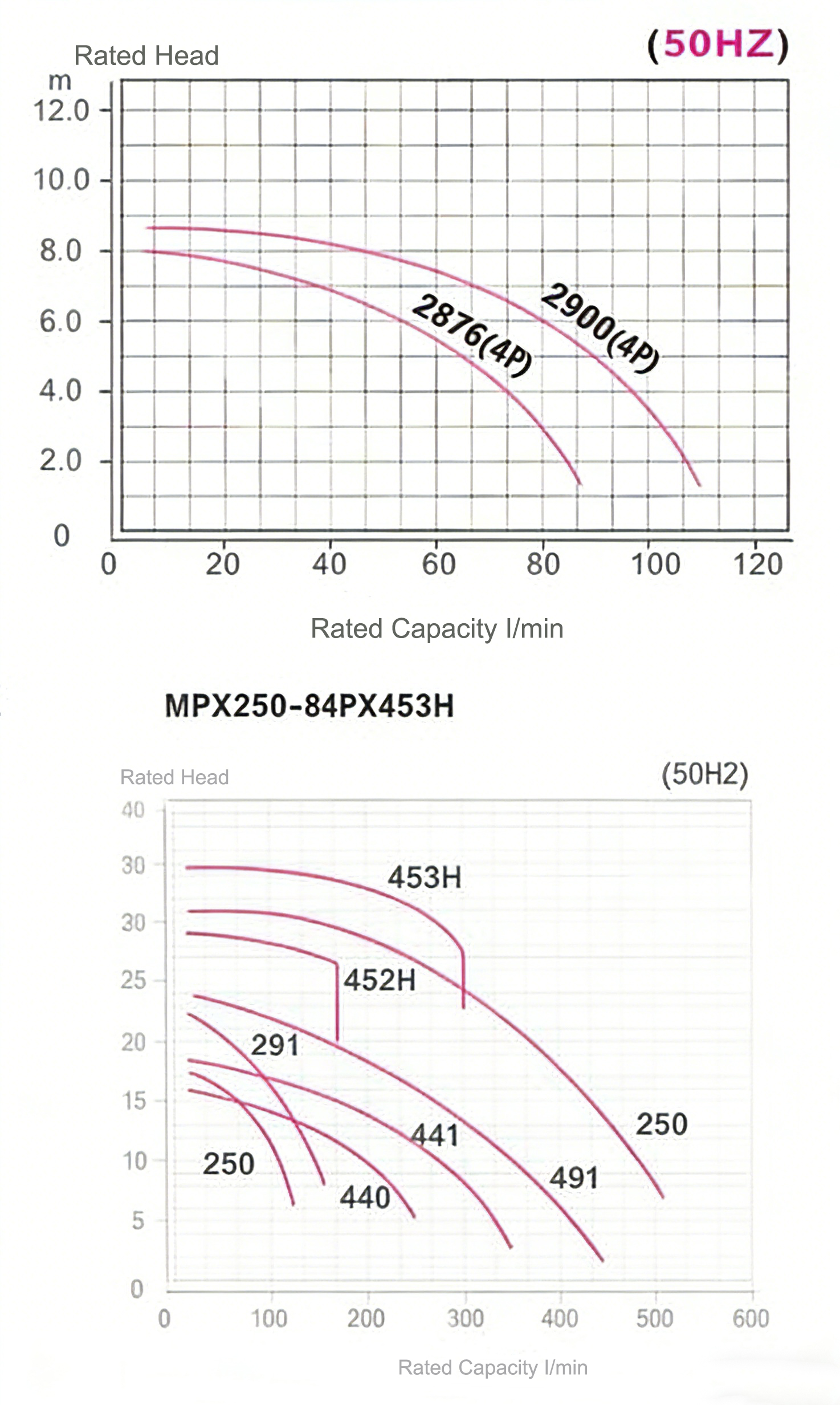

Customized performance curves to match exact flow and head requirements
Complete system integration with filtration and control equipment
All our MPX series pumps undergo rigorous quality testing before delivery, including hydraulic performance tests, leakage tests, and electrical safety tests. Our management, R&D, production, and after-sales teams have many years of experience in the chemical pump industry, ensuring the highest product quality and reliable service.
We offer a standard 12-month warranty on all products. Our dedicated technical support team provides prompt assistance with installation, operation, and maintenance issues. We also maintain a comprehensive spare parts inventory to minimize downtime for our customers.
The maximum operating temperature depends on the pump body material: PP/GFRPP up to 75°C, PVDF up to 90°C, and CFRETFE up to 100°C. For higher temperature applications, please contact our technical team for customized solutions.
Yes, the MPX corrosion-resistant chemical pump is specifically designed for corrosive fluid handling. We offer multiple material options to ensure compatibility with various acids, alkalis, and organic solvents. Please provide the chemical composition and concentration for material recommendation.
Yes, the MPX series features a self-priming design, which simplifies installation and operation. It can automatically prime without additional priming equipment, making it ideal for applications where the pump is located above the liquid level.
Yes, we provide S3-D2G4 pressure-resistant explosion-proof motors for use in potentially explosive atmospheres. Please specify this requirement when placing your order.
