Do hidden flaws keep compromising your metal components? Porosity in aluminum die casting doesn't just cause weak structures—it drains budgets and ruins entire production runs. In the fast-paced manufacturing sector, ignoring these microscopic voids often leads to catastrophic field failures. Fortunately, by implementing targeted strategies across part design, process parameters, and quality inspection, tooling engineers can effectively mitigate these imperfections.
Identify the Root Cause: Porosity is scientifically categorized into two distinct phenomena: gas porosity (caused by trapped air and vapors) and shrinkage porosity (caused by volumetric contraction during uneven cooling).
Design is the First Defense: Implementing uniform wall thickness, optimizing gating systems, and ensuring proper venting are critical design-for-manufacturability (DFM) factors.
Process Control is Essential: Strictly regulating injection speed, molten metal temperature, and die temperature on the foundry floor drastically minimizes internal cavities.
Advanced Inspection Guarantees Quality: Utilizing non-destructive testing like X-ray and CT scanning ensures that parts meet strict structural and pressure-tight requirements.
Partnering Matters: Selecting a manufacturing partner with advanced simulation and vacuum-assisted capabilities is crucial for achieving ultra-low defect standards.
Before tweaking parameters on the shop floor, product designers must grasp the underlying physics of these internal voids. In the realm of high pressure die casting, porosity isn't a singular issue. Rather, it is a symptom of two distinct physical phenomena. Correctly identifying whether a defect stems from gas entrapment or metal shrinkage is the mandatory first step toward a permanent fix.
Gas porosity appears when air, vapor, or other gases get trapped inside the mold cavity during the rapid injection phase. Because molten aluminum shoots through the gate at extreme speeds—often exceeding 40 meters per second—the flow easily turns turbulent. This chaotic movement folds air directly into the liquid metal before it can escape through the die vents.
Specifically, there are three primary culprits behind this trapped gas:
Ambient Air: The natural air occupying the empty die cavity right before the shot occurs.
Die Lubricants: Water-based or oil-based release agents sprayed onto the tool surface. When 680°C molten aluminum hits these lubricants, they instantly flash into steam, expanding rapidly to thousands of times their original volume.
Metallurgical Gases: Dissolved hydrogen gas naturally present within the molten aluminum, which precipitates out as the metal cools and solidifies.
When viewed under an X-ray or through destructive cross-sectioning, gas porosity looks like smooth, spherical bubbles. You will typically find them hovering near the part's surface or trapped in the upper sections of the tool where hot air naturally rises.
Conversely, shrinkage porosity is driven entirely by thermodynamics. As liquid aluminum cools and transitions into a solid state, it naturally contracts. Depending on the specific alloy used, this volumetric shrinkage ranges from 4% to 6%.
In a perfect casting scenario, the metal cools directionally from the furthest edges of the cavity back toward the gate. This allows the machine's intensification pressure to feed fresh liquid metal into the shrinking zones. However, real-world geometries are rarely perfect. Complex designs often create "hot spots"—isolated pockets of molten metal surrounded by thinner, already-frozen walls. Since these isolated pools cool last, and no fresh liquid can reach them, the metal literally pulls itself apart as it shrinks, leaving behind a jagged void.
Unlike the smooth bubbles caused by trapped gas, shrinkage porosity features irregular, sponge-like cavities. These flaws almost exclusively plague the thicker sections of the casting where heat lingers the longest.
Understanding the mechanical fallout of these microscopic voids is vital for procurement managers and engineers alike. Ignoring them can lead to catastrophic field failures. Therefore, achieving dense, reliable HPDC aluminum parts remains a non-negotiable requirement for high-quality manufacturing.
In load-bearing scenarios, consistency is everything. Voids act as internal stress concentrators. When external mechanical forces like tension or torsion hit the part, stress multiplies around the edges of these cavities. Over time, this localized strain breeds micro-cracks. In environments subjected to heavy vibration, such as automotive engine mounts or aerospace brackets, these cracks propagate rapidly and trigger sudden fatigue failure.

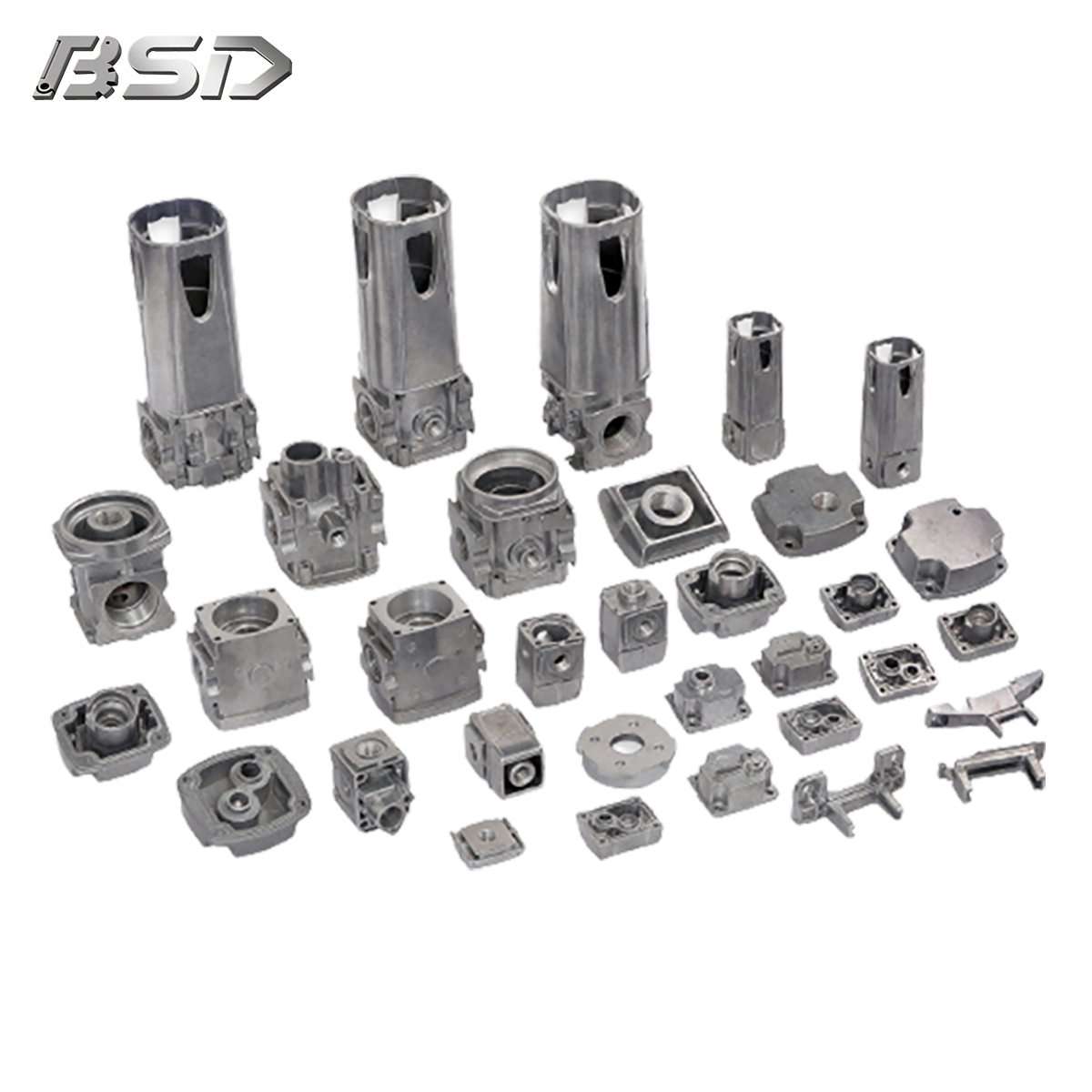

Many components must contain pressurized fluids or gases. Think of hydraulic pump housings, engine blocks, or pneumatic valve bodies. If shrinkage or gas voids link up to form an interconnected network across the casting wall, you get a direct leak path. Even a microscopic interconnected web will cause the part to fail pressure decay tests instantly, compromising the entire hydraulic system.
The damage isn't just structural; it ruins cosmetics and post-processing. If sub-surface gas bubbles sit just beneath the metal skin, they wreak havoc during secondary thermal operations like powder coating, painting, or T6 heat treatment. Once the part hits the curing oven, the trapped gas expands. The softened metal skin pushes outward, forming ugly, visible blisters on the surface.
The absolute most cost-effective time to fight porosity is before the tool steel is ever cut. Design for Manufacturability (DFM) lays the groundwork for low porosity die casting. By optimizing part geometry, engineers naturally guide metal flow and balance thermal distribution.
The ultimate defense against shrinkage is a uniform wall thickness. Sudden jumps from thick to thin sections disrupt directional cooling. The thin walls freeze fast, choking off the liquid metal supply to the thicker, still-contracting areas.
Whenever thick sections are unavoidable, designers must use gradual tapers and generous radii. Adding coring (hollow pockets) also helps reduce mass in bulky areas, equalizing the cooling rate across the entire component.
Think of the gating system as the plumbing that delivers molten metal into the cavity. Its design dictates whether the flow is smooth or chaotic. A gate that is too small sprays metal at high velocity, atomizing it and trapping massive amounts of air. Today, tooling engineers rely on advanced fluid flow simulation to design gates that push a solid, unified metal front, driving ambient air out ahead of the flow.
You cannot inject metal into a closed box without pushing the air out first. Vents are precision-machined micro-channels at the parting line that let air escape but freeze the metal before it flashes. Furthermore, engineers add overflow wells at the cavity edges. The first wave of metal usually carries the most air, oxidized skin, and excess lubricant. Overflows catch this contaminated sludge, leaving only dense, clean aluminum to form the actual part.
While a robust design sets the stage, daily execution on the foundry floor dictates the final outcome. Modern casting cells offer precise control over dozens of parameters. Calibrating these variables is essential to mitigate die casting defects and maintain consistent part density.
The injection stroke happens in phases. The "slow shot" gently gathers metal at the gate, while the "fast shot" rams it into the mold. Finding the sweet spot is tricky. Too slow, and the metal freezes prematurely. Too fast, and you get turbulent air entrapment. Right as the cavity fills, the machine delivers a massive hydraulic pressure spike known as intensification. This final squeeze crushes any trapped micro-bubbles and forces extra liquid into shrinking hot spots.
Thermodynamics rule the shop floor. If the holding furnace runs too hot, the aluminum absorbs excess atmospheric hydrogen. On the flip side, the steel mold must maintain a strict thermal equilibrium, typically between 150°C and 250°C. A cold die freezes the metal too early, blocking the intensification pressure. Foundries utilize internal cooling lines strategically placed inside the tool to extract heat from bulky sections, ensuring a perfectly balanced thermal gradient.
Release agents help eject the part and cool the tool, but they are notorious for causing gas porosity. When operators spray too much water-based lube, it pools in deep mold recesses. As hot aluminum hits that puddle, it flashes into expanding steam instantly. Modern facilities solve this by deploying automated micro-spray systems that apply a razor-thin, uniform film, eliminating liquid pooling entirely.
As the electric vehicle (EV) and aerospace sectors rapidly expand, the tolerance for internal casting defects is shrinking drastically. Today's structural components—like shock towers, battery housings, and mega-cast underbodies—demand ultra-high structural integrity to guarantee crashworthiness and facilitate extreme lightweighting. Consequently, the manufacturing landscape is witnessing a massive shift. Foundries are moving away from traditional trial-and-error setups, heavily adopting AI-assisted thermal monitoring and high-vacuum casting environments. In this highly competitive era, stringent defect control is no longer an optional premium; it is the fundamental baseline for any tier-one supplier.
Standard high pressure methods are highly efficient but inherently struggle with air entrapment. To bypass this limitation, industry leaders deploy vacuum-assisted technology, marking a massive leap in metallurgical quality control.
This system actively sucks air and gases out of the mold and shot sleeve milliseconds before injection. As the plunger advances, the vacuum drops internal mold pressure to under 50 millibars. A specialized valve stays open to draw out air, then snaps shut in a fraction of a millisecond right before the liquid metal hits it. By filling a true vacuum, the molten aluminum forms almost no gas bubbles.
Vacuum integration is often a strict prerequisite for load-bearing and safety-critical parts. Standard castings with trapped gas cannot survive high-temperature treatments like the T6 process, as the trapped gas expands and blisters the surface. Vacuum-assisted parts, however, boast such low porosity that they can be safely heat-treated, welded, and pushed to structural limits without warping.
Even with optimized tooling and vacuum systems, you must empirically verify the internal structure. Quality assurance relies on a blend of non-destructive and destructive testing to ensure aluminum die cast parts meet engineering specifications.
NDT lets inspectors check internal integrity without destroying high-value components.
X-Ray Inspection (Radiography): The traditional industry standard. Electromagnetic radiation passes through the metal, creating a 2D shadowgraph where less dense voids show up as dark spots.
CT Scanning (Computed Tomography): Representing the pinnacle of defect analysis, CT scanning takes hundreds of 360-degree X-ray slices to build a full 3D volumetric model. Engineers can digitally slice the part to pinpoint the exact spatial distribution of micro-porosity.
Ultrasonic Testing: Bounces high-frequency sound waves inside the casting. When waves hit an air-filled void, they reflect back, allowing technicians to calculate the defect's depth and size.
While NDT handles daily production monitoring, destructive testing provides physical metallurgical proof during initial tool validation.
Cross-Sectioning and Microscopic Analysis: Involves physically cutting the part at high-stress zones. The surface is polished, etched, and viewed under a metallurgical microscope to definitively label the voids as either spherical gas bubbles or jagged shrinkage tears.
Density Testing (Archimedes' Principle): Offers a highly accurate overall porosity percentage. The part is weighed dry, then suspended in water. Comparing the actual density against the theoretical maximum reveals the exact volume of hidden voids.
Consistently producing dense, reliable components separates average foundries from elite engineering partners. Because internal quality hinges on a complex web of thermal and mechanical variables, procurement teams must rigorously audit potential suppliers. Selecting a partner equipped for custom aluminum die casting with the right technological backbone is the best way to mitigate supply chain risk.
Look past basic machine tonnage. A supplier's true capability lies in their engineering methodology and process control systems.
Advanced Simulation Capabilities: Elite manufacturers use CFD software (like MAGMASOFT or Flow-3D) to simulate metal flow and solidification, solving porosity virtually before cutting steel.
Modern Machinery with Real-Time Monitoring: Ensure their machines feature closed-loop shot control systems that adjust plunger speed and pressure thousands of times per second.
Comprehensive In-House Quality Labs: A trustworthy partner will have in-house X-ray, CMM, and spectrometers to catch process deviations instantly.
Relevant Certifications: Verify they hold strict quality management credentials, such as ISO 9001 or IATF 16949, proving their ability to handle automotive and aerospace standards.

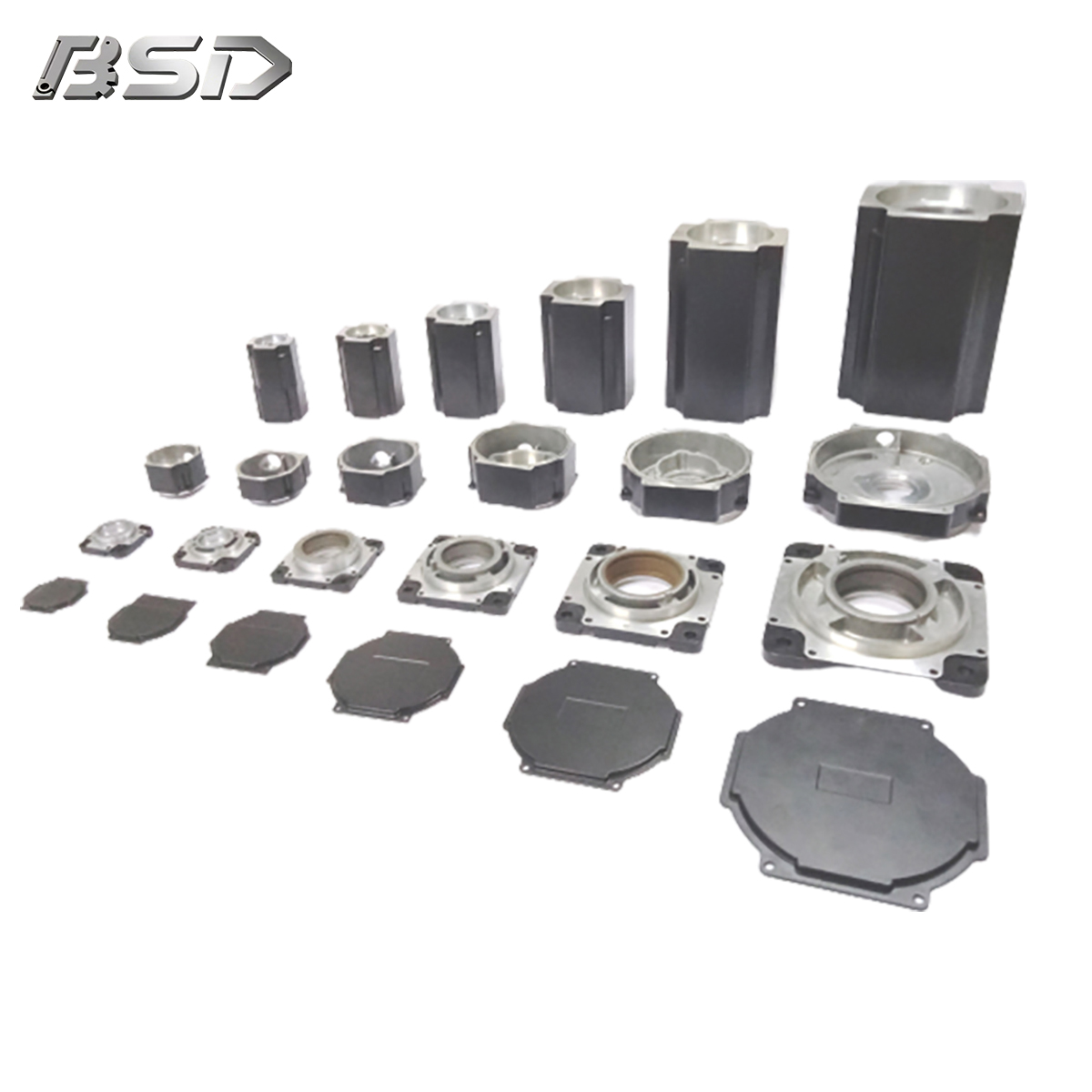

Achieving absolute zero porosity in standard die casting might defy physics, but controlling it to harmless, microscopic levels is entirely achievable. Through rigorous DFM, precise floor execution, and advanced inspection, engineers can effectively neutralize internal voids. If you are looking to eliminate structural flaws in your next project, choosing the right production partner is critical. For instance, advanced High Pressure Die Casting (HPDC) Aluminum Components require stringent real-time process control and rigorous quality inspection. By leveraging state-of-the-art machinery and comprehensive in-house testing at BSD Machinery, you can achieve the ultra-low porosity standards your industry demands. Consult with our expert engineering team early in your design phase to lock in your project's success.
From a strict physics standpoint, standard high-speed injection will always leave trace amounts of micro-porosity due to fluid turbulence and natural volumetric shrinkage. However, by leveraging vacuum-assisted systems or squeeze casting techniques, manufacturers can drive porosity down to near-zero levels, easily meeting the demands of critical structural applications.
There is no universal "acceptable" baseline; it depends entirely on the component's end-use. For decorative parts, internal voids don't matter unless they cause surface blisters. For pressure-tight or load-bearing components, tolerances are exceptionally tight. Organizations like NADCA provide detailed specifications on pore size and distribution, which engineers must explicitly call out on their 2D drawings.
Yes, trapped gas severely hinders heat treatability. High-temperature treatments, such as the T6 process, heat the aluminum just below its melting point. Any trapped gas inside will expand violently under this heat, pushing the softened metal outward and causing severe surface blistering and dimensional distortion. If your part requires T6 treatment, vacuum-assisted casting is mandatory.
When unacceptable voids appear mid-production, a strict root-cause analysis is required. If it is gas porosity, technicians might tweak the injection speed to smooth out turbulence, reduce the volume of die spray, or mill additional vents and overflows into the tool. If shrinkage is the culprit, the fix usually involves bumping up the intensification pressure or modifying the internal cooling channels to force proper directional solidification.
