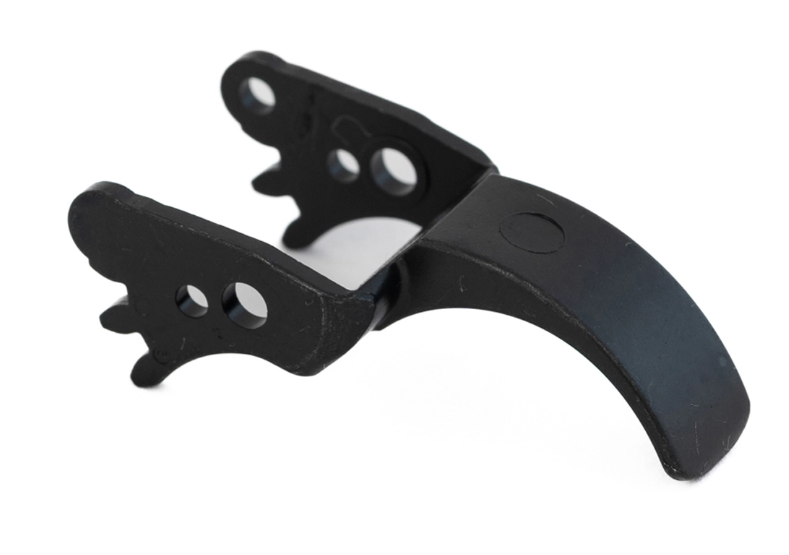

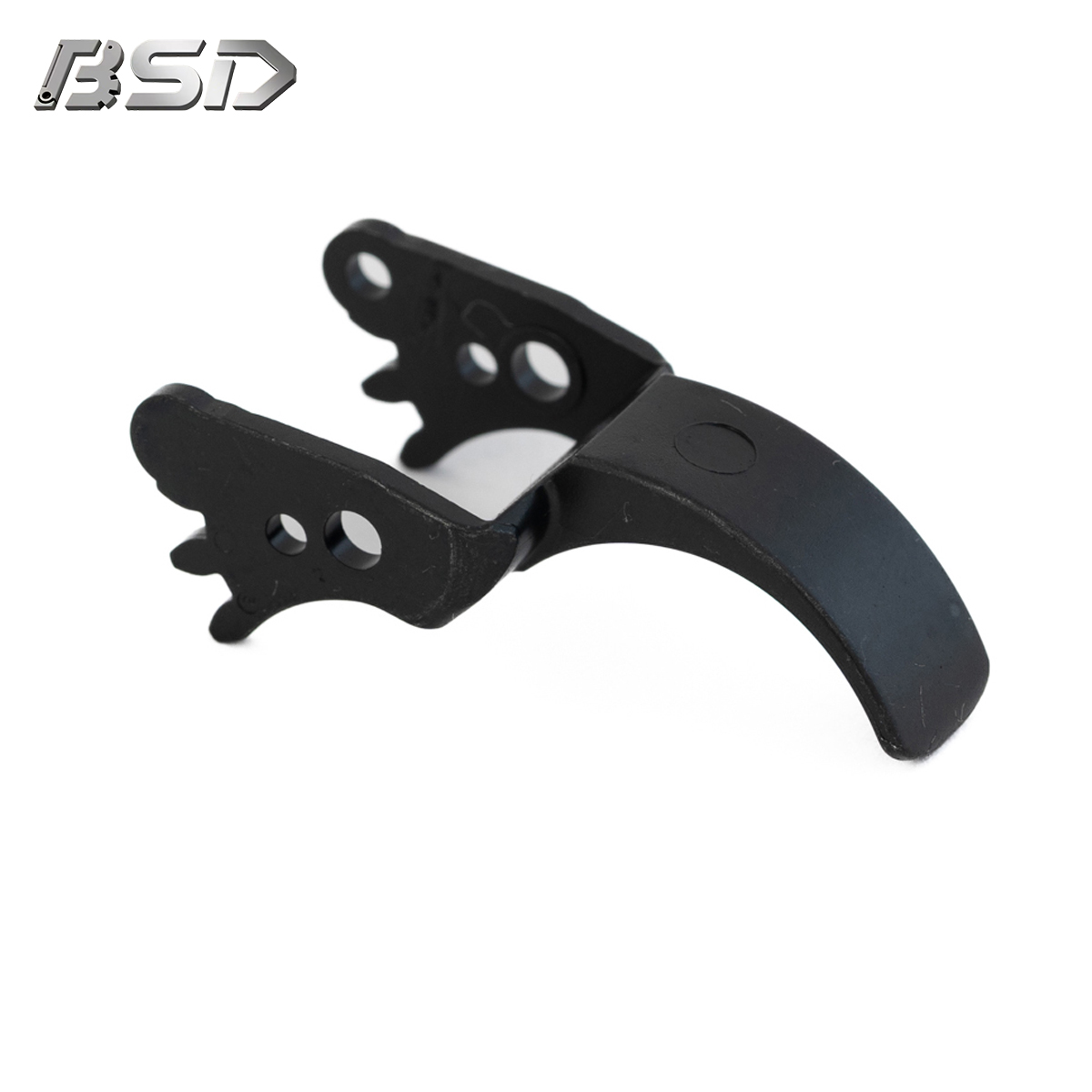

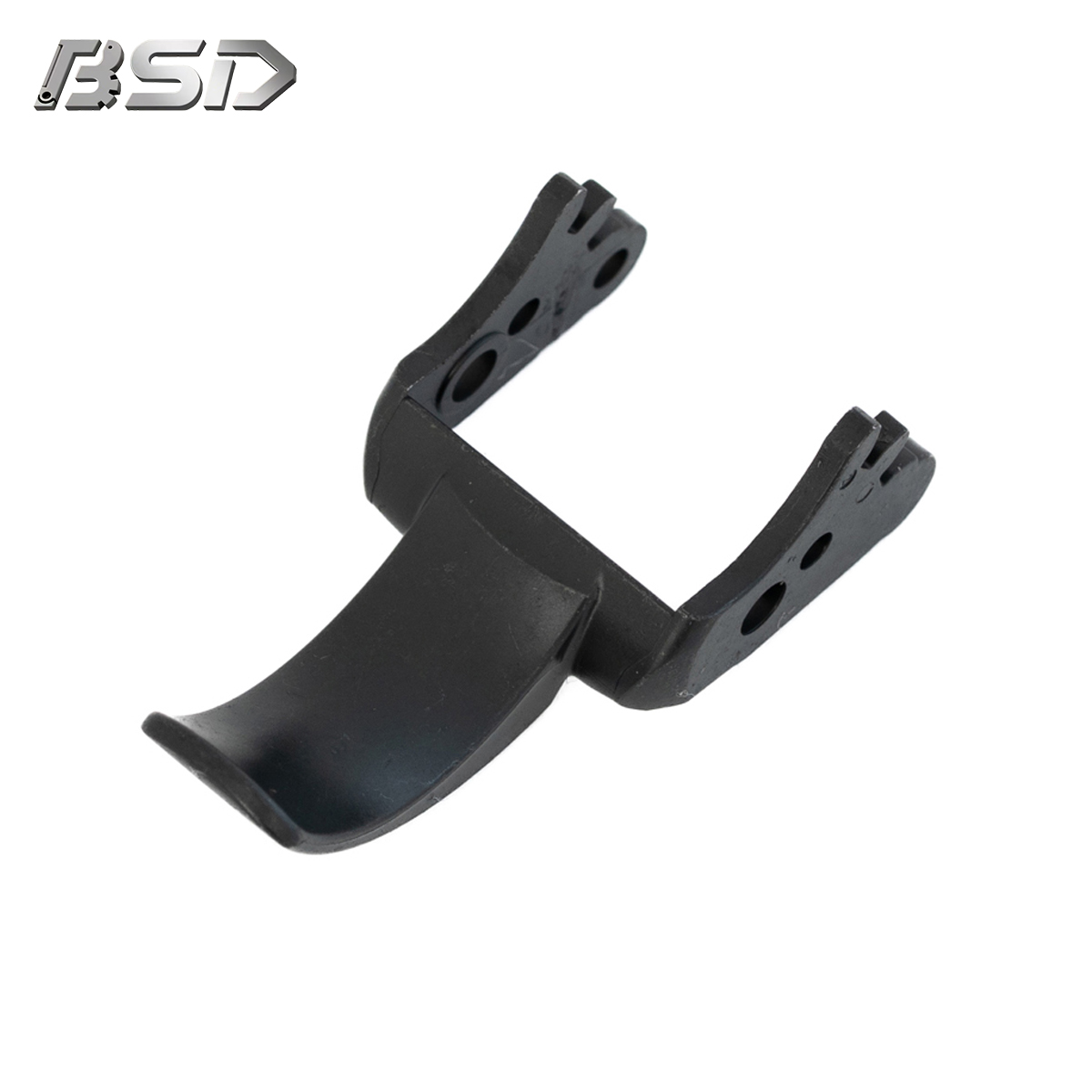

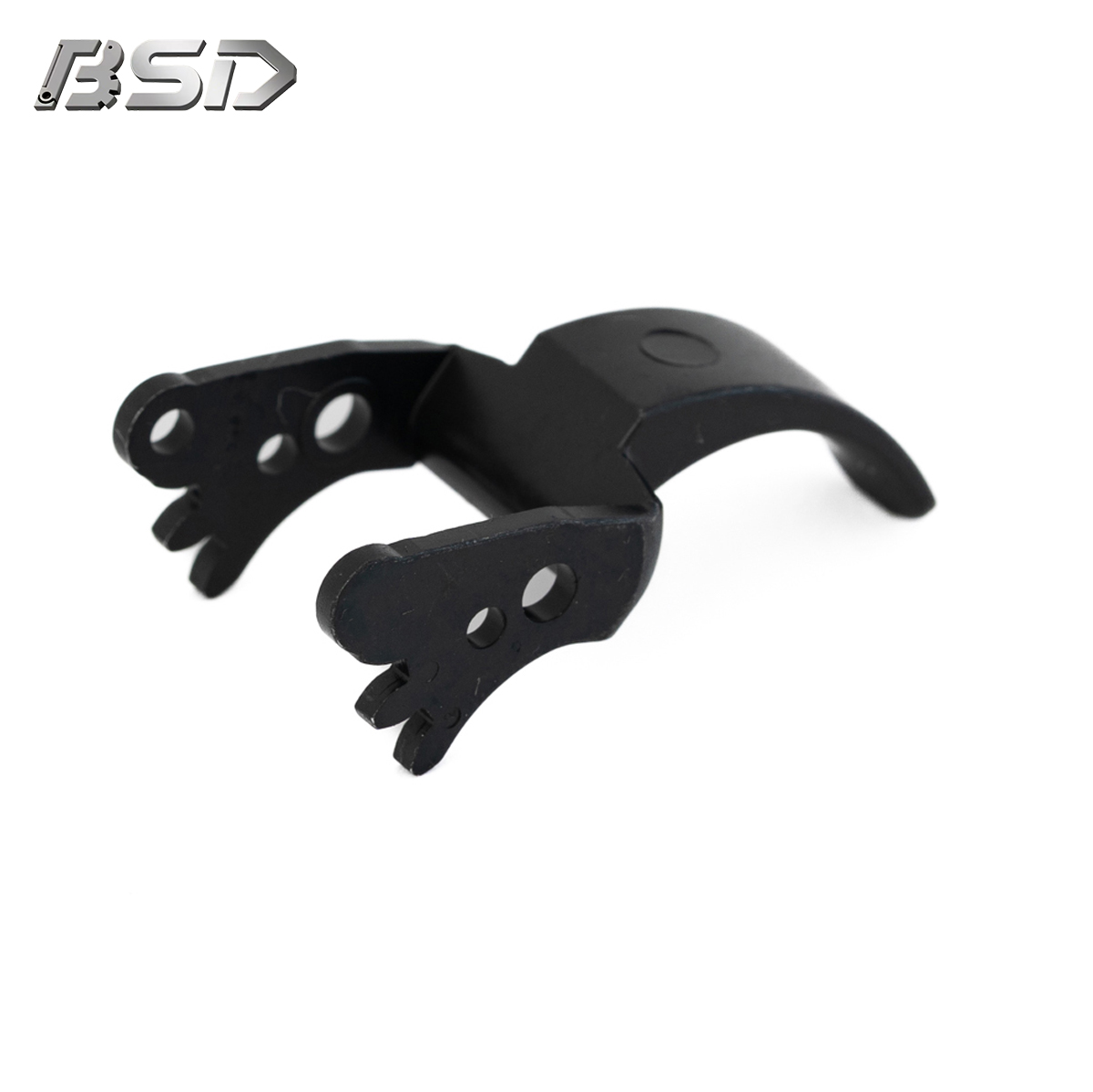

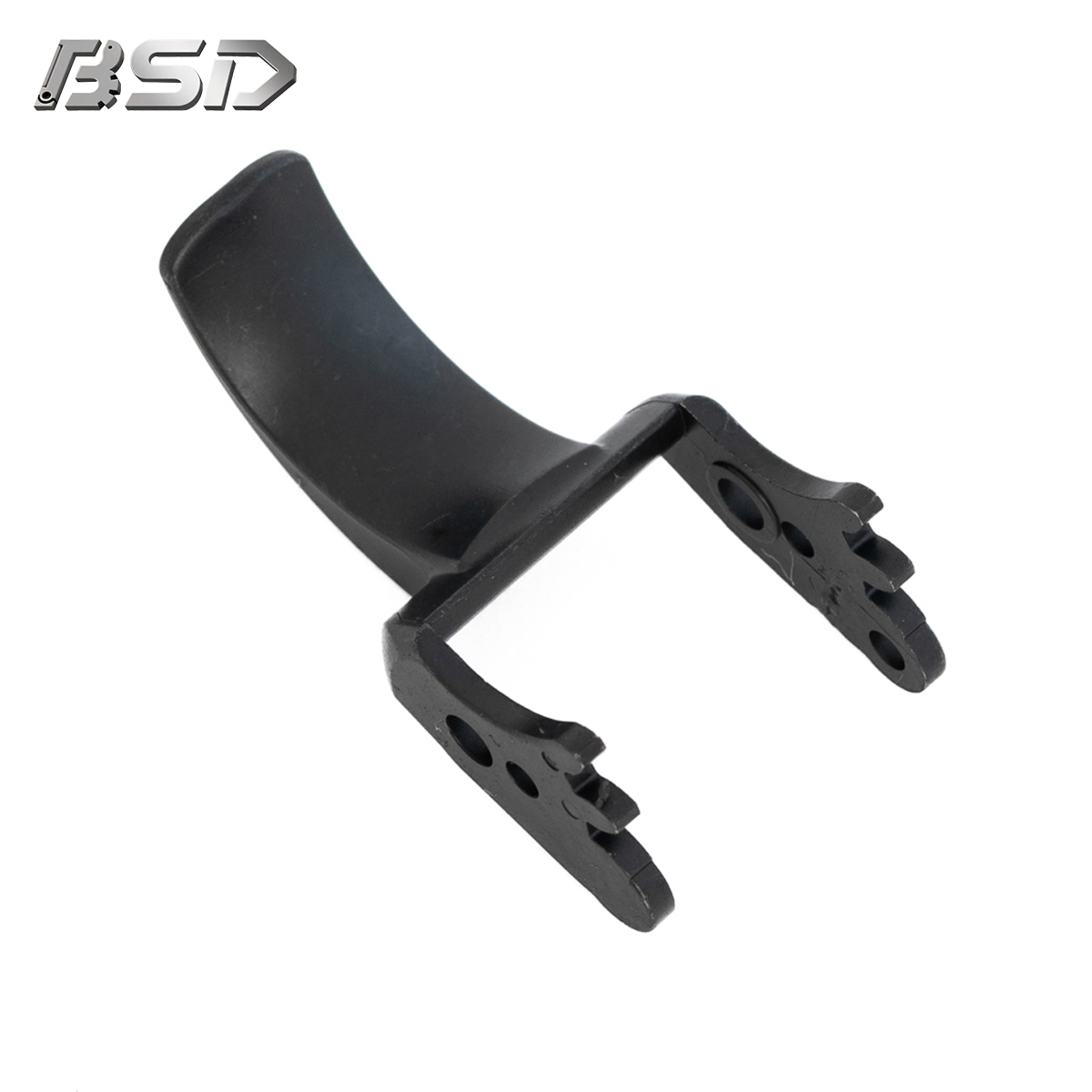

This precision-engineered ergonomic lever is manufactured via Metal Injection Molding (MIM), an advanced powder metallurgy process that combines the design flexibility of plastic injection molding with the mechanical properties of wrought metal. Developed for consumer electronics, industrial tools, and automotive interiors, this MIM lever delivers complex curved geometries, tight dimensional tolerances, and consistent mechanical performance at scale. It addresses the specific needs of global manufacturers requiring ergonomic comfort, structural integrity, and cost-efficient high-volume production.
BSD Machinery, established in 2012 and located in Suzhou, China, brings 14 years of expertise in precision metal component manufacturing to every MIM lever we produce. Our 8,000-square-meter modern facility houses advanced production equipment and a team of experienced technical specialists who work closely with clients to optimize designs and select appropriate materials.
Each advantage is engineered to solve specific manufacturing challenges faced by industrial clients:
Design Freedom: MIM technology enables the production of complex curved surfaces and undercut features that would be difficult or expensive to achieve with traditional machining methods. This allows for more ergonomic designs that improve user comfort and reduce fatigue during extended use.
Material Efficiency: The MIM process uses nearly 100% of the raw material, minimizing waste compared to subtractive manufacturing techniques. This translates to lower production costs, especially for high-volume orders.
Dimensional Consistency: Automated production processes ensure that every lever meets the same exact specifications, batch after batch. This consistency simplifies assembly and reduces the need for costly rework.
Reduced Secondary Operations: Most MIM parts require minimal post-processing, as the sintering process produces near-net-shape components with smooth surface finishes. This shortens lead times and lowers overall production costs.
We offer three primary material options, each selected for specific performance characteristics:
316L Stainless Steel: Provides excellent corrosion resistance, making it suitable for components exposed to moisture or harsh environmental conditions.
17-4 PH Stainless Steel: Offers high tensile strength and hardness, ideal for applications requiring load-bearing capabilities.
Low-Carbon Steel Alloy: Delivers a cost-effective solution for general industrial applications where moderate strength is sufficient.
Custom Alloys: Available upon request to meet unique application requirements.
Parameter | Value |
|---|---|
Manufacturing Process | Metal Injection Molding (MIM) |
Material Options | 316L SS, 17-4 PH SS, Low-Carbon Steel, Custom |
Powder Particle Size | D50 < 15μm (Gas-Atomized) |
Dimensional Tolerance | ±0.01mm |
Minimum Wall Thickness | 0.5mm |
Surface Finish | As-sintered, Polished, Plated (Customizable) |
Production Volume | 1,000 - 1,000,000+ pieces |
Quality Certifications | ISO 9001, AS9100 |
Fine Powder Production: We use gas-atomized metal powder with a particle size of D50 < 15μm, which ensures uniform flow during molding and consistent sintering results.
Feedstock Preparation: Metal powder is blended with a thermoplastic binder system to create a homogeneous, flowable feedstock that can fill even the most intricate mold cavities.
Injection Molding: The feedstock is injected into precision molds using advanced injection molding machines, producing green parts with accurate dimensions.
Debinding & Sintering: The binder is removed through a multi-stage debinding process, followed by high-temperature sintering to densify the metal particles and achieve the desired mechanical properties.
Quality Inspection: All finished parts undergo rigorous inspection using coordinate measuring machines (CMMs) and spectrometers to ensure compliance with specifications.
Automotive Interiors: Seat adjustment levers, center console controls, and door handle components
Industrial Tools: Power tool switches, hand tool handles, and measuring instrument controls
Consumer Electronics: Laptop hinges, camera controls, and smart home device knobs
Medical Devices: Surgical instrument handles and diagnostic equipment controls
Pre-Production: Technical consultations, DFM (Design for Manufacturing) analysis, and rapid prototyping services
Production: Real-time progress updates, in-process quality inspections, and flexible production scheduling
Post-Delivery: 24-month warranty for material and processing defects, technical support for assembly issues, and continuous improvement based on client feedback
Our facility is equipped with 3-axis, 4-axis, and 5-axis CNC machining centers, CNC turning-milling composite machines, and high-power laser cutters, allowing us to handle all aspects of component manufacturing in-house. We maintain a 98%+ on-time delivery rate and possess independent import and export rights, enabling us to serve clients worldwide with flexible shipping options including FOB and CIF.
Our standard MOQ is 1,000 pieces, though we can accommodate smaller prototype orders upon request.
Lead times vary based on order quantity and complexity, but generally range from 3-4 weeks for prototype orders to 6-8 weeks for full production runs.
Yes, we offer a range of surface finishes including polishing, plating, and coating to meet your specific aesthetic and functional requirements.
Our technical team provides DFM analysis to help optimize your design for manufacturability, reducing costs and improving performance.
To receive a detailed quote for MIM ergonomic lever components, please provide us with your product drawings or specifications, required material, estimated order quantity, surface finish requirements, and desired delivery date. Our team will review your request and respond within 24 hours with a comprehensive proposal tailored to your needs.
