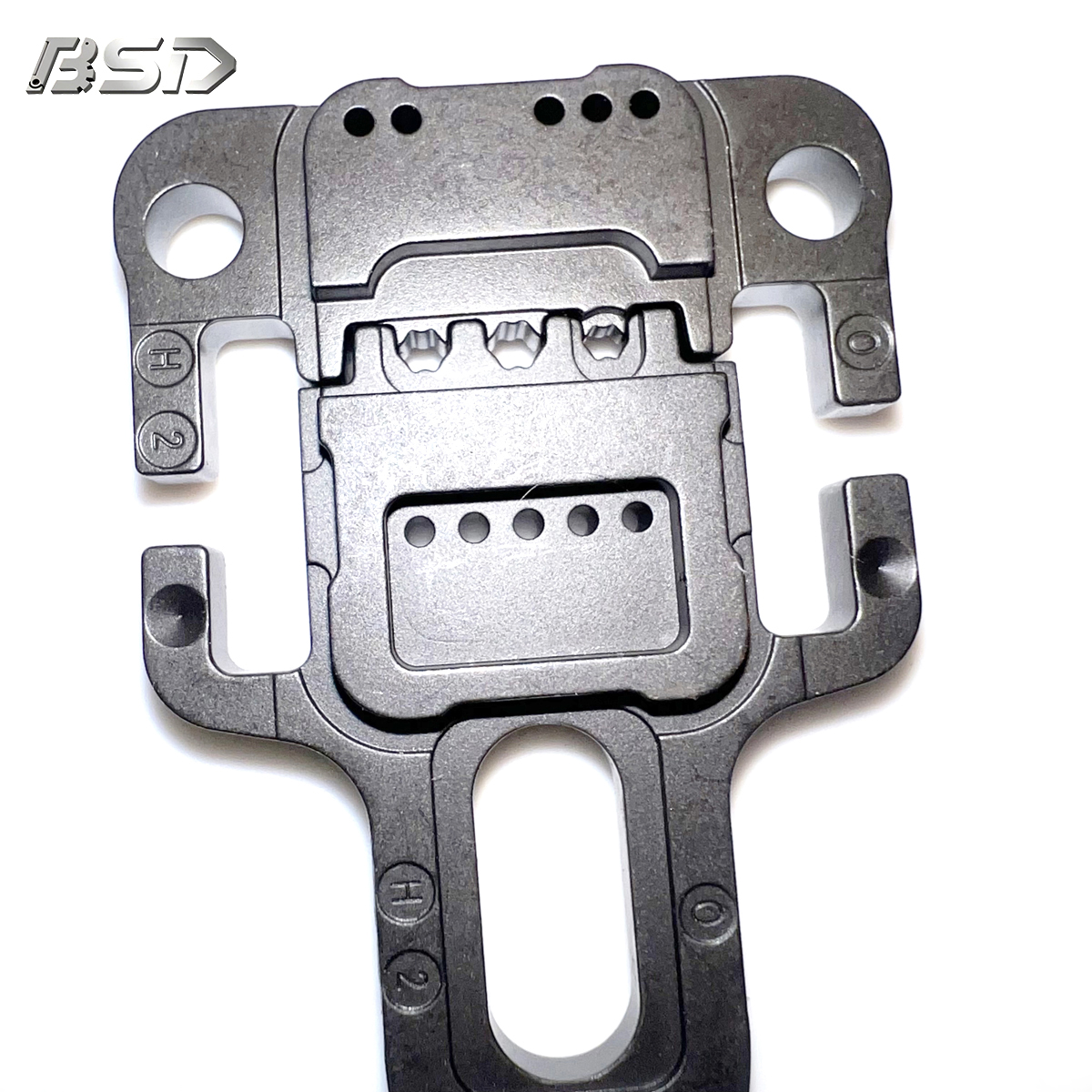

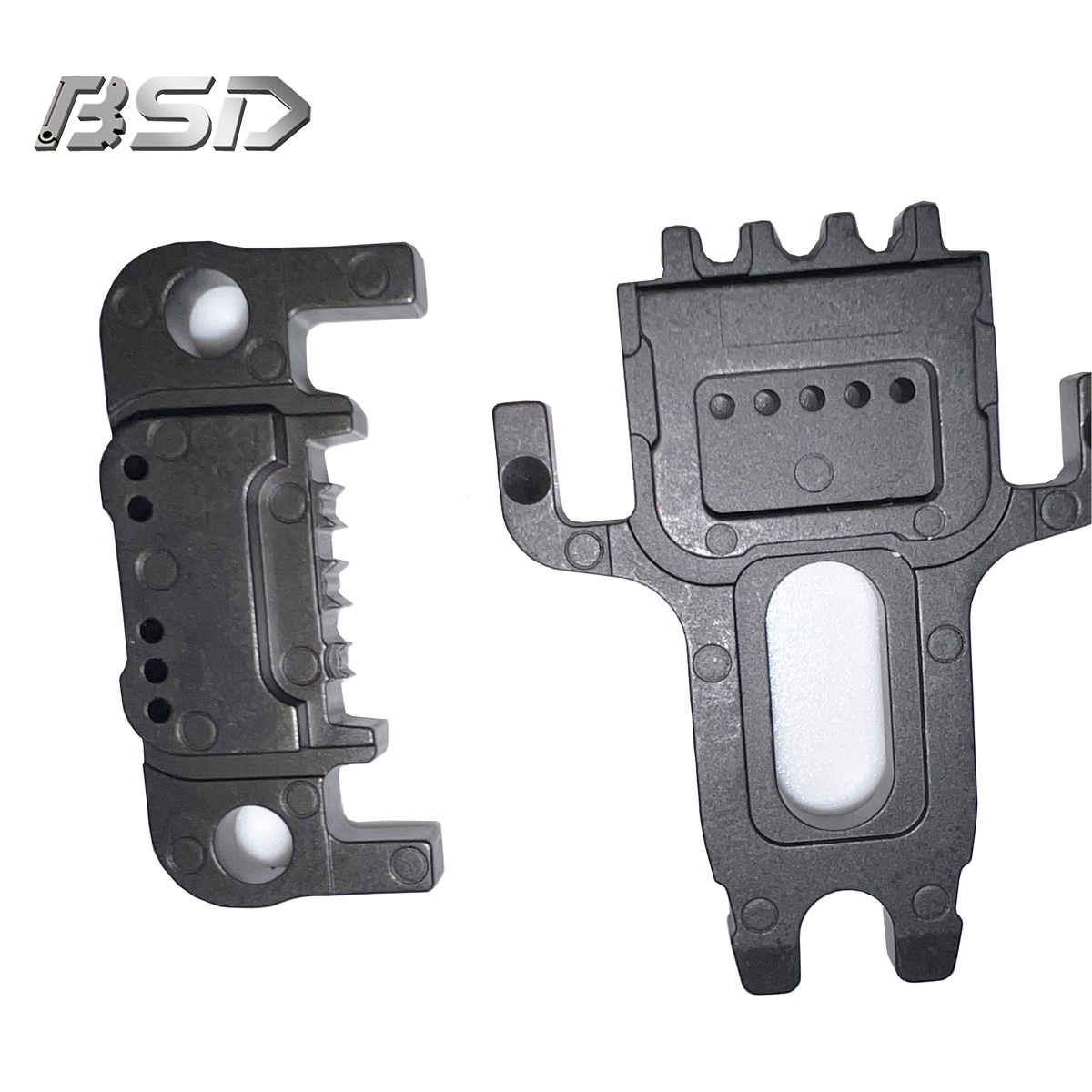

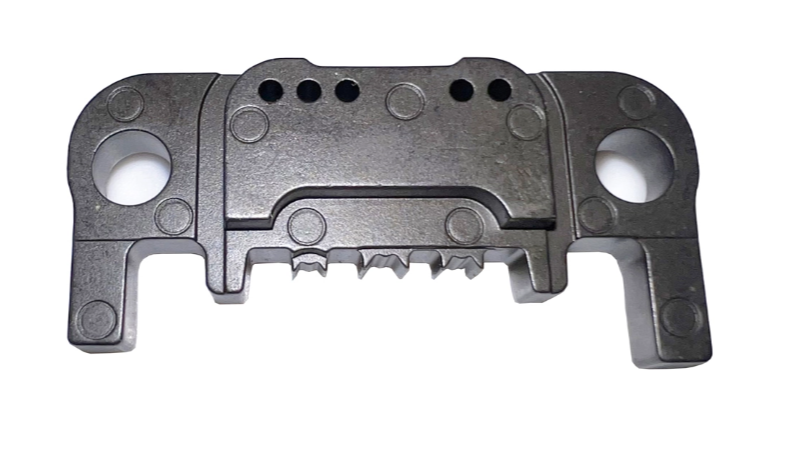

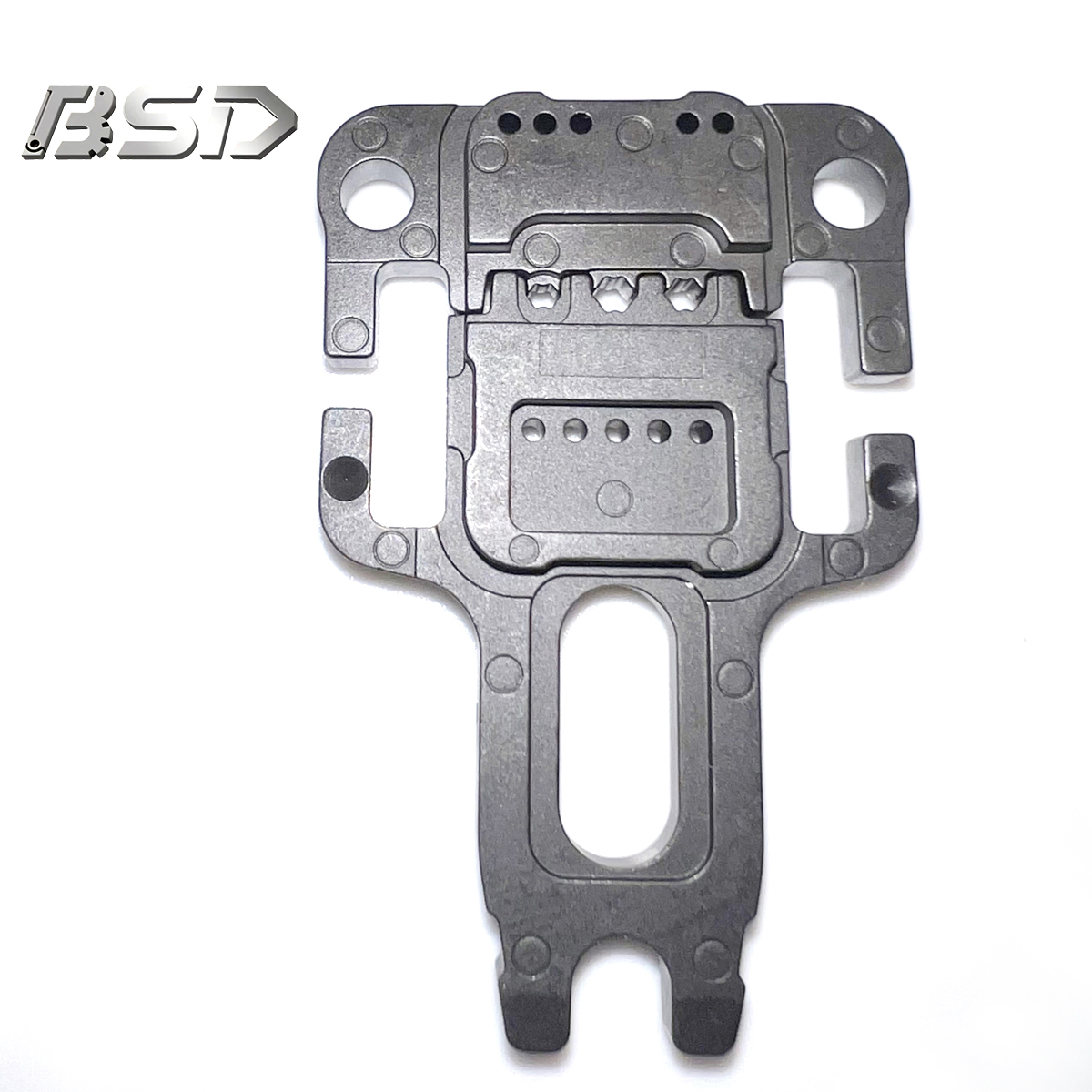

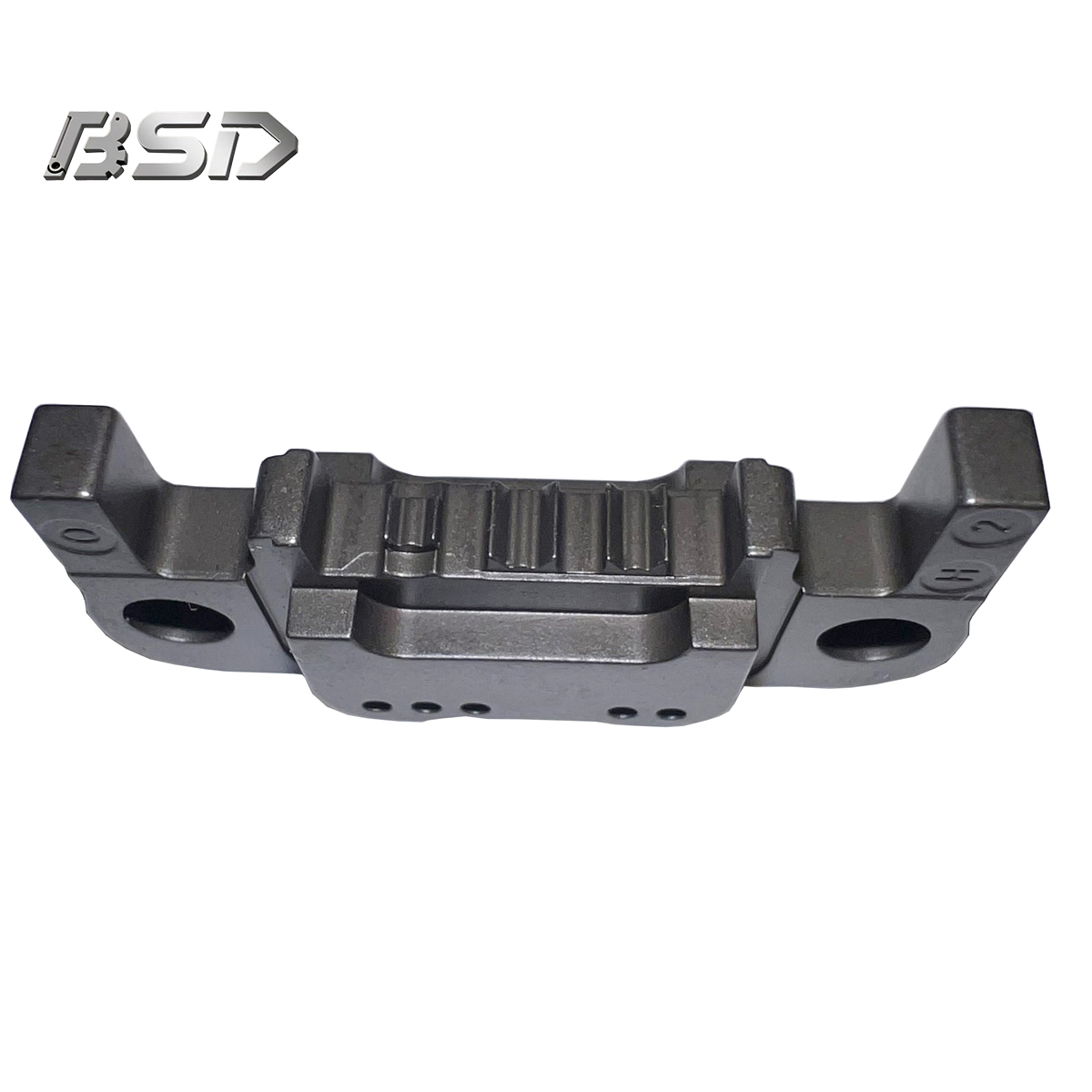

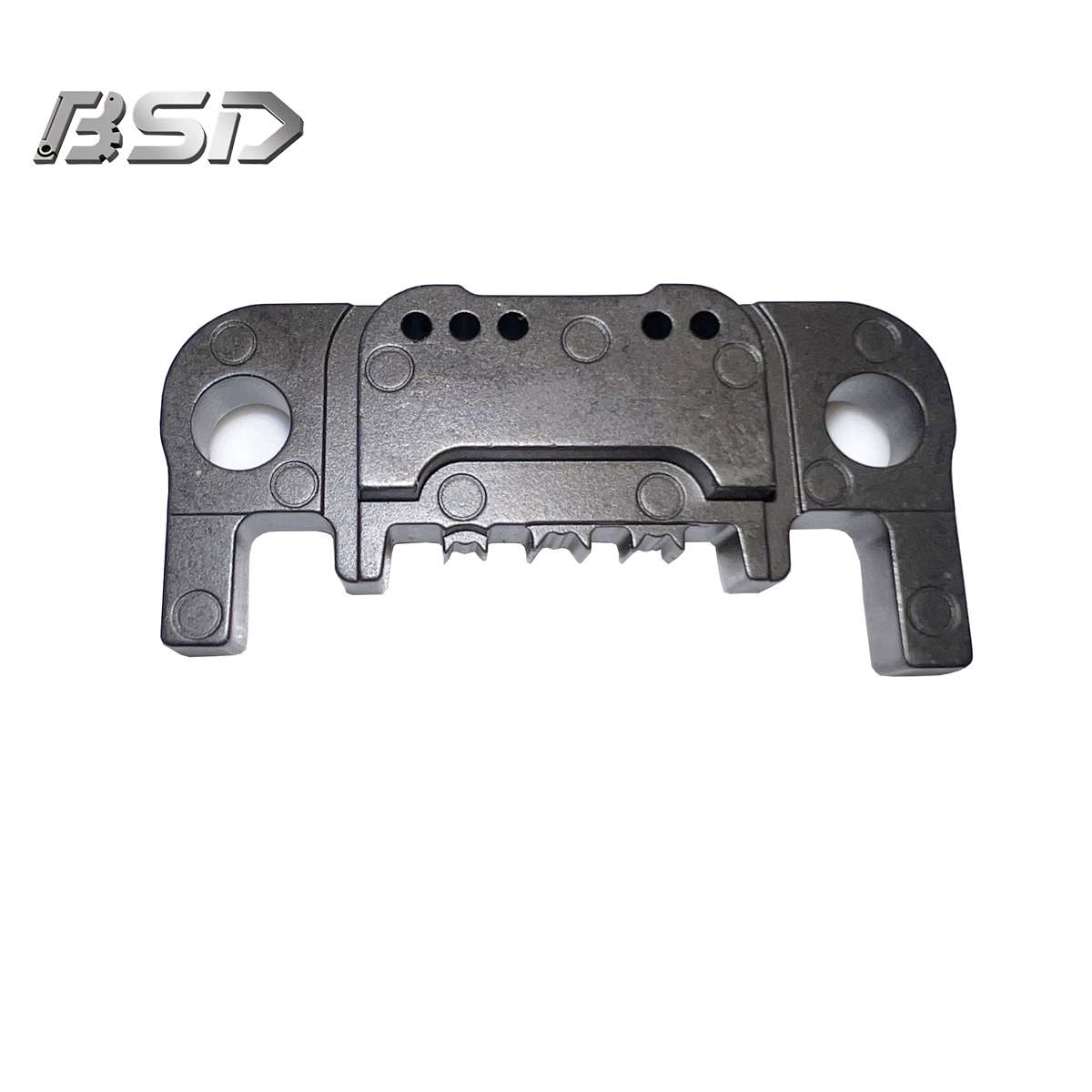

Our precision miniature MIM structural components are produced using Metal Injection Molding, a leading powder metallurgy technology for complex, miniaturized parts. With ±0.01mm mold tolerances, mechanical properties on par with wrought metals, and consistent output across production scales, these components serve manufacturers in smartphones, medical devices, and robotic systems. Backed by ISO 9001 certification and 14 years of manufacturing expertise, BSD Machinery delivers cost-effective solutions for applications requiring tight dimensional control and uniform performance.
Mold tolerances reach ±0.01mm, with post-processing refinement to ±0.02mm for critical features. Part-to-part repeatability remains consistent across production runs of any size, reducing assembly adjustments and eliminating unnecessary secondary machining operations. Controlled shrinkage of <0.5% ensures precise fit in final assemblies.
Near-net-shape manufacturing minimizes material waste compared to traditional machining methods. Complex geometries, including internal splines, mounting holes, and alignment features, are formed in a single molding step, reducing production steps and associated costs. This process supports both low-volume prototyping and high-volume mass production.
High-temperature sintering achieves >97% theoretical density, delivering strength, hardness, and fatigue resistance matching wrought metals. Material options include 316L stainless steel, 17-4 PH, and low-alloy steel, each tailored to meet specific application requirements for corrosion resistance and biocompatibility.
Fine gas-atomized metal powder (D50 < 15μm) is mixed with a thermoplastic binder to create a flowable feedstock. This mixture enables precise replication of intricate part features during the molding stage. Material formulations are customizable to match application-specific performance needs.
CNC-machined tool steel molds replicate complex geometries with tight tolerances. Feedstock is injected into the mold to form a "green part," a near-net-shape replica of the final component. Mold design incorporates features that reduce post-processing requirements and improve part consistency.
Solvent and thermal debinding removes the binder system without causing part deformation, leaving a porous "brown part." High-temperature sintering at 1300-1400°C densifies the part to its final density, while controlling dimensional changes to within specified limits.
Optional CNC machining refines critical features to tighter tolerances. Available surface treatments include shot blasting, black oxide coating, and passivation, each selected to enhance wear resistance, corrosion protection, or aesthetic appearance.
All production processes follow ISO 9001-certified standards. Dimensional inspection uses Coordinate Measuring Machines (CMM) and 3D laser scanning to verify compliance with CAD specifications. Material testing includes density measurement via Archimedes' method and metallographic analysis to confirm uniform microstructure. Assembly fit checks and fatigue testing validate performance under operating conditions. We maintain full traceability for every component, meeting the requirements of medical and consumer electronics applications.
Parameter | Standard Value | Customization Range |
|---|---|---|
Standard Materials | 316L stainless steel, 17-4 PH stainless steel, low-alloy steel | Titanium alloy, copper alloy, nickel-based alloy |
Part Weight Range | 0.5g - 200g | 0.1g - 500g |
Part Dimension Range | 1mm - 150mm | 0.5mm - 200mm |
Mold Tolerance | ±0.01mm | ±0.005mm (for critical features) |
Post-Processing Tolerance | ±0.02mm | ±0.01mm |
Sintered Density | >97% theoretical density | Up to 99% theoretical density |
Sintering Temperature | 1300-1400°C | Adjusted per material type |
Surface Roughness | Ra 1.6μm (as-sintered) | Ra 0.4μm (after polishing) |
Production Volume | 100 - 1,000,000+ pieces | Custom batch sizes available |
Components include camera module housings, connector pins, hinge mechanisms for foldable devices, and internal structural supports. The miniaturization capabilities of MIM technology enable thinner, lighter device designs without compromising performance.
Biocompatible materials such as 316L stainless steel are used for surgical instruments, implant components, and diagnostic equipment parts. Strict quality control and full traceability ensure compliance with medical industry standards.
MIM components are used in robotic joints, actuator parts, and sensor housings. The combination of high strength and dimensional precision supports stable operation in automated systems.
The standard minimum order quantity is 100 pieces for standard designs and 500 pieces for fully custom components. We also offer small-batch prototyping services for design validation purposes.
Standard production lead time is 2-4 weeks from final design approval. Prototypes can be delivered within 1-2 weeks. Expedited production options are available for urgent projects.
Yes, we offer rapid prototyping using both 3D printing and small-batch MIM production. Prototypes undergo the same quality inspection processes as production parts to ensure functional equivalence.
Our material engineering team can develop custom powder-binder formulations to meet specific performance requirements, including enhanced corrosion resistance, higher strength, or specialized magnetic properties.
Standard surface treatments include shot blasting, black oxide coating, and passivation. We also offer additional options such as electroplating, anodizing, and PVD coating through our certified partner network.
Established in 2012 and located in Suzhou, China, adjacent to Shanghai, BSD Machinery operates an 8000+ square meter production facility equipped with 3-axis, 4-axis, and 5-axis CNC machining centers, CNC turning-milling composite machines, and high-power laser cutters. The company holds independent import and export rights, serving clients across global supply chains. Services include pre-sales technical consultation, DFM (Design for Manufacturing) analysis, rapid prototyping, and post-delivery technical support. The company maintains a 98%+ on-time delivery rate.
To discuss your precision MIM component requirements, contact our technical team today. We provide detailed project assessments, material recommendations, and competitive pricing. All inquiries receive a response within 24 hours.
