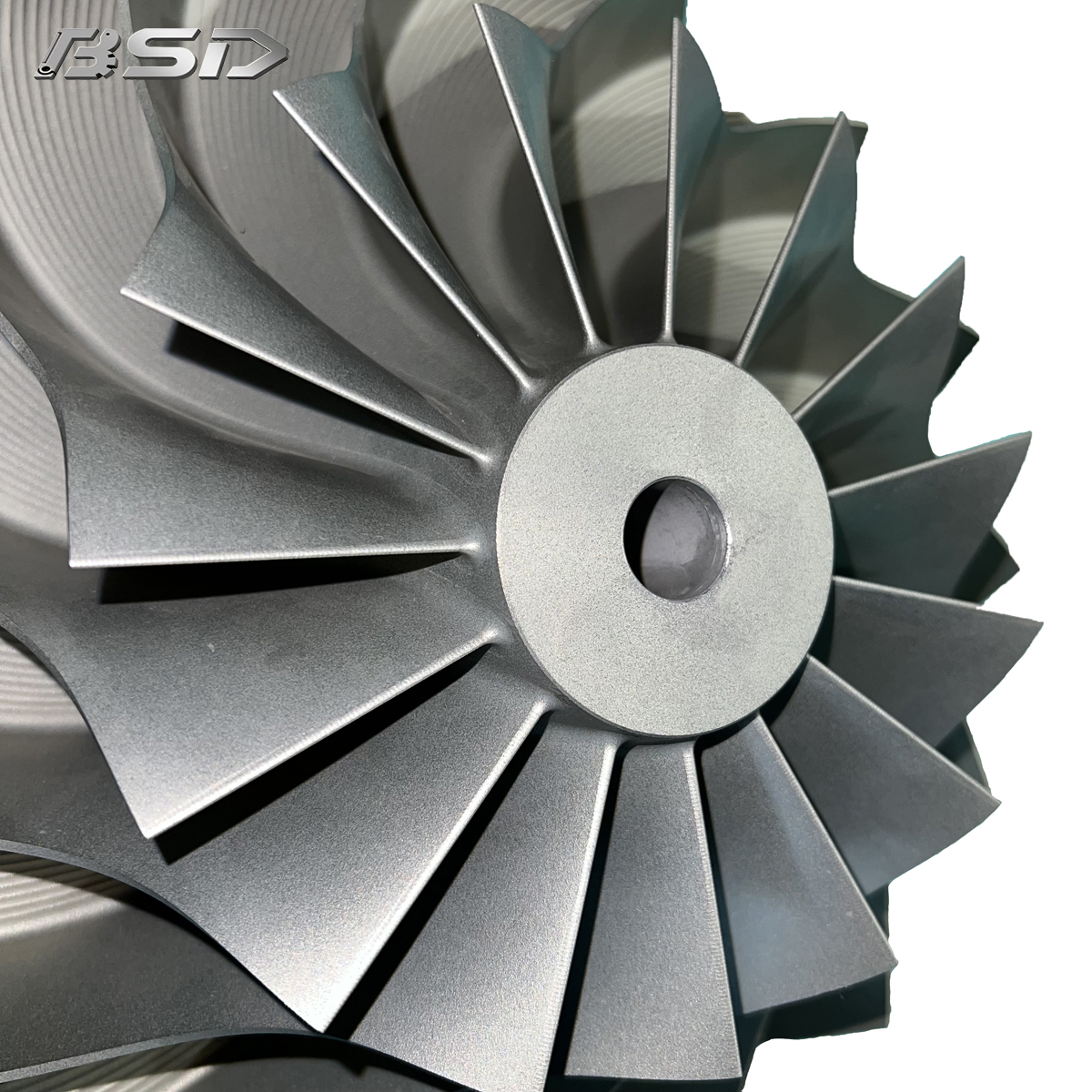

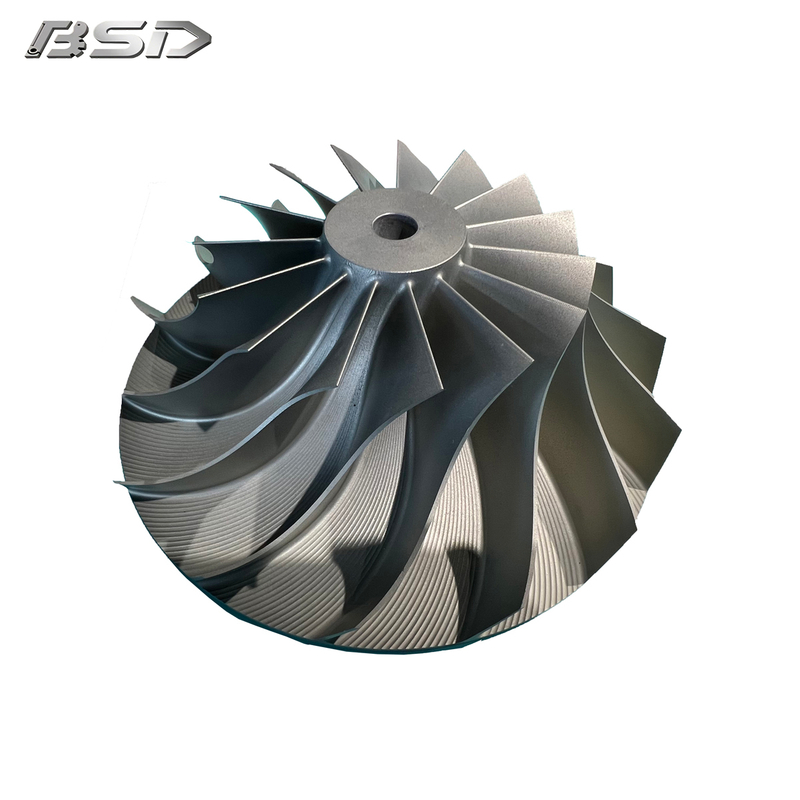

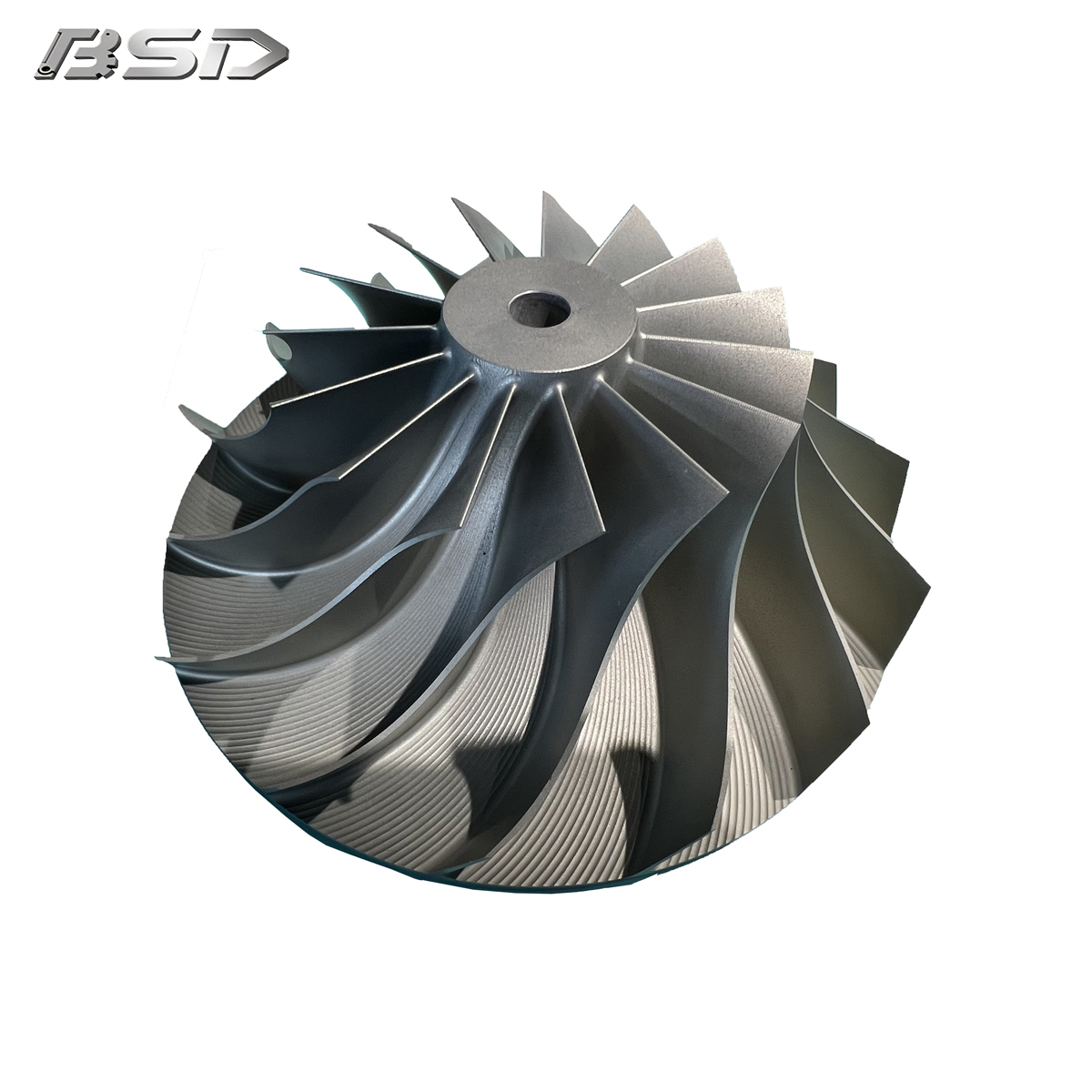

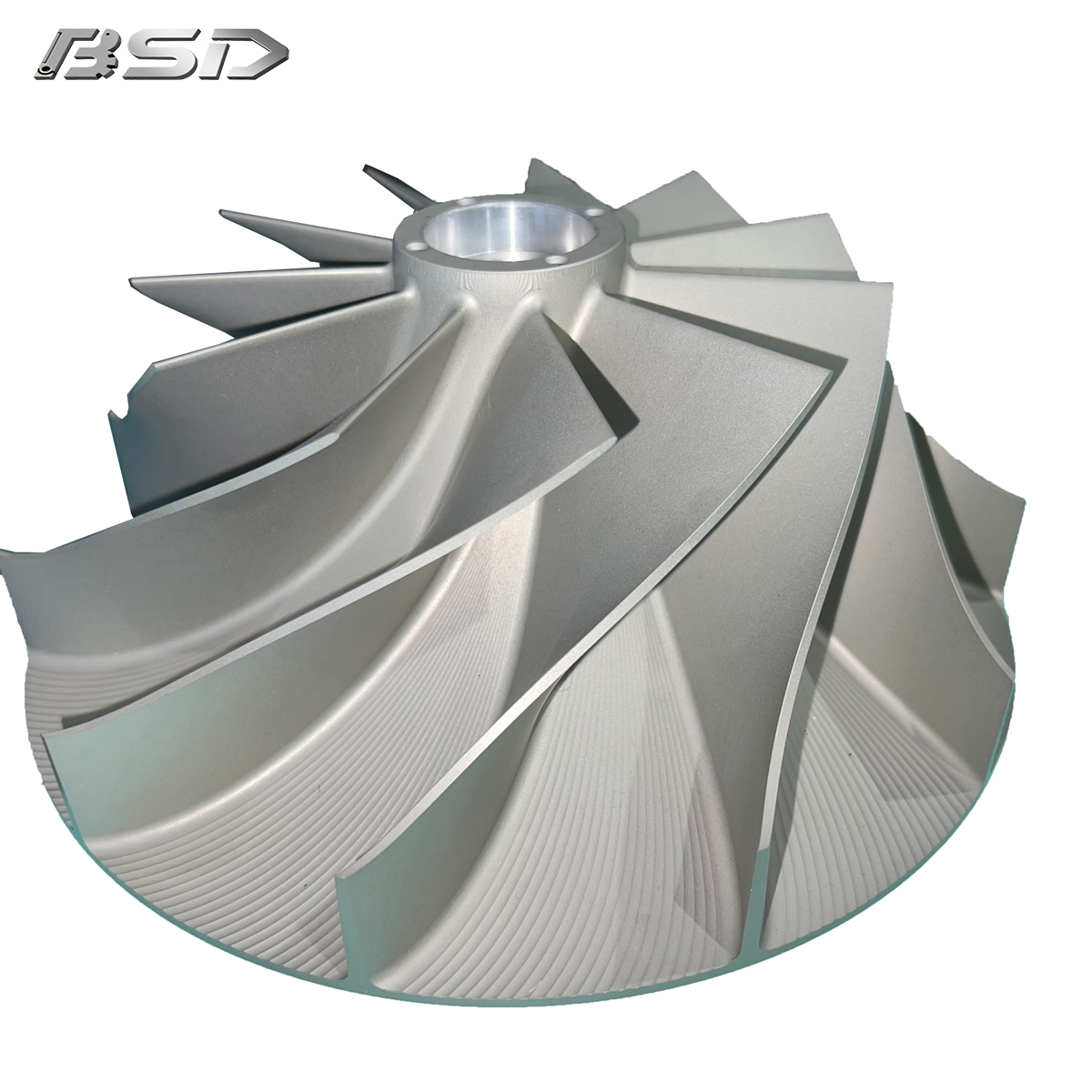

This high-performance centrifugal impeller is precision-engineered via 5-axis simultaneous CNC machining, designed for turbochargers, compressors, and aerospace fluid machinery. Crafted from high-strength aluminum/titanium alloy, it delivers exceptional aerodynamic efficiency, structural integrity, and dynamic balance—ensuring optimal performance under high-speed, high-temperature operating conditions.
High-Performance Alloys: Available in 6061-T6 aluminum, Ti-6Al-4V titanium, or Inconel 718 (customizable), balancing lightweight, high tensile strength, and corrosion/heat resistance for extreme industrial environments.
Pre-Machining Preparation: Raw material undergoes ultrasonic testing to detect internal defects, followed by stress-relief annealing to minimize post-machining distortion.
Multi-Axis Roughing: 5-axis CNC machines use high-feed end mills to remove excess material, creating near-net-shape blade geometry while maintaining tool accessibility to complex undercut features.

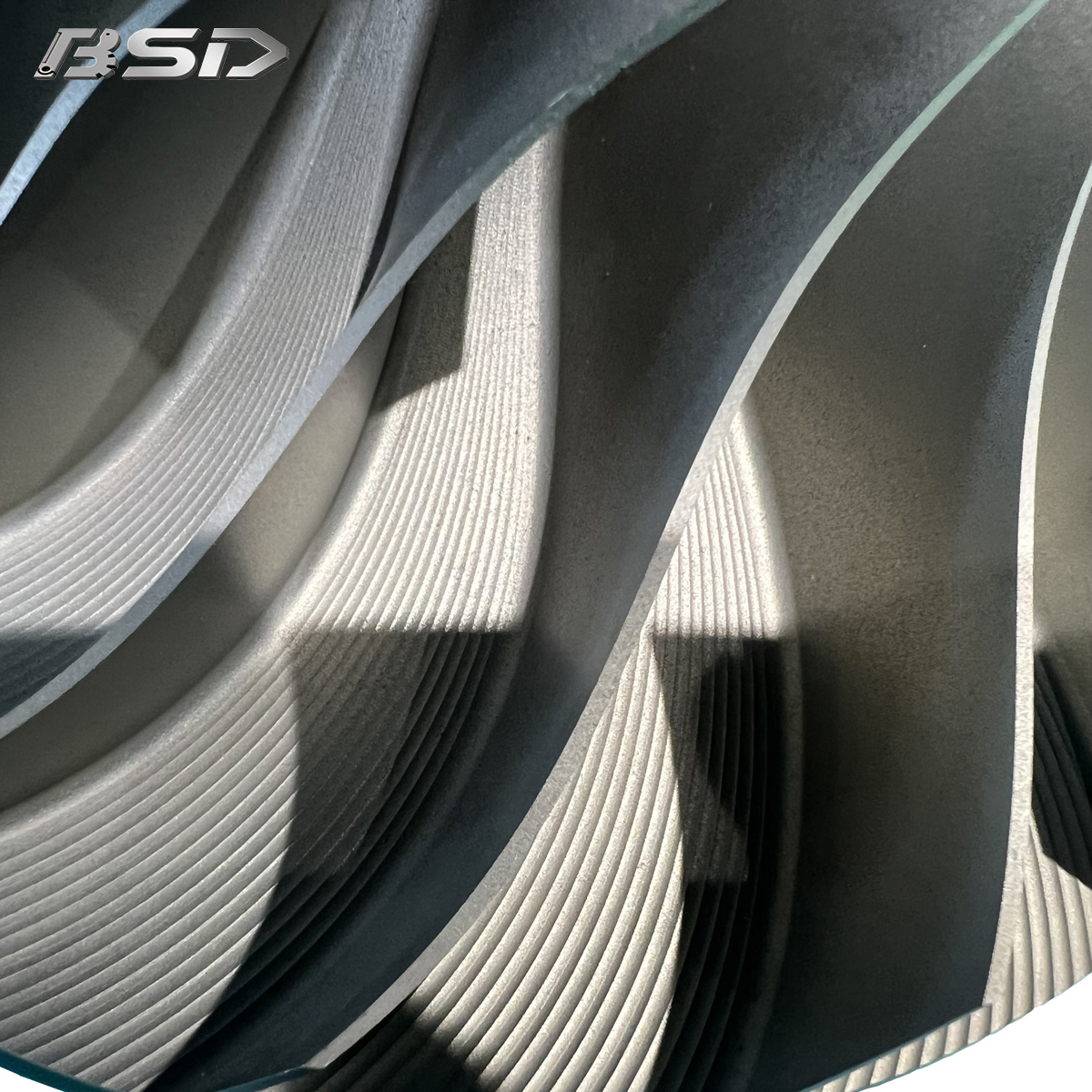

Finishing Milling: Simultaneous 5-axis interpolation generates precision blade profiles, curved surfaces, and flow channels, achieving tight dimensional tolerances of ±0.01mm and surface roughness of Ra ≤0.8μm.

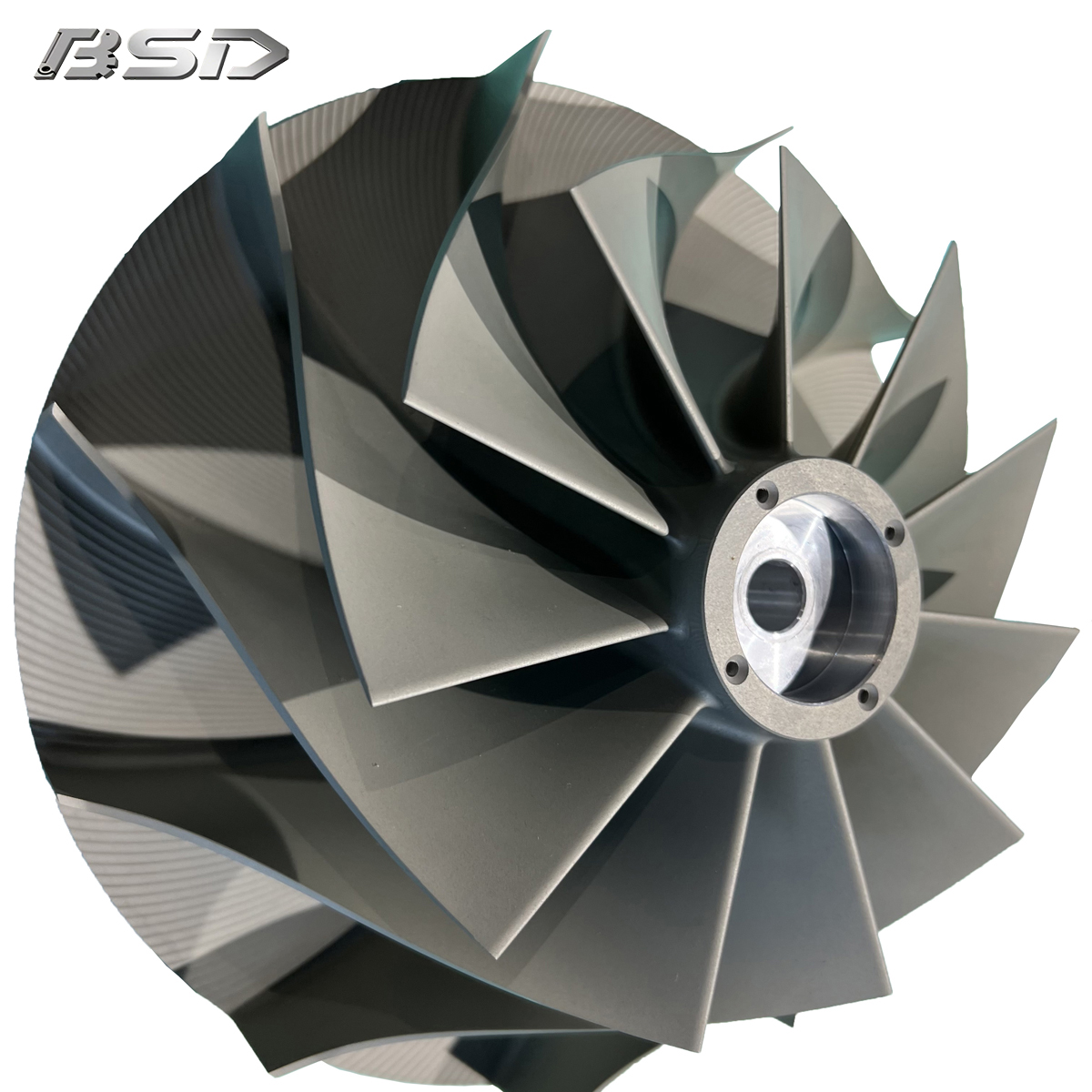

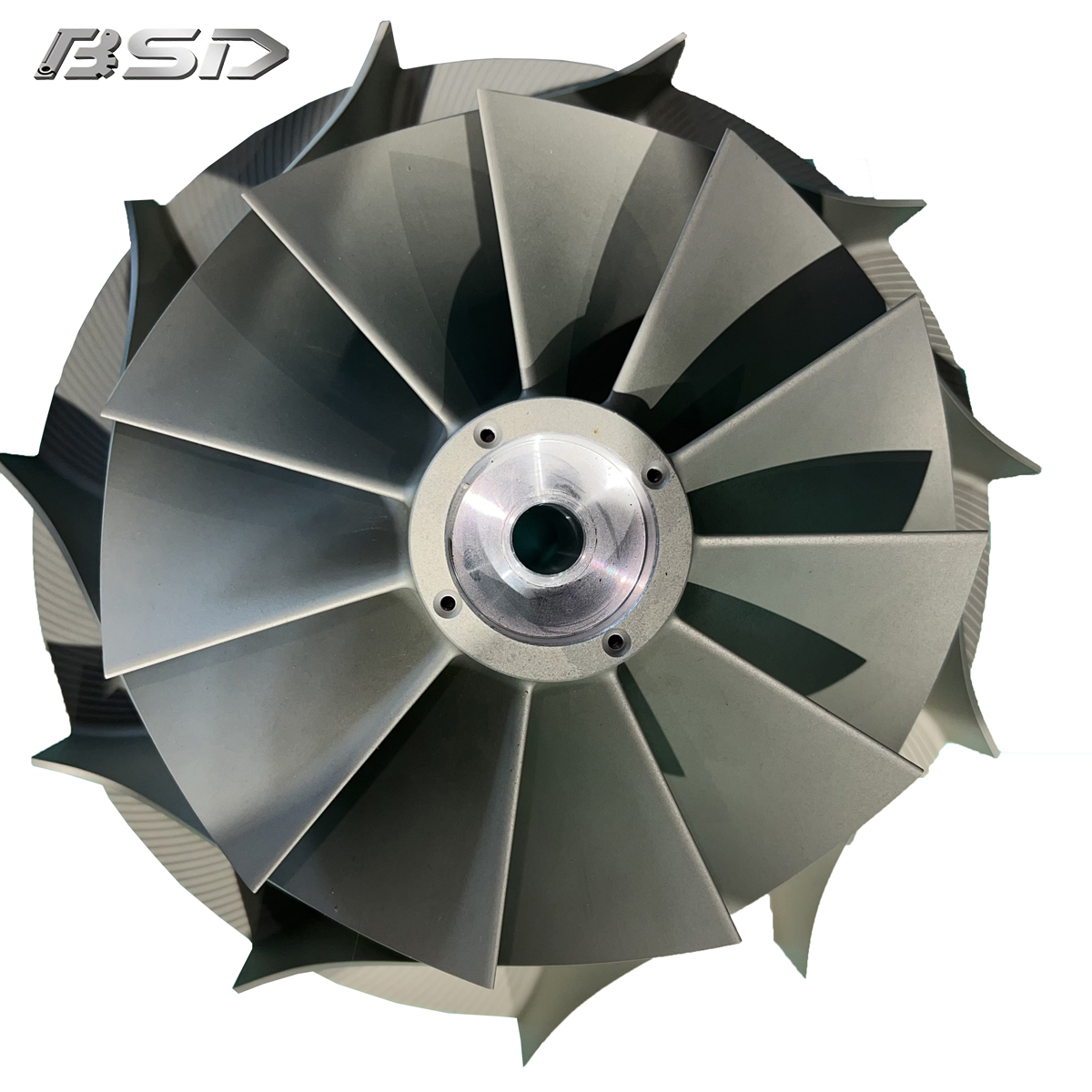

Hub & Bore Machining: CNC turning and milling create the central bore, mounting flange, and bolt holes, ensuring concentricity and alignment with the shaft for dynamic balance.
Thin-Wall Blade Machining: Specialized toolpaths and vibration-damping techniques prevent deflection during the machining of thin, high-aspect-ratio blades, critical for aerodynamic efficiency.
Deburring & Polishing: Automated robotic deburring removes sharp edges, while selective hand polishing refines blade surfaces to reduce flow turbulence and improve energy efficiency.
Heat Treatment (Alloy-Specific): Titanium/Inconel variants undergo solution treatment and aging to enhance mechanical strength and high-temperature stability.
Surface Coating: Optional ceramic or anodized coatings are applied to improve wear resistance, corrosion protection, and thermal stability in high-temperature applications.
Coordinate Measuring Machine (CMM): Validates critical dimensions including blade pitch, profile, and hub concentricity against CAD models.
3D Laser Scanning: Captures full-field geometry to verify complex blade curvature and flow channel accuracy.
Hardness Testing: Rockwell/Brinell tests confirm material mechanical properties meet design specifications.
Metallographic Analysis: Microstructure inspection ensures no internal defects or grain boundary issues.
Balancing Testing: High-speed dynamic balancing (ISO 1940/1 grade G1) eliminates vibration and ensures stable operation at high rotational speeds.
Flow Bench Testing: Sample impellers undergo aerodynamic performance testing to validate flow rate, pressure ratio, and efficiency against design targets.
Fatgue Testing: Accelerated life testing verifies long-term durability under cyclic load conditions.
