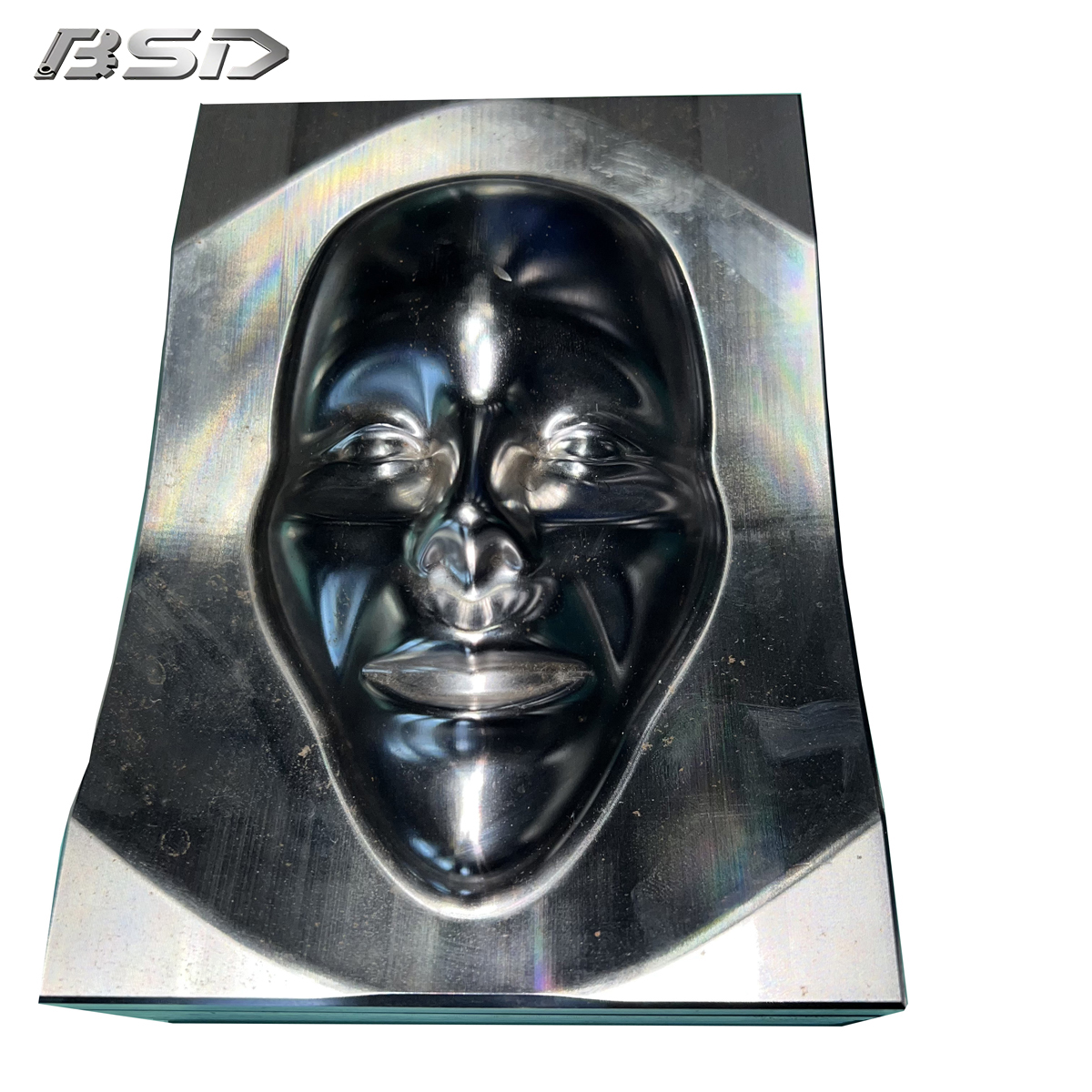

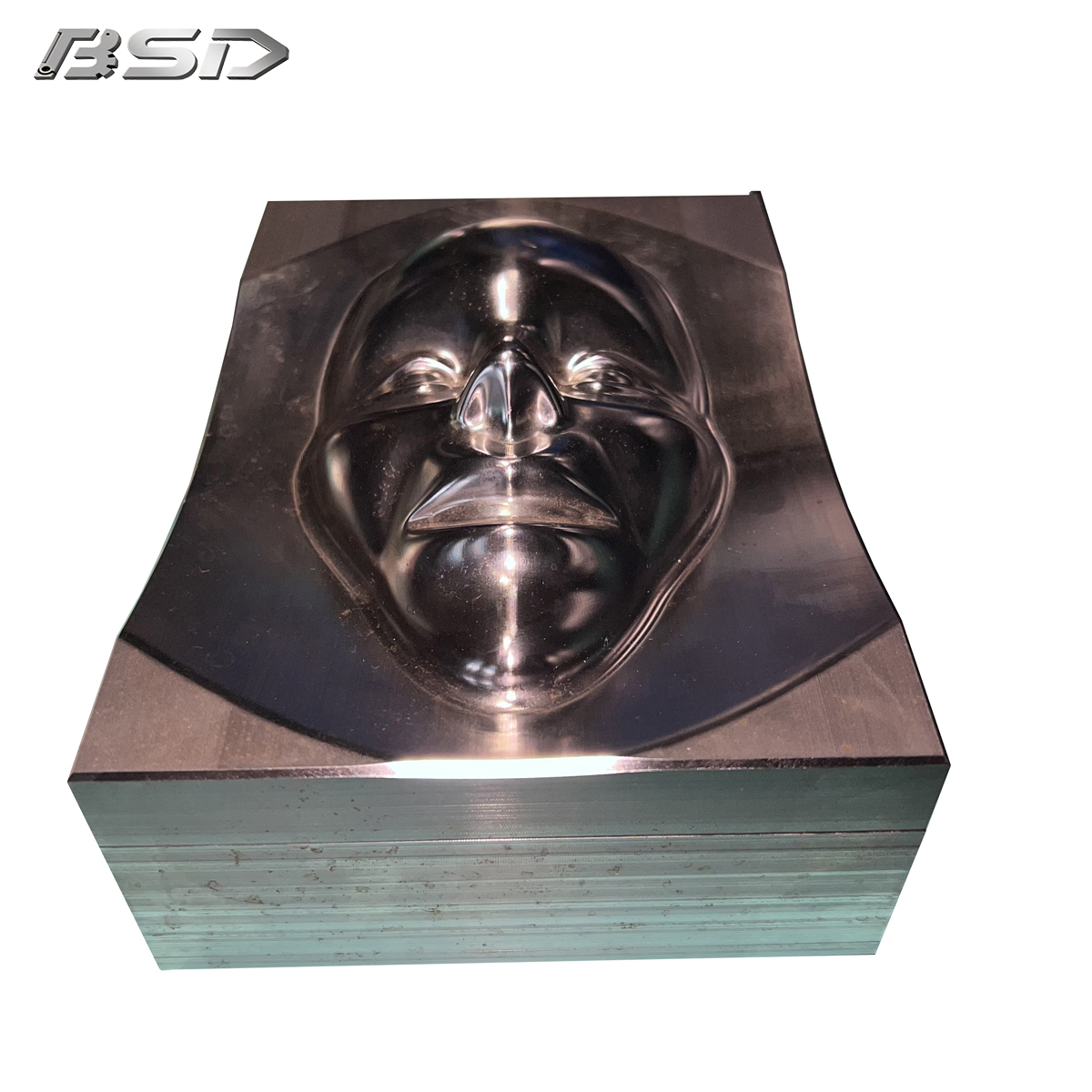

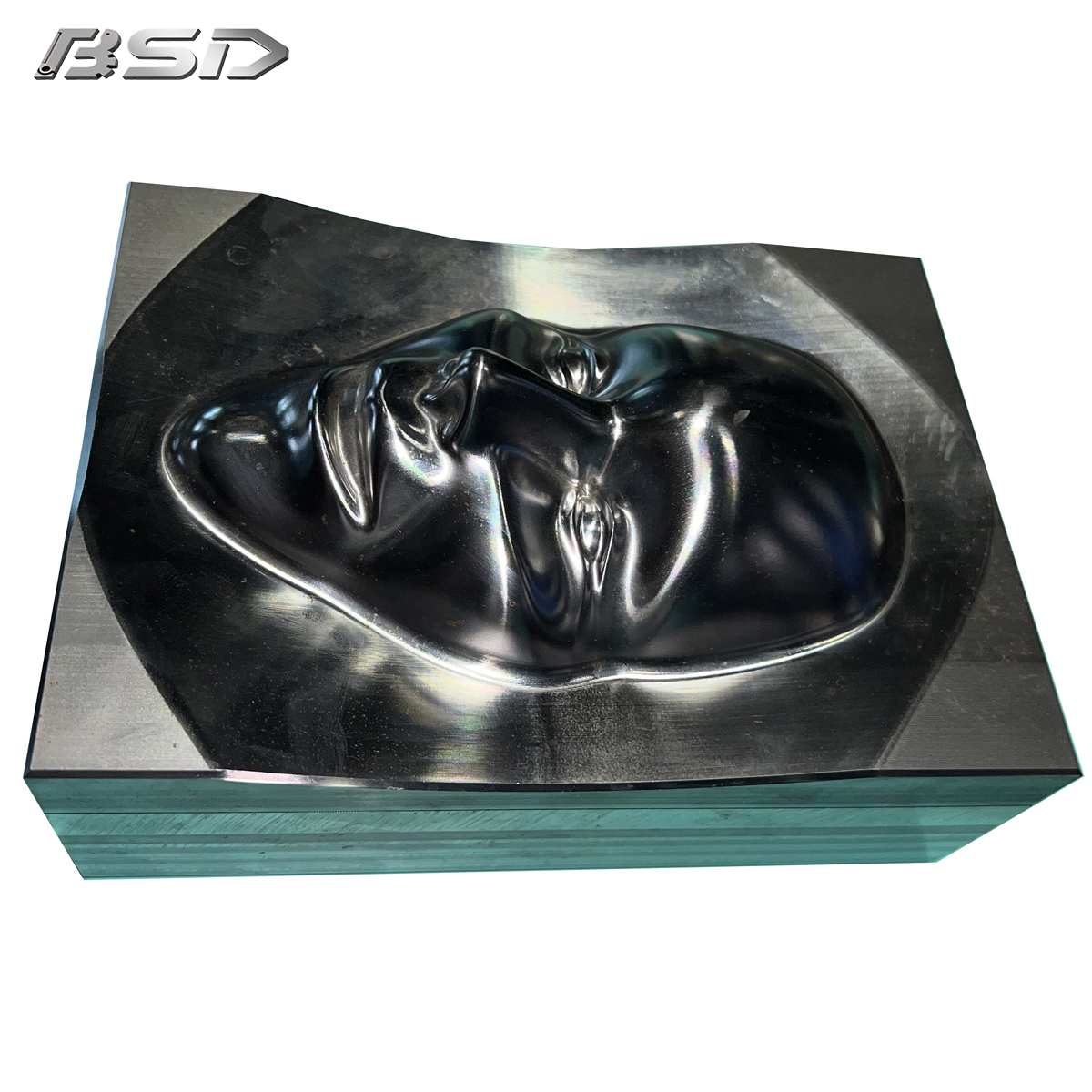

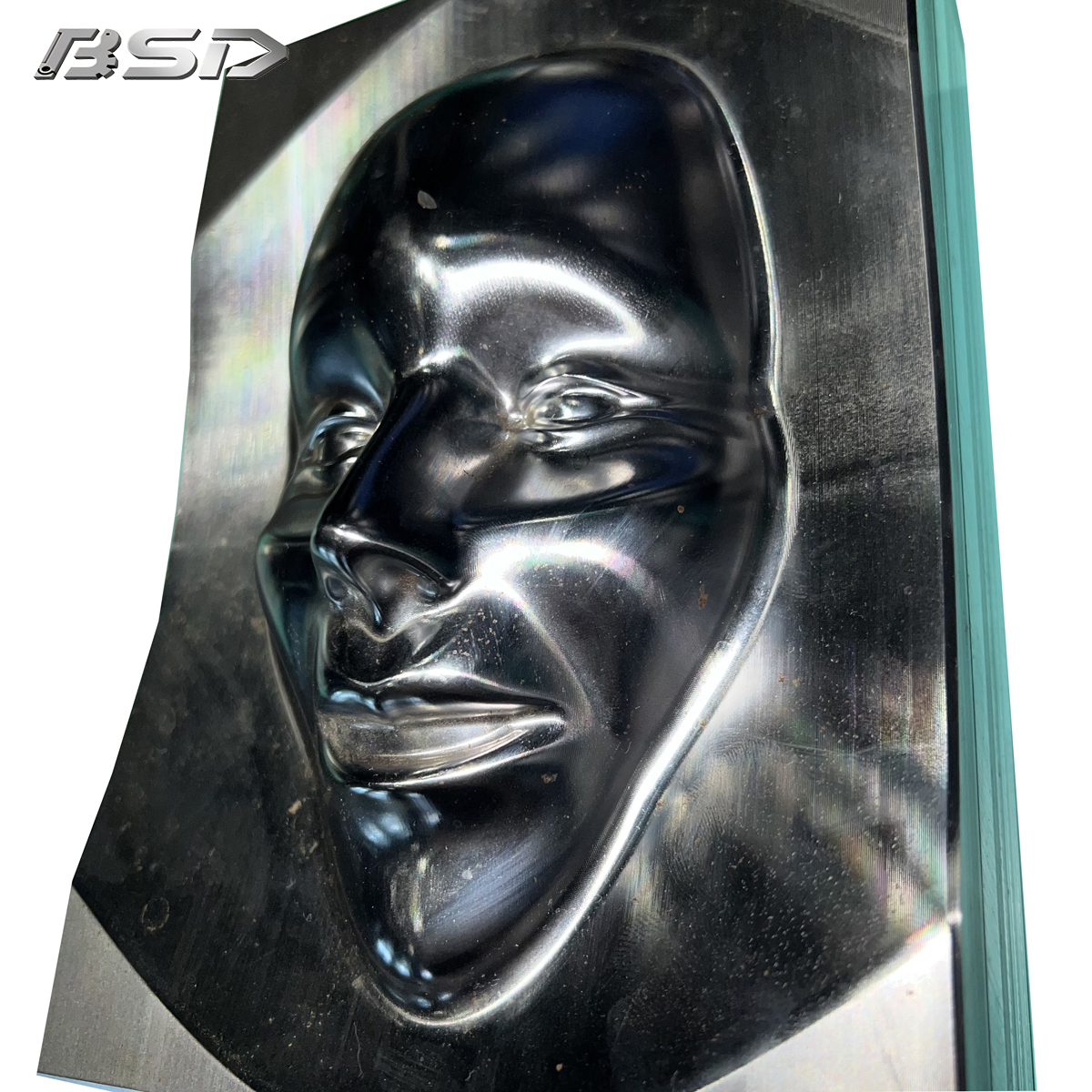

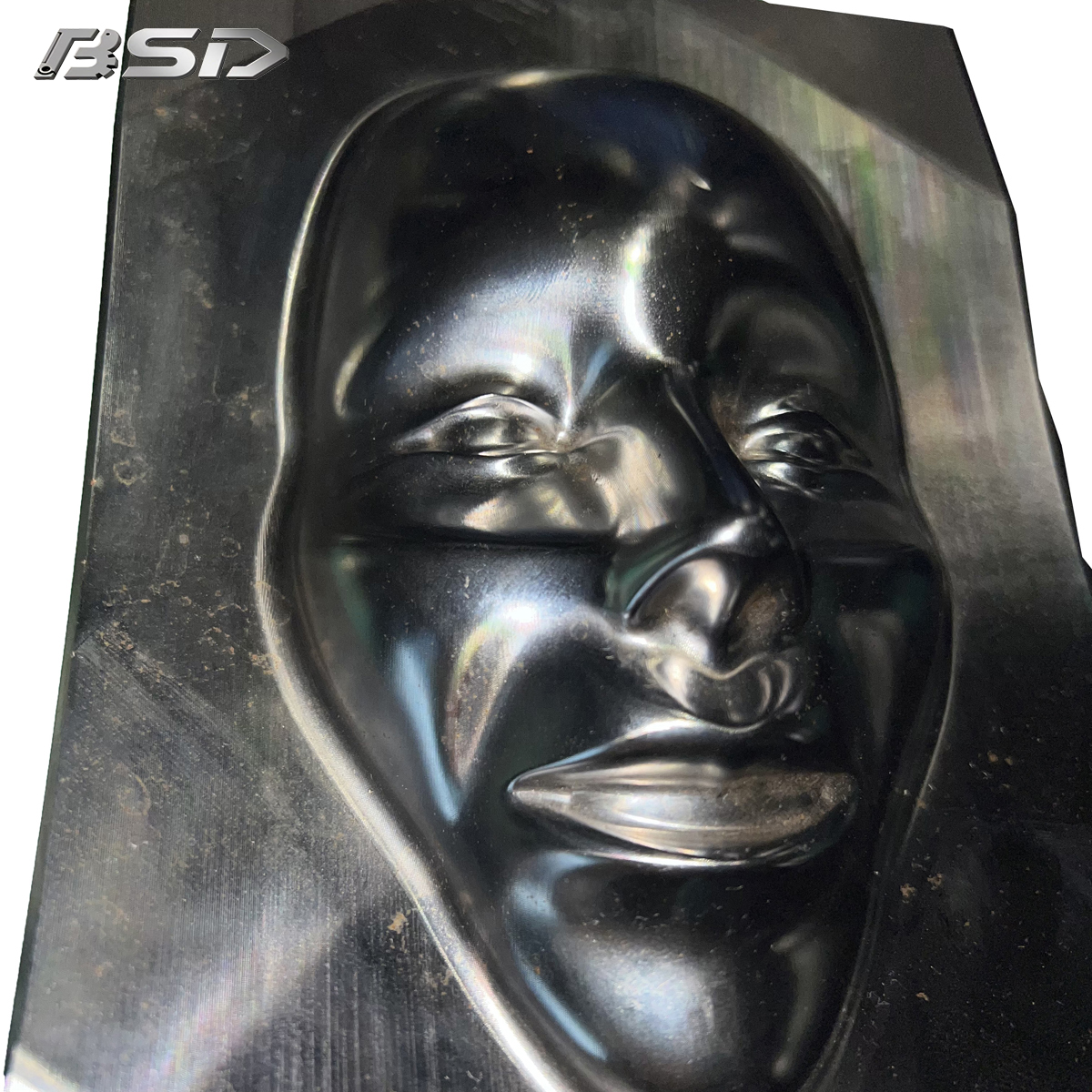

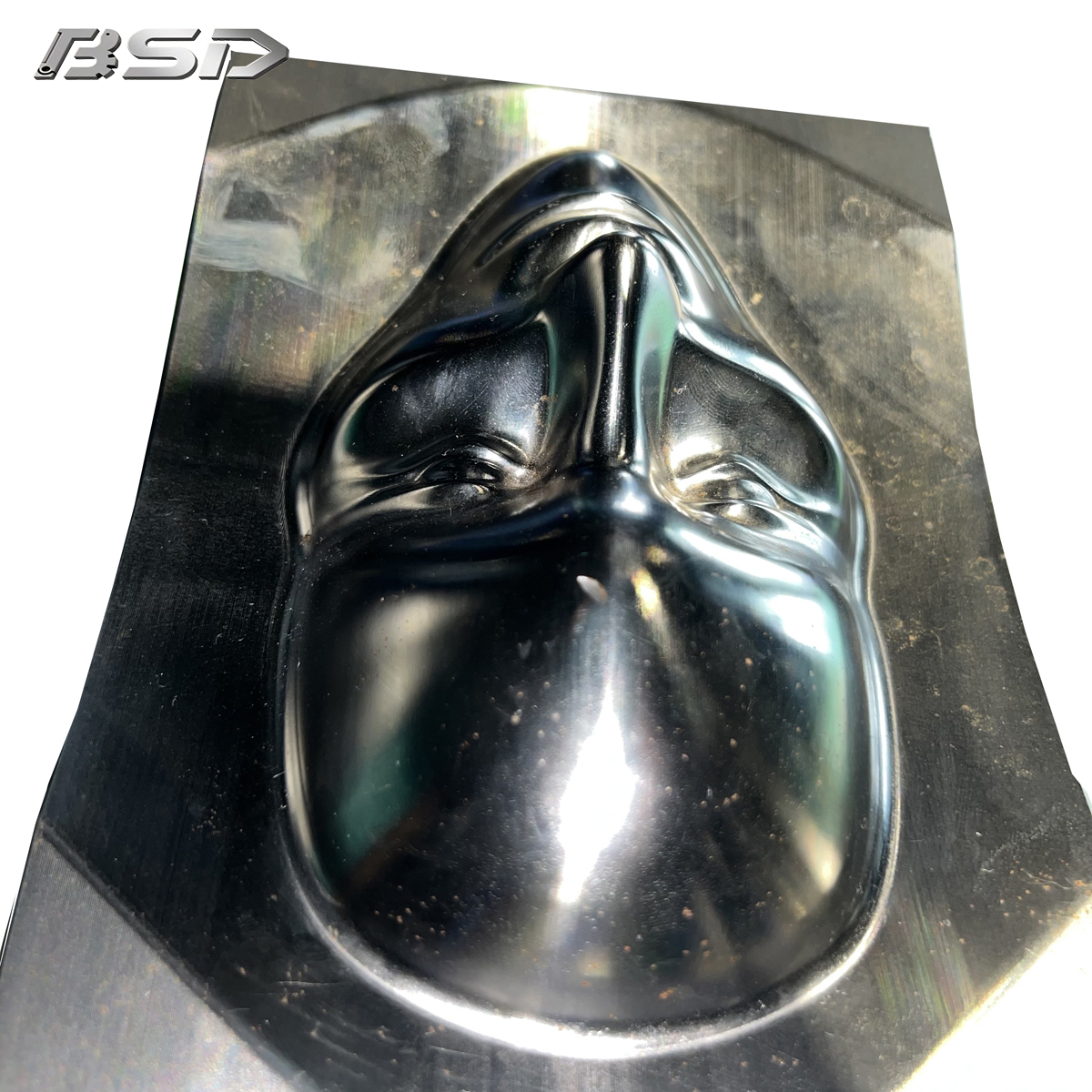

This high-precision portrait sculpture mold is expertly fabricated via simultaneous 5-axis CNC machining, engineered for mass replication in art casting, industrial prototyping, and custom manufacturing workflows. Crafted from high-grade tool steel or aluminum, this component showcases the pinnacle of 5-axis machining precision in reproducing complex, organic facial geometries. It serves as a critical master pattern for producing high-fidelity human face replicas used in decorative art, medical device modeling, and industrial design applications.
High-Performance Tool Steel: Constructed from H13 / P20 pre-hardened tool steel (or 7075-T6 aluminum for high-speed production runs), offering exceptional hardness, wear resistance, and dimensional stability for long-term mold usage.
Precision Stock Preparation: Raw blocks are precision-ground to achieve a base flatness of ≤0.01mm, followed by stress-relief annealing to eliminate internal material stresses, preventing warpage during the high-stress machining of deep cavities.
Bulk Material Removal (Roughing): High-efficiency 5-axis roughing utilizes high-feed cutters to rapidly remove excess material, establishing the overall rectangular block silhouette and roughing the primary facial cavity. Adaptive trochoidal toolpaths ensure maximum tool life and material removal rate.
3D Contour Profiling (Semi-Finishing): Utilizing the original 3D portrait CAD model, 5-axis machines perform simultaneous interpolation to mill the basic facial contours, nose, lips, and cheekbones. This stage ensures the accurate translation of 2D/3D design data into a physical 3D surface.
Ultra-Precision Finishing (High-Speed Machining - HSM): The critical phase for replicating fine facial details. High-speed 5-axis finishing employs small-diameter tungsten carbide cutters at high spindle speeds (12,000+ RPM) to machine the micro-details of the eyes, skin texture, and facial muscles. This process achieves an ultra-smooth surface finish of Ra ≤ 0.4μm.
Base & Flange Machining: Concurrent 5-axis operations machine the mounting flange, alignment pins, and parting lines, ensuring the mold integrates seamlessly with injection molding or casting equipment.
Manual Benching & Polishing: Post-CNC, skilled technicians perform hand benching to refine minute surface imperfections, enhancing the mold’s release properties and the final cast’s aesthetic clarity.
Hardening & Coating (Steel Molds): For H13 steel molds, post-machining heat treatment (quenching & tempering) achieves HRC 48-52 hardness. Optional Chrome Plating or Nitriding is applied to increase surface hardness, reduce friction, and extend mold lifespan.
3D Scanning & Reverse Engineering: A high-precision 3D laser scanner captures the physical mold surface, generating a point cloud that is instantly compared against the original CAD model. Geometric deviation is measured to ensure conformity within ±0.02mm.
Surface Roughness Testing: A portable profilometer verifies the ultra-fine finish (Ra ≤ 0.4μm) on facial contours, guaranteeing a smooth, skin-like surface for the replicated parts.
CMM (Coordinate Measuring Machine): Critical dimensional data such as mold depth, flange parallelism, and alignment hole positions are measured via CMM to ensure mechanical compatibility.
Hardness Testing: Rockwell hardness testing confirms the material’s hardness profile, ensuring it meets the structural requirements for repeated use.
Magnetic Particle Inspection (MPI): For steel molds, MPI detects micro-cracks or fatigue defects introduced during machining or heat treatment, preventing breakage in high-stress areas.
Mold Fit Check: A physical trial assembly is conducted to ensure perfect mating of the core and cavity, with precise registration of alignment pins.
Cast/Forming Trial: A sample replica is produced using the mold to visually inspect the fidelity of the facial features, ensuring no distortion or surface defects.
