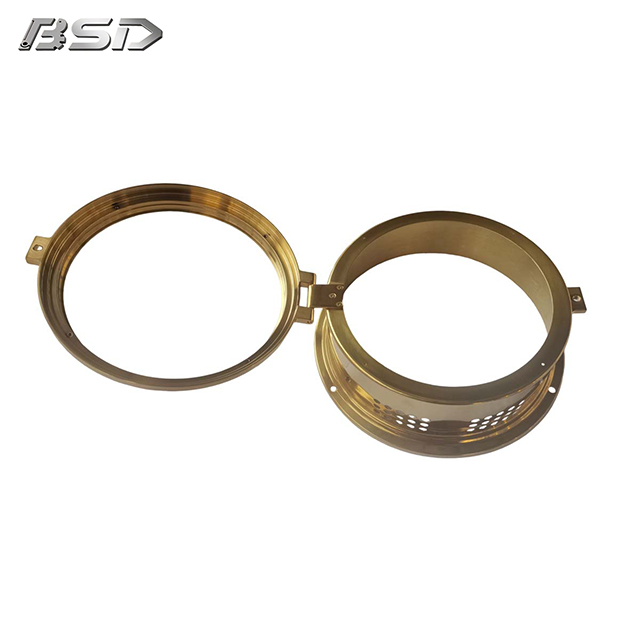

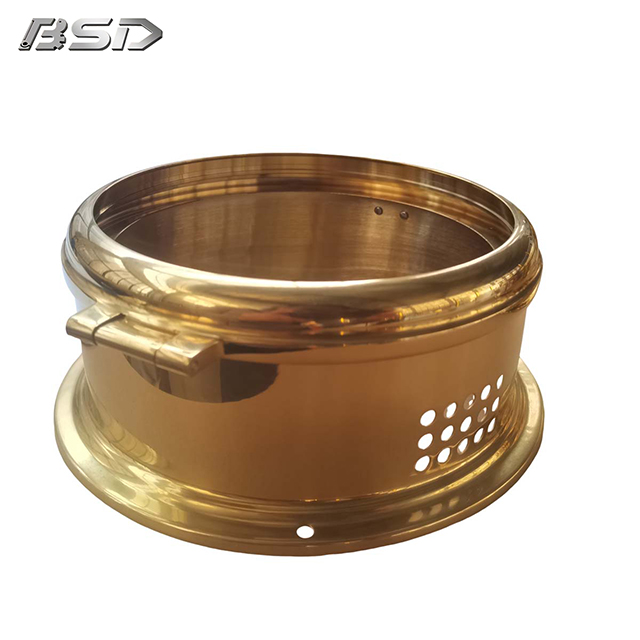

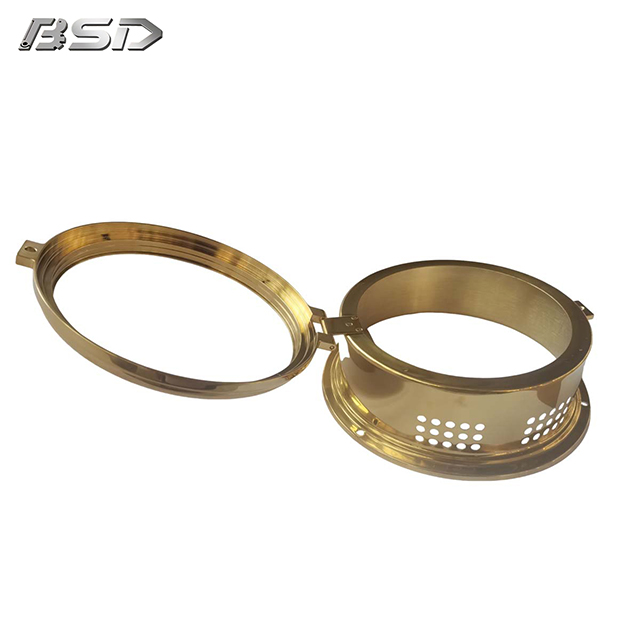

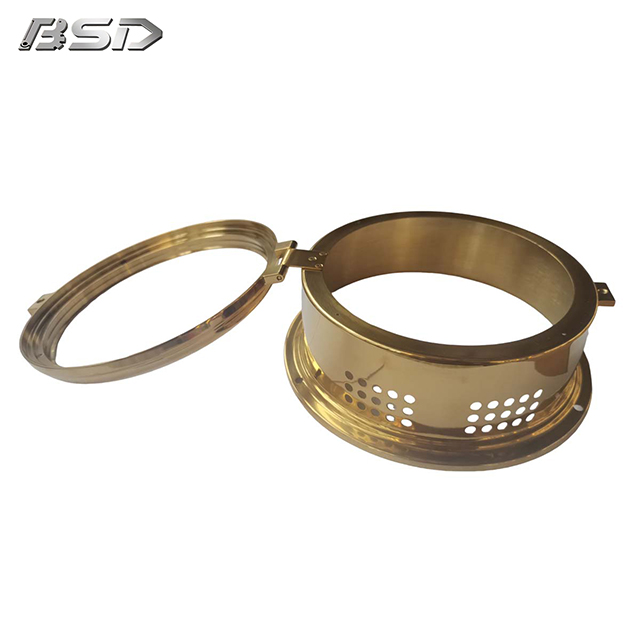

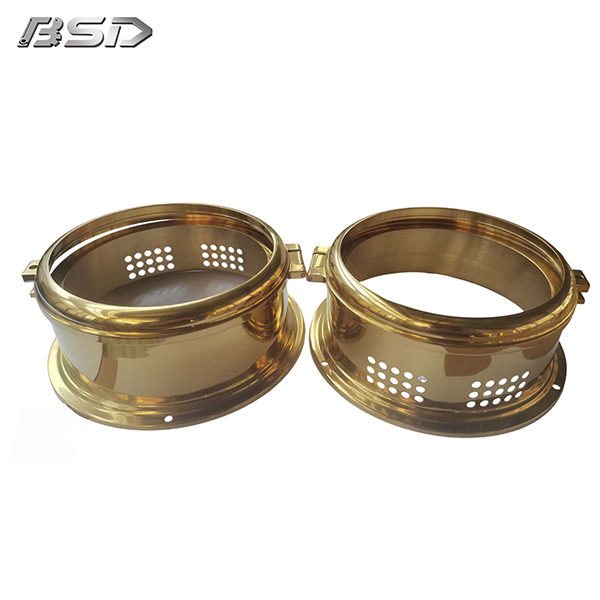

The Robot Joint Linkage Ring is a high-precision mechanical component manufactured through advanced CNC machining technology and designed for robotic joint assemblies requiring excellent dimensional accuracy, structural stability, and long-term operational reliability.
As a critical linkage component inside robotic motion systems, this part plays an important role in connecting, supporting, and maintaining precise movement between joint modules. Its optimized circular structure provides excellent concentricity, lightweight performance, and mechanical strength, making it suitable for high-cycle robotic operations.
BSD Precision Machinery specializes in producing complex CNC-machined metal components with strict dimensional control, advanced surface finishing capabilities, and comprehensive quality inspection processes to support robotics manufacturers and automation solution providers worldwide.
The robot joint linkage ring is manufactured using high-precision CNC machining equipment to achieve complex geometries and tight dimensional requirements.
Key machining processes include:
· CNC turning for circular precision features
· CNC milling for mounting structures and functional surfaces
· Precision drilling for weight reduction and assembly integration
· Multi-axis machining for improved surface consistency and accuracy
Through optimized machining parameters and professional tooling management, BSD ensures stable production quality from prototype development to mass production.
Robotic components require extremely precise coordination between moving parts. Even small dimensional deviations may affect:
· Joint rotation accuracy
· Mechanical stability
· Motion repeatability
· Service life of robotic systems
Our CNC machining process focuses on:
· High concentricity control
· Accurate hole positioning
· Stable wall thickness
· Consistent geometric tolerances
Each component is inspected according to customer drawings and technical specifications before shipment.
To improve durability and appearance, the component can be customized with different surface treatments according to application requirements:
Available options include:
· Anodizing for aluminum alloy components
· Hard anodizing for improved wear resistance
· PVD coating for enhanced surface performance
· Electroplating for corrosion protection
· Precision polishing for aesthetic applications
Surface finishing can be customized based on environmental conditions and mechanical requirements.
BSD provides various material solutions based on robotic application requirements:
Suitable for lightweight robotic structures requiring:
· Low weight
· Good machinability
· Excellent corrosion resistance
Suitable for applications requiring:
· Higher mechanical strength
· Wear resistance
· Long-term durability
Suitable for advanced applications requiring:
· High strength-to-weight ratio
· Excellent fatigue resistance
· Premium performance
Designed for robotic systems where accuracy matters, this component provides reliable dimensional consistency and stable mechanical performance.
The optimized ring structure reduces unnecessary material while maintaining sufficient rigidity, helping robotic systems achieve:
· Faster response speed
· Lower moving load
· Improved energy efficiency
The precision-machined structure helps maintain stable positioning and smooth movement during continuous operation.
Suitable for:
· High-frequency movement
· Repeated rotation cycles
· Automated production environments
BSD supports OEM and ODM projects with customized solutions including:
· Different dimensions
· Material selection
· Surface treatments
· Structural optimization
· Prototype development
Our engineering team can participate in early-stage DFM (Design for Manufacturing) analysis to improve product manufacturability and reduce production costs.

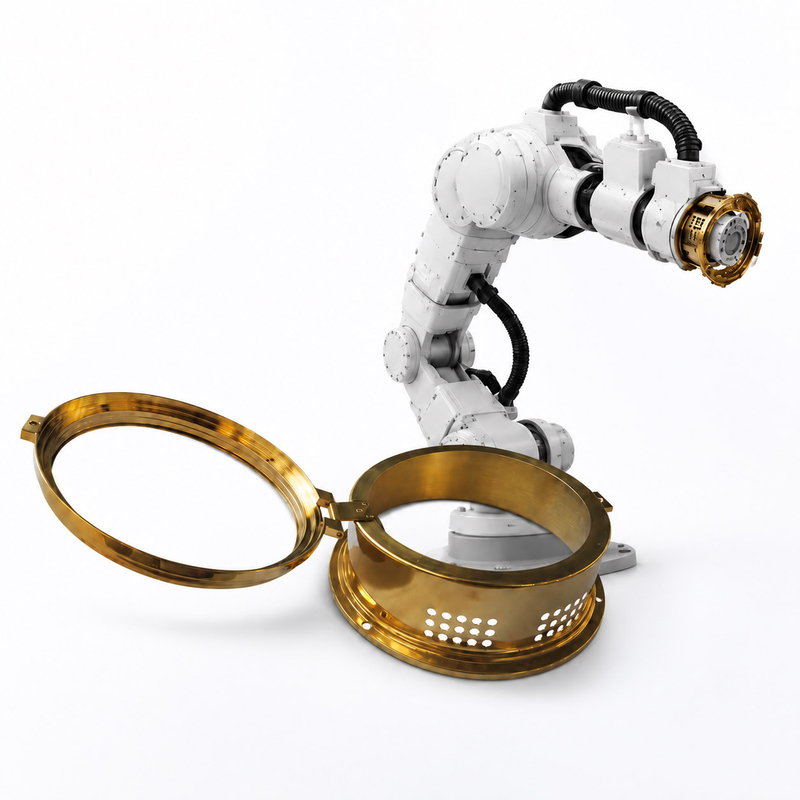

Used in robotic arms and automated manufacturing systems for:
· Automotive production lines
· Electronics assembly
· Precision manufacturing
· Material handling systems
Suitable for lightweight robotic platforms requiring:
· Compact structures
· High precision movement
· Reliable joint performance
Applied in precision robotic equipment such as:
· Surgical assistance systems
· Laboratory automation equipment
· Medical positioning devices
Used in:
· Smart factories
· Intelligent assembly systems
· Inspection robots
· Customized automation machinery
The precision machining capability makes it suitable for high-performance mechanical systems requiring strict quality control.
With years of experience in CNC machining, BSD provides complete manufacturing solutions from prototype machining to production-scale manufacturing.
Our machining capabilities include:
· 3-axis CNC machining
· 4-axis CNC machining
· 5-axis CNC machining
· Complex precision component manufacturing
Supporting customers with challenging geometries and demanding tolerance requirements.
Each component can be verified through advanced inspection equipment including:
· CMM coordinate measuring machines
· Dimensional inspection tools
· Surface quality inspection
Ensuring every part meets customer specifications.
BSD provides a complete manufacturing process:
Engineering Review → DFM Optimization → CNC Machining → Surface Treatment → Quality Inspection → Final Delivery
Helping customers shorten development cycles and achieve reliable production.
