CNC Milling vs. CNC Turning: What's the Difference and Which Process Is Right for Your Parts?

In today's manufacturing industry, precision, efficiency, and cost control are essential for producing high-quality metal components. Two of the most widely used CNC machining processes are CNC Milling and CNC Turning (also known as CNC Lathing). While both rely on computer-controlled machines to remove material with high accuracy, they operate in fundamentally different ways and are designed for different types of parts.

If you're an engineer designing a new component or a purchasing manager sourcing custom-machined parts, understanding the differences between these two processes can help you reduce manufacturing costs, shorten lead times, and improve product performance.

In this article, we'll explore what CNC Milling and CNC Turning are, how they work, where each process excels, and how to choose the right one for your next project.

What Is CNC Milling?

CNC Milling is a subtractive manufacturing process in which the cutting tool rotates while the workpiece remains fixed. Controlled by a CNC program, the machine moves the cutting tool along multiple axes to remove material and create the desired shape.

Modern machining centers range from simple 3-axis machines to advanced 5-axis systems capable of producing highly complex geometries in a single setup.

Because the tool can approach the workpiece from different directions, CNC Milling is ideal for producing components with flat surfaces, pockets, slots, contours, and intricate three-dimensional features.

Typical CNC milled parts include:

· Electronic housings

· Medical device components

· Robot brackets

· Aerospace structural parts

· Mold inserts

· Heat sinks

· Precision fixtures

· Bicycle and motorcycle components

What Is CNC Turning?

CNC Turning, often referred to as CNC Lathing, works differently. Instead of the cutting tool rotating, the workpiece rotates at high speed while the cutting tool remains stationary or moves linearly to remove material.

This process is specifically designed for manufacturing cylindrical or rotationally symmetrical parts with excellent accuracy and surface finish.

Common CNC turned components include:

· Shafts

· Bushings

· Sleeves

· Valve bodies

· Hydraulic fittings

· Threaded connectors

· Bearings

· Medical implants

Since turning machines continuously around the center axis, it is significantly more efficient than milling for round components.

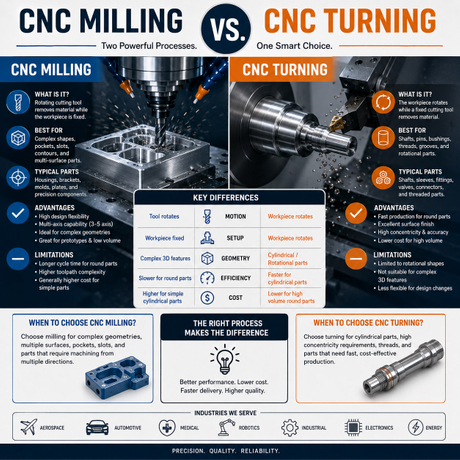

How Do CNC Milling and CNC Turning Differ?

Although both processes remove material from solid stock, the primary difference lies in which element rotates.

In CNC Milling, the cutting tool spins while the workpiece stays fixed.

In CNC Turning, the workpiece spins while the cutting tool performs the cutting operation.

This seemingly simple difference determines the types of geometries each process can produce efficiently.

Generally speaking:

· Milling specializes in complex, non-symmetrical shapes.

· Turning specializes in cylindrical and rotational components.

Which Parts Should Be Manufactured Using CNC Milling?

CNC Milling is the preferred choice whenever a component contains complex geometry that cannot be created by rotating a workpiece.

Examples include:

Components with Flat Surfaces

Machine bases, mounting plates, brackets, and housings all require accurate flat faces.

Complex 3D Geometry

Aerospace brackets, medical implants, and robotics components often feature curved surfaces and intricate profiles.

Multiple Holes and Pockets

Parts containing precision pockets, cavities, threaded holes, or internal channels are typically milled.

Multi-Sided Components

When different features must be machined on several faces, especially with 4-axis or 5-axis machining, milling provides excellent flexibility.

Prototype Parts

Engineers developing new products often use CNC Milling because design changes can be implemented quickly without dedicated tooling.

Which Parts Should Be Manufactured Using CNC Turning?

Whenever a part is primarily round or rotationally symmetrical, CNC Turning is usually the most efficient solution.

Examples include:

Shafts

Motor shafts, drive shafts, transmission shafts, and precision guide shafts.

Bushings and Sleeves

Widely used in automotive, industrial equipment, and robotics.

Threaded Components

Pipe fittings, connectors, adapters, and hydraulic fittings.

Valve Components

Valve stems, seats, and precision cylindrical sealing surfaces.

Medical Components

Bone screws, dental implants, and surgical instrument handles.

Turning produces these components faster, with better concentricity and lower manufacturing costs than milling.

When Should You Choose CNC Milling?

Choose CNC Milling if your part:

· Contains irregular or complex geometry

· Requires multiple machined surfaces

· Includes pockets, slots, or cavities

· Needs freeform or curved surfaces

· Requires machining from multiple directions

· Involves prototype development or low-volume production

For components that demand design flexibility and intricate features, milling offers unmatched versatility.

When Should You Choose CNC Turning?

Choose CNC Turning if your part:

· Is primarily cylindrical

· Requires high concentricity

· Includes external or internal threads

· Needs excellent surface finish on round surfaces

· Will be produced in medium or high volumes

· Prioritizes lower machining costs and shorter cycle times

For rotational components, turning often delivers superior productivity and cost efficiency.

Advantages of CNC Milling

Exceptional Design Flexibility

Milling can produce highly complex geometries that would be impossible with turning.

Multi-Axis Capability

Modern 5-axis machining reduces setups while improving accuracy.

High Precision

Excellent dimensional accuracy for complex components.

Broad Material Compatibility

Suitable for aluminum, stainless steel, titanium, brass, engineering plastics, and many specialty alloys.

Ideal for Complex Assemblies

Allows machining of multiple features within a single component.

Advantages of CNC Turning

Faster Production

Turning removes material rapidly from round stock, significantly reducing machining time.

Lower Manufacturing Cost

Shorter cycle times often result in lower production costs.

Superior Surface Finish

Continuous cutting around the rotating workpiece produces smooth surfaces.

Excellent Concentricity

Ideal for shafts, bearings, and precision cylindrical parts.

High Repeatability

Perfect for medium- and high-volume manufacturing.

Limitations of CNC Milling

Despite its flexibility, CNC Milling has some limitations:

· Longer machining times for round parts

· Higher programming complexity

· Increased tooling costs

· More expensive for simple cylindrical components

Limitations of CNC Turning

CNC Turning is highly efficient but less versatile.

It is generally not suitable for:

· Complex freeform surfaces

· Large pockets

· Deep cavities

· Multi-sided geometries

· Irregular external shapes

Many advanced products therefore combine turning and milling operations.

Can One Part Require Both Processes?

Absolutely.

Many precision components require both CNC Turning and CNC Milling to achieve their final geometry.

For example, a precision shaft may first be turned to create the cylindrical body, then transferred to a machining center—or processed on a turn-mill machine—to add flats, keyways, cross holes, or mounting features.

This hybrid manufacturing approach improves both efficiency and dimensional accuracy.

Conclusion

CNC Milling and CNC Turning are not competing technologies—they are complementary manufacturing processes, each designed for different applications.

If your part features complex geometries, multiple surfaces, or intricate details, CNC Milling is typically the best choice.

If your component is cylindrical and requires high concentricity, excellent surface finish, and cost-effective production, CNC Turning offers clear advantages.

Selecting the right process at the design stage can significantly reduce manufacturing costs, improve production efficiency, and enhance final product quality.

Working with an experienced machining partner who can evaluate your design and recommend the most suitable manufacturing process is often the key to achieving the best balance between performance, quality, and cost.
