Robot joints bear the absolute brunt of mechanical stress within any automated system. Whether it is a heavy-duty industrial arm hoisting a 500kg payload or an agile humanoid performing delicate micro-assembly, flawless kinematic motion hinges entirely on the structural integrity of these pivot points. Introduce a poorly machined joint into the assembly, and the entire kinematic chain will inevitably fail prematurely.
Precision machining is not just a manufacturing luxury; it is the fundamental engineering solution to eradicate persistent problems like backlash and dynamic friction. In this technical guide, we break down the exact shop-floor protocols required to master geometric alignment, secure the perfect mechanical fit, and lock in batch-to-batch repeatability. By understanding these machining dynamics, engineers and procurement managers can effectively source and deploy highly reliable components.

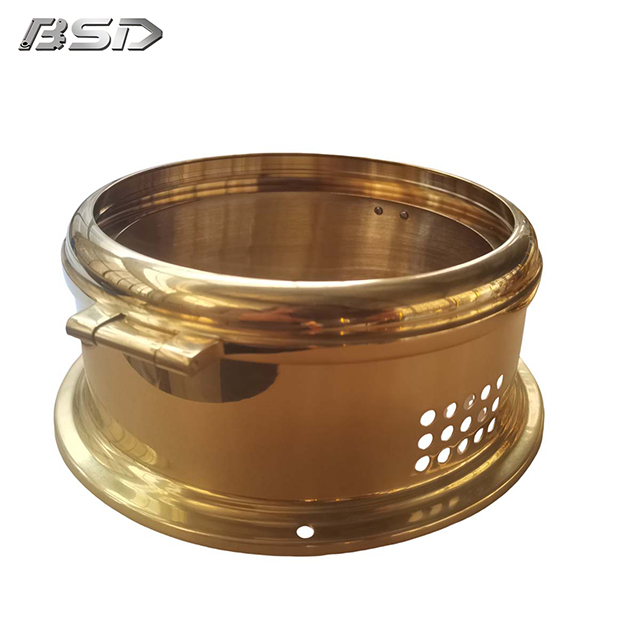

In robotic engineering, joints dictate the system's degrees of freedom, maximum payload capacity, and spatial accuracy. A robotic arm is essentially a complex series of cantilevered beams connected by rotating pivots. If a base joint has even a microscopic deviation of 0.01mm, that error amplifies exponentially at the end-effector. This geometric phenomenon is known as angular error multiplication, and it is the enemy of precision automation.
Recent industry analyses highlight a massive paradigm shift in automation manufacturing. With the exponential growth of collaborative robots (cobots) and the rapid commercialization of humanoid systems, the demand for ultra-precise articulation has skyrocketed. The prevailing trend indicates that OEMs are actively moving away from bulky, off-the-shelf actuators. Instead, the market is pivoting toward custom-engineered, ultra-compact modules that integrate gearboxes, absolute encoders, and frameless motors into a single housing. This high-density integration leaves absolutely zero margin for machining errors.
Consequently, when fabricating precision robotic components, substandard material removal leads directly to mechanical failure. The most detrimental consequence is backlash—the unwanted play between mating gear teeth or shafts. Backlash destroys motion calibration and induces severe chatter during high-speed movements. Furthermore, excessive friction generated by poorly finished bearing seats accelerates wear on drive mechanics, drastically reducing the operational lifespan of the robot.
To establish a rigorous baseline for manufacturing excellence, engineering teams must lock down three primary metrics before a spindle ever turns:
Alignment: The exact geometric positioning of the joint's rotational axis in relation to the robot's kinematic model. It ensures the joint rotates precisely where the software calculates it should, eliminating eccentric wobble.
Fit: The critical dimensional relationship between mating components, such as a harmonic drive shaft and a bearing housing. This dictates how tightly or loosely parts interact under thermal and physical loads.
Repeatability: The manufacturing facility's ability to hold the exact same micro-tolerances across an entire production run. Part number 5,000 must perform identically to the first article prototype.
Controlling alignment begins long before the raw billet is loaded into the machine. It starts in the CAD/CAM phase with strict adherence to Geometric Dimensioning and Tolerancing (GD&T). For high-performance robot joints, standard linear tolerances (e.g., ±0.005mm) are insufficient on their own. Engineers must meticulously control the form, profile, and orientation of every critical feature.
Specifically, concentricity and runout are non-negotiable for bearing bores and rotating shafts. If a drive shaft is machined slightly eccentric, it will cause the entire joint assembly to wobble, introducing cyclical fatigue into the motor. Perpendicularity and parallelism are equally vital for mounting flanges. By strictly enforcing these advanced GD&T standards, manufacturers guarantee that CNC machined robotics parts align perfectly with the theoretical axes programmed into the robot's controller.
In practice, the alignment of a finished part is only as good as the fixture holding it during the milling process. Standard machine vises are notorious for applying uneven clamping forces. When an operator cranks down a vise on a thin-walled aluminum joint housing, the metal flexes. The machine cuts a perfectly round bore, but once the part is released, the metal springs back into its original state. The bore instantly becomes egg-shaped, throwing the joint out of alignment.
To prevent this structural distortion, advanced machine shops utilize custom jigs and zero-point clamping systems. These specialized setups hold the raw material securely without inducing localized stress. For highly fragile geometries, machinists employ soft jaws or vacuum fixtures to distribute the clamping force evenly across the surface area. This strategic workholding ensures the geometry remains true during aggressive roughing passes and delicate finishing operations.
Tolerance stack-up occurs when the acceptable deviations of multiple individual parts accumulate in the final assembly. The result is a total deviation that exceeds original design limits. In a robotic joint comprising a motor mount, a strain wave gear, bearings, and an outer casing, a microscopic error in each component can easily push the final assembly out of spec.
To mitigate this risk, machinists approach fabrication with the final assembly explicitly in mind. This often involves machining critical mating surfaces in a single operation. Alternatively, manufacturers utilize match-machining techniques, physically pairing components and finishing them together to guarantee a flawless mechanical interface.
The operational functionality of a robotic joint relies heavily on the physical interface of its internal components. Consider the precise fit between a hardened steel dowel pin and a lightweight aluminum housing. This single interaction determines whether the joint will articulate smoothly or bind catastrophically under load. Engineers typically specify three distinct types of fits based on strict ISO standards:
| Fit Type (ISO Standard) | Engineering Description | Robotics Application |
|---|---|---|
| Clearance Fit (e.g., H7/g6) | The shaft diameter is always intentionally smaller than the bore. Allows for thermal expansion and lubrication films. | Pivot pins requiring free rotation; low-load linkage arms. |
| Transition Fit (e.g., H7/k6) | Results in either a slight clearance or slight interference. Requires precise alignment during manual assembly. | Dowel pins used for locating gearbox housings prior to bolting. |
| Interference Fit (e.g., H7/p6) | The shaft is always larger than the hole. Requires thermal shrinking or mechanical press-fitting. | Cross-roller bearing installations; rigid structural motor mounts. |
Achieving these exact fits requires micro-precision, frequently demanding machining tolerances tighter than ±0.002mm on bearing journals.
Dimensional accuracy alone does not guarantee a perfect fit; the micro-texture of the metal surface is equally critical. For dynamic robot linkage components that experience continuous, high-frequency movement, surface roughness directly dictates friction coefficients and long-term wear.
A high Ra (Roughness Average) value indicates a surface characterized by microscopic peaks and valleys. When two rough surfaces mate under high torque, these peaks shear off. This generates metallic debris that quickly infiltrates sensitive bearings, causing catastrophic failure. By utilizing high-speed 20,000 RPM spindles, low feed rates, and specialized wiper end-mills, machinists can reliably achieve Ra values between 0.4 µm and 0.8 µm. This ensures smooth, low-friction articulation right out of the box.
One of the most overlooked variables in achieving a perfect fit is the management of thermal expansion on the shop floor. The friction generated by a solid carbide cutting tool transfers intense heat directly into the workpiece. Metals like Aluminum 7075-T6 expand significantly when subjected to this thermal load.
Imagine a scenario where a joint bore is machined to its exact tolerance while the aluminum is hot. As the part cools on the inspection bench, the metal contracts. The hole shrinks, resulting in an undersized bore that completely rejects the bearing press-fit. To control this thermal fluctuation, high-end manufacturing facilities utilize high-pressure, through-spindle coolant systems. These systems maintain the workpiece at a stable ambient temperature, ensuring the dimensions measured inside the machine perfectly match the dimensions verified in a temperature-controlled QC lab.
When scaling production for OEM robotics, consistency is mandatory. Repeatability is essentially process stability disguised as a metric. It relies entirely on locking down every single variable of the manufacturing workflow.
Once a prototype joint is validated, the exact CNC program (G-code), cutting speeds, feed rates, and tool path strategies must be strictly documented. Even a minor, unauthorized change by an operator—such as manually overriding a feed rate by 10% to save cycle time—can alter cutting tool deflection. This subtle shift can change the dimensions of the final product just enough to cause an assembly failure downstream.
Cutting tools experience microscopic edge wear with every single pass across the metal. Over a continuous production run, an end-mill that loses just 0.01mm of its cutting edge will cause the dimensions of the machined features to drift out of the acceptable tolerance band.
To combat this, modern manufacturing facilities utilize automated tool wear compensation to maintain strict repeatability in automation parts. The CNC machine continuously monitors the electrical load on the spindle. As a tool dulls, it requires more torque to shear the material. The machine's intelligent controller detects this microscopic increase in load and automatically adjusts the tool offsets, ensuring dimensional consistency without requiring human intervention.
To further guarantee batch-to-batch repeatability, advanced setups integrate spindle-mounted touch probes. Before a finished part is unclamped and removed from the fixture, the probe physically measures the critical dimensions of the joint directly on the machine table.
If a measured dimension is drifting near the upper or lower control limit of the tolerance band, the closed-loop system automatically updates the machining parameters for the next part. In some cases, it triggers a finishing re-cut on the current part. This real-time feedback loop virtually eliminates the risk of producing scrap components.
Traditional 3-axis machining requires a part to be manually repositioned multiple times to access different faces. Every time a component is unclamped, flipped, and re-clamped, a small margin of setup error is introduced. For highly complex robotic joints, this multi-setup process is entirely unacceptable, as errors quickly compound.
Implementing 5-axis CNC machining allows the cutting tool to approach the workpiece from virtually any angle simultaneously. This enables the manufacturer to mill the front, back, sides, and complex internal angles of a joint housing in a single, uninterrupted setup. This "done-in-one" approach drastically reduces human handling errors, eliminates setup-induced tolerance stack-up, and ensures absolute spatial alignment of all interconnected features.
The expansive capabilities of 5-axis technology also free design engineers from traditional manufacturing constraints. Modern untethered humanoid robots require components that are incredibly strong yet ultra-lightweight to maximize battery life and payload efficiency.
Using simultaneous 5-axis machining centers, engineers can easily mill organic, generative-design geometries. Features such as deep pocketing, internal lattice structures, and complex undercuts remove unnecessary weight while maintaining absolute structural rigidity in high-stress zones. A single monolithic part machined via 5-axis often replaces heavy, multi-part bolted assemblies, greatly enhancing overall structural integrity.
The physical performance and longevity of a robot joint are fundamentally limited by its underlying material. Engineers must carefully balance yield strength, total mass, and how easily the material can be machined without causing excessive tool wear or thermal warping.
| Material Grade | Engineering Characteristics | Ideal Robotic Application |
|---|---|---|
| Aluminum 7075-T6 | Yield strength of ~500 MPa. Exceptional strength-to-weight ratio comparable to mild steel. Excellent machinability and thermal conductivity. | Fast-moving SCARA arms; lightweight humanoid knee and shoulder joints. |
| Stainless Steel (17-4 PH) | High hardness and superb corrosion resistance. Heavier mass limits dynamic acceleration. Prone to work-hardening during machining. | Heavy-duty base joints; automation exposed to moisture or harsh washdown chemicals. |
| Titanium (Ti-6Al-4V) | Ultimate strength-to-weight ratio. Highly resistant to cyclical fatigue. Low thermal expansion, but notoriously difficult to machine. | Aerospace robotics; medical surgical robots; premium humanoid structural linkages. |
Selecting the optimal alloy ensures the component can withstand continuous dynamic payloads without yielding, fracturing, or prematurely wearing out the precision drive mechanics.
Raw materials naturally contain trapped internal residual stresses created during their initial forging or rolling processes. When a CNC machine aggressively removes large volumes of material to form a delicate, thin-walled joint housing, these trapped stresses are rapidly released. This release causes the part to warp or twist after it is removed from the fixture.
To maintain precise alignment and fit, raw materials must undergo stress-relieving thermal treatments. For example, utilizing pre-tempered aluminum blocks or performing a stress-relief bake on titanium parts midway through the roughing process ensures the geometry remains dimensionally stable long after fabrication is complete.
One of the most significant hurdles for robotics OEMs is transitioning a successful, custom-machined prototype into a cost-effective mass production run. A prototype joint might be machined slowly, utilizing overly tight tolerances on every single surface simply to guarantee it works. However, applying these slow, expensive prototype methods to a production run of 5,000 units is financially unviable.
The solution lies in rigorous Design for Manufacturability (DFM) analysis. By evaluating the prototype, manufacturing engineers can identify which surfaces truly require micron-level precision (such as bearing seats and encoder mounts) and which surfaces are merely cosmetic (like outer protective casings). Relaxing tolerances on non-critical areas drastically reduces cycle time, tool wear, and overall production costs.
Achieving ultra-high precision is inherently expensive due to the required machinery, specialized tooling, and extended cycle times. OEMs must carefully balance their budgetary constraints with strict technical requirements. Partnering with a specialized facility allows OEMs to leverage value engineering.
Experienced manufacturing partners can suggest minor, yet impactful, design alterations. Simple changes—such as standardizing internal corner radii to match off-the-shelf end-mill sizes, or adjusting hole depths to prevent tool chatter—can save thousands of dollars without sacrificing the joint's mechanical integrity or kinematic accuracy.
In the high-stakes realm of precision robotics, if a dimension cannot be measured accurately, it cannot be trusted. Standard hand tools like calipers and micrometers are entirely insufficient for verifying the complex 3D geometries and spatial relationships of modern joint components.
Final quality control relies heavily on Coordinate Measuring Machines (CMM). A CMM uses a highly sensitive, ruby-tipped tactile probe to map the physical geometry of the machined part against the original CAD model. This empirical data verifies that all GD&T requirements—such as the true position of a gear shaft bore or the absolute flatness of a mounting face—meet the exact micro-tolerances required for flawless robotic assembly.
Before full-scale mass production begins, a comprehensive First Article Inspection (FAI) is conducted. This rigorous reporting process documents every single dimension, material certification, and process parameter of the first machined part off the line.
For OEMs building critical automation systems, this documentation provides absolute traceability. It ensures that the structural integrity, material composition, and geometric precision of the robotic joint are scientifically validated before the system is deployed into the field.
Mastering alignment, fit, and repeatability requires a synergy of advanced machinery, intelligent programming, and unyielding quality control protocols. Engineers and procurement teams should partner with proven manufacturing experts who understand the unique demands of the robotics industry. If you are looking to scale your robotic designs from prototype to flawless execution, explore the precision manufacturing solutions at BSD Machinery to find the exact component fabrication capabilities your automation projects demand.
While specific requirements vary based on the robot's size, payload, and application, precision robot joints typically demand extremely tight tolerances ranging from ±0.01mm to ±0.005mm. These micro-tolerances are strictly enforced on bearing journals, shaft fits, and alignment pin holes to ensure zero backlash, minimize friction, and guarantee smooth, repeatable kinematic motion throughout the robot's lifecycle.
5-axis machining allows complex, multi-sided joint components to be milled in a single, continuous setup. By manipulating the part across five axes without removing it from the fixture, manufacturers completely eliminate the setup-induced alignment errors that inevitably occur when parts are manually transferred between multiple 3-axis machines. This single-datum approach is critical for maintaining true position and concentricity.
Backlash—the undesirable play or mechanical clearance between interlocking parts—is prevented by achieving a perfect transition or interference fit between mating components. This requires strict adherence to advanced GD&T principles, ultra-smooth surface finishes to prevent premature wear, and rigorous CMM inspection to ensure the physical part matches the nominal CAD dimensions flawlessly.
Humanoid robots operate under strict power constraints and require a high strength-to-weight ratio to conserve battery life while enabling highly dynamic, agile movements. Aluminum 7075-T6 is heavily utilized for its lightweight properties and high yield strength. For components bearing extreme loads or requiring thinner structural profiles, Titanium (Ti-6Al-4V) is highly preferred due to its superior structural integrity and low mass.
Repeatability in high-volume production is achieved through strict process stability. This involves utilizing standardized, zero-point workholding systems, locking in optimized CNC tool paths, and rigorously managing thermal expansion within the machining environment. Furthermore, modern CNC centers utilize automated tool-wear compensation and in-machine spindle probing to detect and adjust for microscopic deviations before the part is even finished.
Surface roughness dictates the friction coefficient between moving parts. If mating surfaces like bearing seats or gear mounts have a high Ra value, the microscopic peaks will shear off under dynamic load. This creates metallic dust that acts as an abrasive, rapidly destroying sensitive internal mechanics. Maintaining a low Ra value (0.4 µm to 0.8 µm) ensures smooth operation and significantly extends the joint's lifespan.
Linear tolerance only controls the size of a feature (e.g., a hole must be exactly 20.00mm ±0.01mm). Geometric tolerance (GD&T) controls the shape, orientation, and location of that feature. In robotics, a hole might be the perfect size, but if it is machined at a slight angle (poor perpendicularity) or is slightly oval (poor cylindricity), the joint will wobble or bind. GD&T ensures the feature is both the correct size and perfectly positioned in 3D space.
