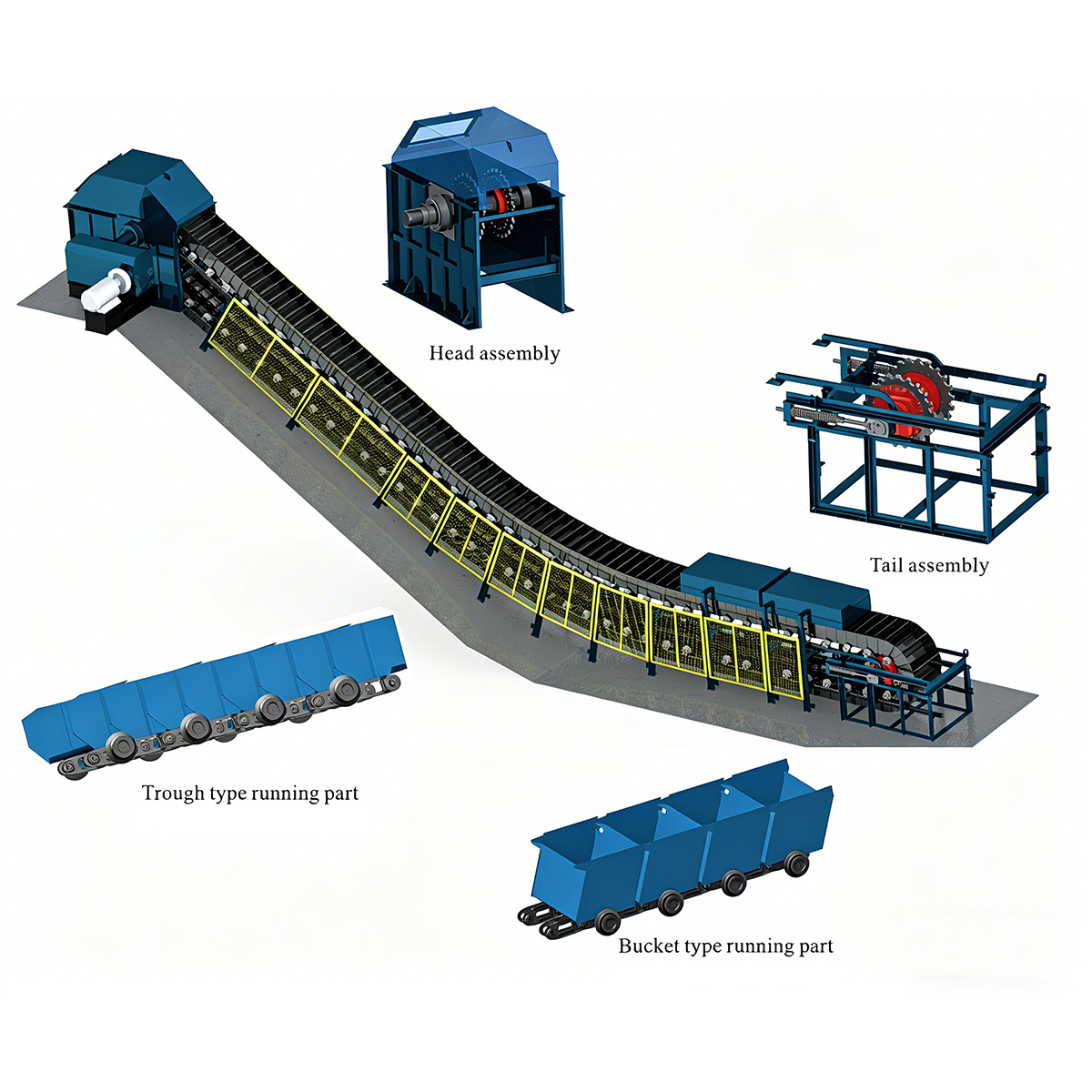

Clinker conveyor is a horizontal and inclined continuous conveying equipment used to convey all kinds of dry granular materials, features top feeding, top reversing and bottom reversing, and is widely used in cement, electric power, metallurgy, chemical industry, coal and other industries. Clinker conveyor has trough type and bucket type to meet the needs of different working conditions. Through 3D + simulation design, finite element analysis and intelligent manufacturing, BSD’s clinker conveyor has reasonable structure,low energy consumption, convenient operation and maintenance, and can respond quickly to accessories and technical transformation projects to ensure timely and quality delivery. The technical indicators of BSD's fully enclosed clinker conveyor, high temperature- resistant clinker conveyor, and new clinker conveyor with a daily output of 10000 tons have reached the world's leading level.
Specification
| Specification and Model | Speed(m/s) | Trough Width (mm) | Chain Pitch(mm) | Capacity Range(t/h) |
| SCD630 | ≤0.3 | 630 | 250 | 120-170 |
| SCD800 | ≤0.3 | 800 | 250 | 150-210 |
| SCD1000 | ≤0.3 | 1000 | 250 | 220-360 |
| SCD1200 | ≤0.3 | 1200 | 250 | 300-480 |
| SCD1400 | ≤0.3 | 1400 | 250 | 400-600 |
| SCD1600 | ≤0.3 | 1600 | 250 | 500-800 |
| SCD1800 | ≤0.3 | 1800 | 250 | 800-1200 |
